Toyota Corsa/tercel EL41 MANIFOLD

EL41-AEKNK (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994

Engine 4EFE

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9009-9208)4EFE,5EFE ; (9208- )5EFE..EL45

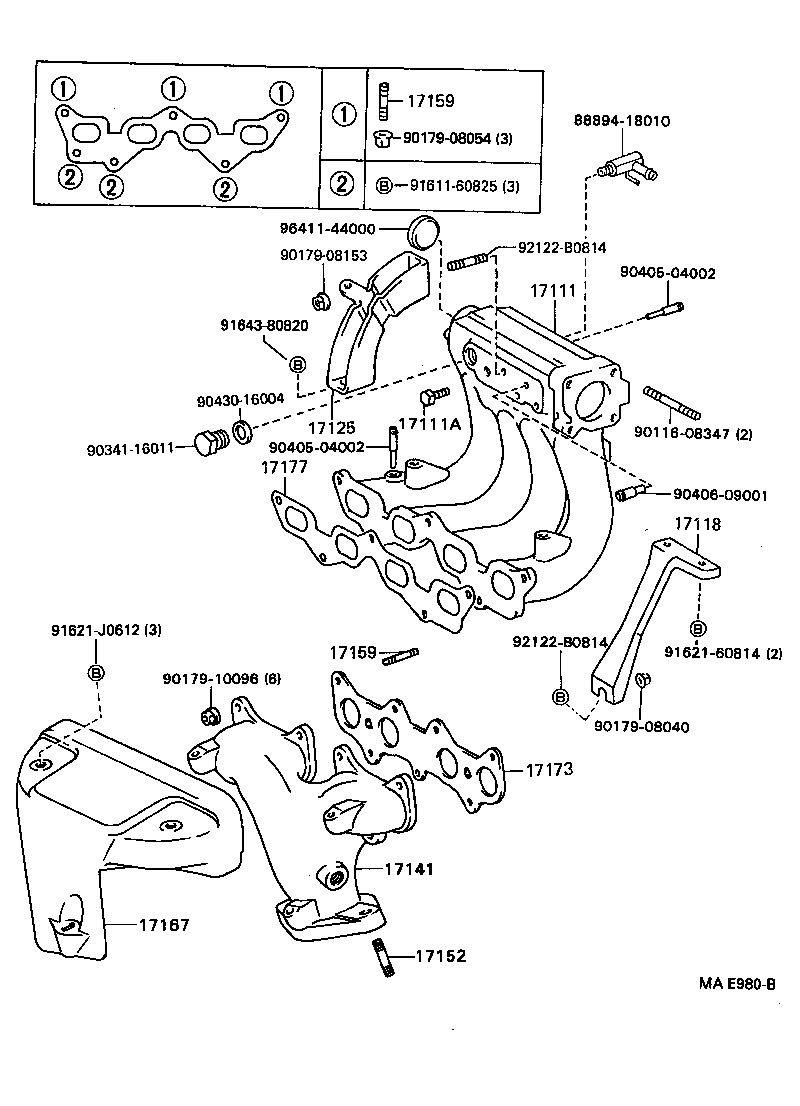

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-11230	4EFE..EL41	09/1990 - 01/1991	1
17101-11231	4EFE..EL41	01/1991 - 09/1994	1
17111A - PLUG, NO.1
90345-51008	4EFE,5EFE..EL4#	09/1990 - 08/1992	1
17118 - STAY, MANIFOLD
17118-11110	4EFE..EL41	09/1990 - 09/1994	1
17125 - STAY, SURGE TANK, NO.1
17125-11030	4EFE,5EFE..EL4#	09/1990 - 09/1994	1
17141 - MANIFOLD, EXHAUST
17141-11170	4EFE,5EFE..EL4#	09/1990 - 08/1992	1
17141-11270	4EFE,5EFE..EL41,43	08/1992 - 09/1994	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017	4EFE,5EFE..EL4# NO.2	09/1990 - 09/1994	2
90116-10179	4EFE,5EFE..EL4# NO.1	09/1990 - 08/1992	4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017	4EFE,5EFE..EL4# NO.2	09/1990 - 09/1994	2
90116-10179	4EFE,5EFE..EL4# NO.1	09/1990 - 08/1992	4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025	4EFE,5EF#..EL4# EXHAUST MANIFOLD	09/1990 - 09/1994	6
92132-60825	4EFE,5EF#..EL4# INTAKE MANIFOLD	09/1990 - 09/1994	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025	4EFE,5EF#..EL4# EXHAUST MANIFOLD	09/1990 - 09/1994	6
92132-60825	4EFE,5EF#..EL4# INTAKE MANIFOLD	09/1990 - 09/1994	3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-11220	4EFE,5EFE..EL4#	09/1990 - 08/1992	1
17167-11210	4EFE,5EFE..EL41,43	08/1992 - 09/1994	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-11040	4EFE..EL41	09/1990 - 09/1994	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-11020	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-11041	4EFE..EL41	09/1990 - 08/1992	1
25576 - GASKET, MANIFOLD CONVERTER
25576-11020	4EFE,5EFE..EL4#	09/1990 - 10/1991	1
25576-15020	4EFE,5EFE..EL4#	10/1991 - 08/1992	1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-11010	5EFE..EL45..5F;4EFE,5EFE..EL41,43	09/1990 - 08/1992	1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-11010	5EFE..EL45..5F;4EFE,5EFE..EL41,43	09/1990 - 08/1992	1
Common parts
88894-18010
90116-08347
90179-08040
90179-08054
90179-08153
90179-10096
90339-09003
90341-16011
90405-04002
90406-09001
90430-16004
90467-14003
91511-60814
91611-60825
91621-60814
91621-B0612
91621-J0612
91643-80820
92122-B0814
92122-B0818
96411-44000

(9208- )4EFE,5EFE..EL41,43

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-11230	4EFE..EL41	09/1990 - 01/1991	1
17101-11231	4EFE..EL41	01/1991 - 09/1994	1
17111A - PLUG, NO.1
90345-51008	4EFE,5EFE..EL4#	09/1990 - 08/1992	1
17118 - STAY, MANIFOLD
17118-11110	4EFE..EL41	09/1990 - 09/1994	1
17125 - STAY, SURGE TANK, NO.1
17125-11030	4EFE,5EFE..EL4#	09/1990 - 09/1994	1
17141 - MANIFOLD, EXHAUST
17141-11170	4EFE,5EFE..EL4#	09/1990 - 08/1992	1
17141-11270	4EFE,5EFE..EL41,43	08/1992 - 09/1994	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017	4EFE,5EFE..EL4# NO.2	09/1990 - 09/1994	2
90116-10179	4EFE,5EFE..EL4# NO.1	09/1990 - 08/1992	4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025	4EFE,5EF#..EL4# EXHAUST MANIFOLD	09/1990 - 09/1994	6
92132-60825	4EFE,5EF#..EL4# INTAKE MANIFOLD	09/1990 - 09/1994	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025	4EFE,5EF#..EL4# EXHAUST MANIFOLD	09/1990 - 09/1994	6
92132-60825	4EFE,5EF#..EL4# INTAKE MANIFOLD	09/1990 - 09/1994	3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-11220	4EFE,5EFE..EL4#	09/1990 - 08/1992	1
17167-11210	4EFE,5EFE..EL41,43	08/1992 - 09/1994	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-11040	4EFE..EL41	09/1990 - 09/1994	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-11020	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
Common parts
88894-18010
90116-08347
90179-08040
90179-08054
90179-08153
90179-10096
90341-16011
90405-04002
90406-09001
90430-16004
91611-60825
91621-60814
91621-J0612
91643-80820
92122-B0814
96411-44000

EL41-AEKNK (1990)

(9009-9208)4EFE,5EFE ; (9208- )5EFE..EL45

(9208- )4EFE,5EFE..EL41,43
