EL41-AEHRK (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )3FC

Click highlighted areas on diagram

A132

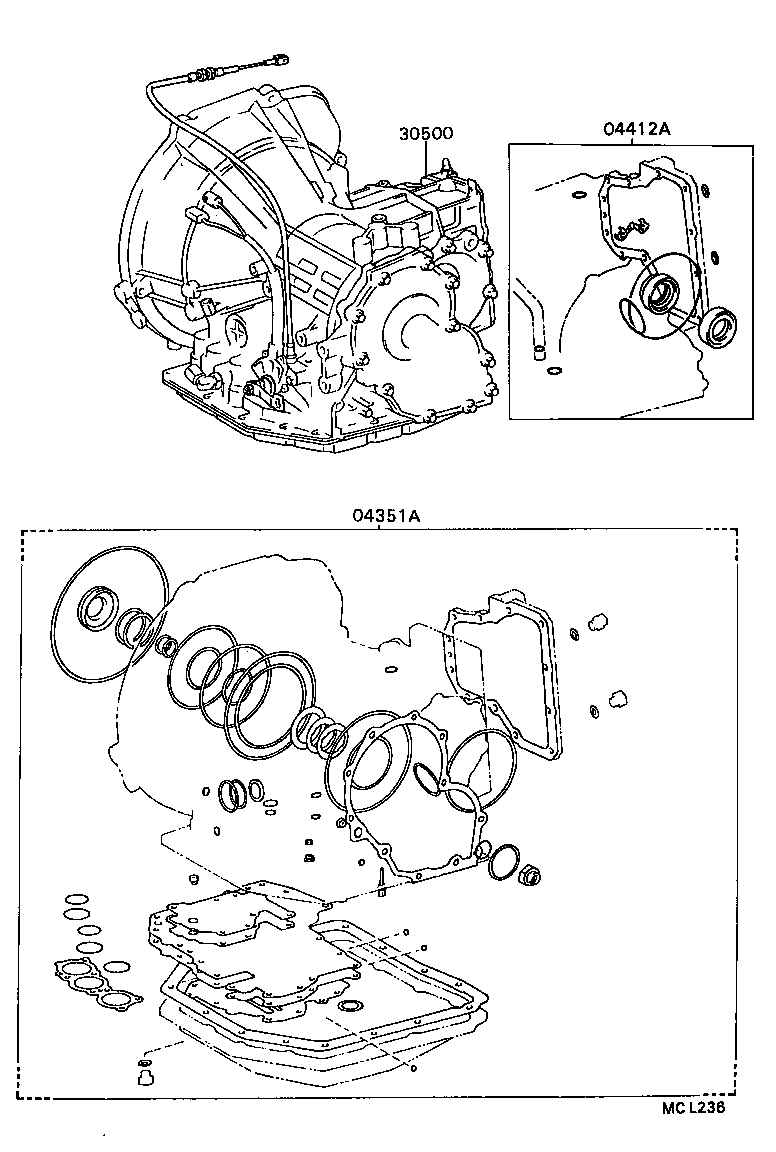

diagram 04351A 04412A 30500
Part # Description Qty Price
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-10030

EL41..3FC

 1
04351-10050

EL41..3FC

 1
04412A - GASKET KIT, DIFFERENTIAL CARRIER(ATM)
04412-10031

EL41..3FC

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
30500-16260

EL41..3FC

 1
30500-16261

EL41..3FC

 1
30500-16340

EL41..3FC

 1
