EL31-ZHKNS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

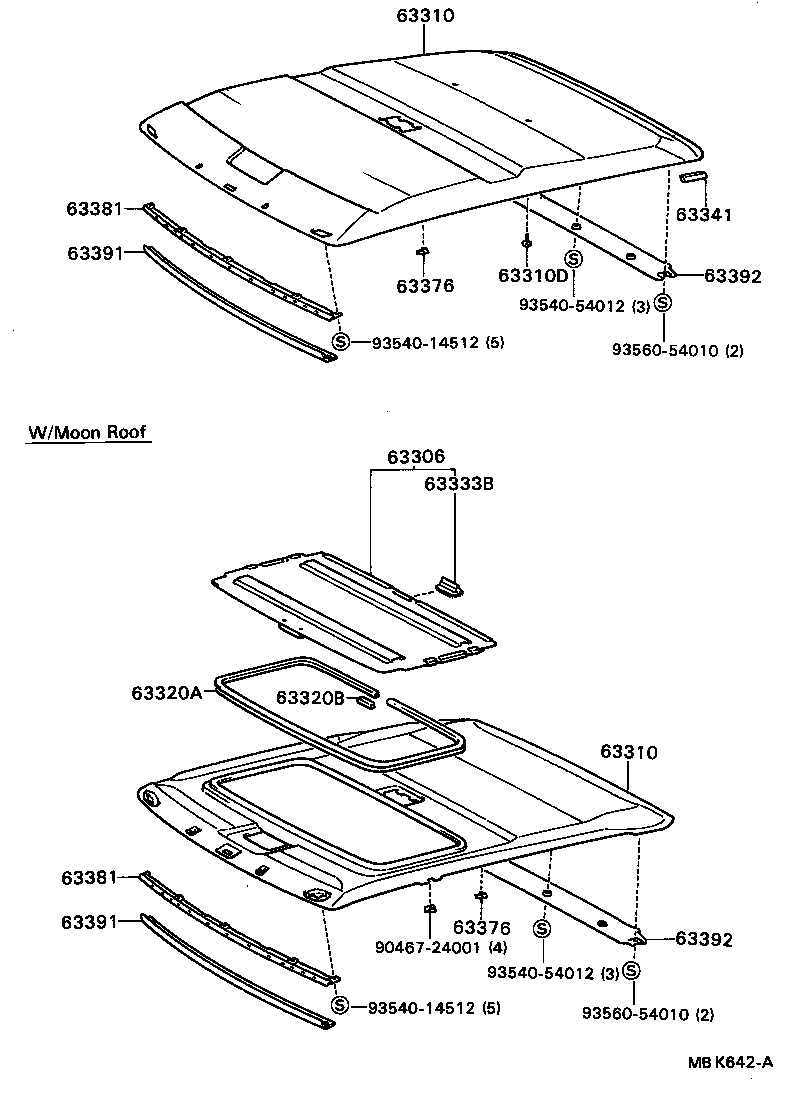

Click highlighted areas on diagram

diagram 63306 63310 63310 63310D 63320A 63320B 63333B 63341 63376 63376 63381 63381 63391 63391 63392 63392 9046724001 9354014512 9354014512 9354054012 9354054012 9356054010 9356054010
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-1621008

EL3#,NL30..5DS

IVORY,IVORY

 1
63310 - HEADLINING ASSY, ROOF
63310-1621008

EL3#,NL30..5DS

IVORY,IVORY

 1
63310D - CLIP, ROOF HEADLINING
90467-0903228

EL3#,NL30..5DS

IVORY,IVORY

 2
63341 - PAD, ROOF SILENCER, NO.1
63343-16010

EL3#,NL30

 2
63376 - CLIP, HEADLINING
63395-12020

EL3#,NL30

 6
63376 - CLIP, HEADLINING
63395-12020

EL3#,NL30

 6
63381 - RETAINER, HEADLINING, FRONT
63381-16030

EL3#,NL30

 1
63381 - RETAINER, HEADLINING, FRONT
63381-16030

EL3#,NL30

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1603005

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

BEIGE,DARK BEIGE,TRIM4#

 1
63391-1603001

EL3#,NL30

BLACK,BLACK,TRIM2#

 1
63391-1603004

EL3#,NL30

BLUE,BLUE,TRIM8#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1603005

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

BEIGE,DARK BEIGE,TRIM4#

 1
63391-1603001

EL3#,NL30

BLACK,BLACK,TRIM2#

 1
63391-1603004

EL3#,NL30

BLUE,BLUE,TRIM8#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-1607001

EL3#,NL30..5DS

BLACK,BLACK,TRIM2#

 1
63392-1607005

EL3#,NL30..5DS

BEIGE,DARK BEIGE,TRIM4#

 1
63392-1607004

EL3#,NL30..5DS

BLUE,BLUE,TRIM8#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-1607001

EL3#,NL30..5DS

BLACK,BLACK,TRIM2#

 1
63392-1607005

EL3#,NL30..5DS

BEIGE,DARK BEIGE,TRIM4#

 1
63392-1607004

EL3#,NL30..5DS

BLUE,BLUE,TRIM8#

 1
Common parts
90467-24001
93540-14512
93540-54012
93560-54010
