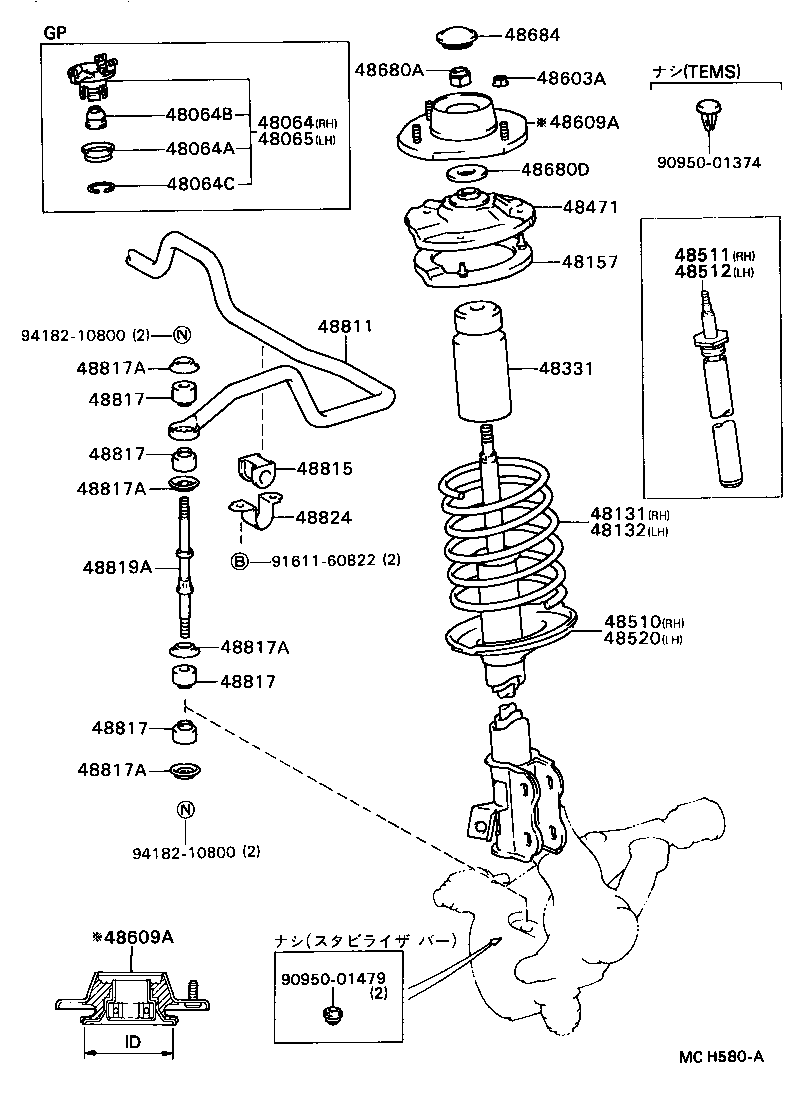

Toyota Corsa/tercel EL31 FRONT SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48064 - COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH
48064-16020	EL31..TBO	05/1988 - 09/1990	1
48064A - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER)
90304-26001	EL31..TBO	05/1988 - 09/1990	2
48064B - GROMMET(FOR FRONT SUSPENSION SUPPORT COVER)
90480-13019	EL31..TBO	05/1988 - 09/1990	2
48064C - RING, SET(FOR FRONT SUSPENSION SUPPORT COVER)
90522-24001	EL31..TBO	05/1988 - 09/1990	2
48065 - COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH
48065-16020	EL31..TBO	05/1988 - 09/1990	1
48131 - SPRING, FRONT COIL, RH
48131-16441	EL31..4FC..TBO	05/1988 - 09/1990	1
48131-16581	EL31..4FC..TBO ｱﾘ(TEMS)	05/1988 - 09/1990	1
48132 - SPRING, FRONT COIL, LH
48131-16581	EL31..4FC..TBO ｱﾘ(TEMS)	05/1988 - 09/1990	1
48131-16441	EL31..4FC..TBO	05/1988 - 09/1990	1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-16030	EL3#,NL30	05/1988 - 09/1990	2
48331 - BUMPER, FRONT SPRING, NO.1
48331-10070	EL3#,NL30	05/1988 - 09/1990	2
48331-16050	EL31..TBO ｱﾘ(TEMS)	05/1988 - 09/1990	2
48471 - SEAT, FRONT SPRING, UPPER
48044-10020	EL3#,NL30	05/1988 - 09/1990	2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-16281	EL3#,NL30	05/1988 - 09/1990	1
48510-16171	EL31..TBO ｱﾘ(TEMS)	05/1988 - 09/1990	1
48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48511-16020	NL30;EL31..GP,SXI,UX,VSI,VU ﾅｼ(TEMS)	05/1988 - 09/1990	1
48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48511-16020	NL30;EL31..GP,SXI,UX,VSI,VU ﾅｼ(TEMS)	05/1988 - 09/1990	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-16061	EL3#,NL30	05/1988 - 09/1990	1
48520-16011	EL31..TBO ｱﾘ(TEMS)	05/1988 - 09/1990	1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90179-08090	EL31..TBO;NL30..4FC	05/1988 - 09/1990	8
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-16060	EL31..TBO ｱﾘ(TEMS)	05/1988 - 12/1988	2
48609-16110	EL31..TBO;NL30..4FC	05/1988 - 09/1990	2
48609-16120	EL31..TBO ｱﾘ(TEMS)	12/1988 - 09/1990	2
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-16060	EL31..TBO ｱﾘ(TEMS)	05/1988 - 12/1988	2
48609-16110	EL31..TBO;NL30..4FC	05/1988 - 09/1990	2
48609-16120	EL31..TBO ｱﾘ(TEMS)	12/1988 - 09/1990	2
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400	EL3#,NL30	05/1988 - 09/1990	2
90179-14029	EL31..TBO ｱﾘ(TEMS)	05/1988 - 09/1990	2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049	EL3#,NL30	05/1988 - 09/1990	2
48684 - COVER, BEARING DUST
48684-10010	EL3#,NL30	05/1988 - 09/1990	2
48811 - BAR, STABILIZER, FRONT
48811-16150	EL31..GP,SXI,UX,VSI,VU	05/1988 - 09/1990	1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-14130	EL31..GP,SXI,UX,VSI,VU	05/1988 - 09/1990	2
48817 - CUSHION, FRONT STABILIZER
48817-30020	EL31..GP,SXI,UX,VSI,VU	05/1988 - 09/1990	8
48817 - CUSHION, FRONT STABILIZER
48817-30020	EL31..GP,SXI,UX,VSI,VU	05/1988 - 09/1990	8
48817 - CUSHION, FRONT STABILIZER
48817-30020	EL31..GP,SXI,UX,VSI,VU	05/1988 - 09/1990	8
48817 - CUSHION, FRONT STABILIZER
48817-30020	EL31..GP,SXI,UX,VSI,VU	05/1988 - 09/1990	8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032	EL31..GP,SXI,UX,VSI,VU	05/1988 - 09/1990	8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032	EL31..GP,SXI,UX,VSI,VU	05/1988 - 09/1990	8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032	EL31..GP,SXI,UX,VSI,VU	05/1988 - 09/1990	8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032	EL31..GP,SXI,UX,VSI,VU	05/1988 - 09/1990	8
48819A - BOLT, FRONT STABILIZER
48819-20030	EL31..GP,SXI,UX,VSI,VU	05/1988 - 09/1990	2
48824 - BRACKET, STABILIZER, FRONT
48824-20040	EL31..GP,SXI,UX,VSI,VU	05/1988 - 09/1990	2
Common parts
90950-01374
90950-01479
91611-60822
94182-10800

EL31-ZGPXT (1988)

(8805- )
