EL31-ZGPXT (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 3ETE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

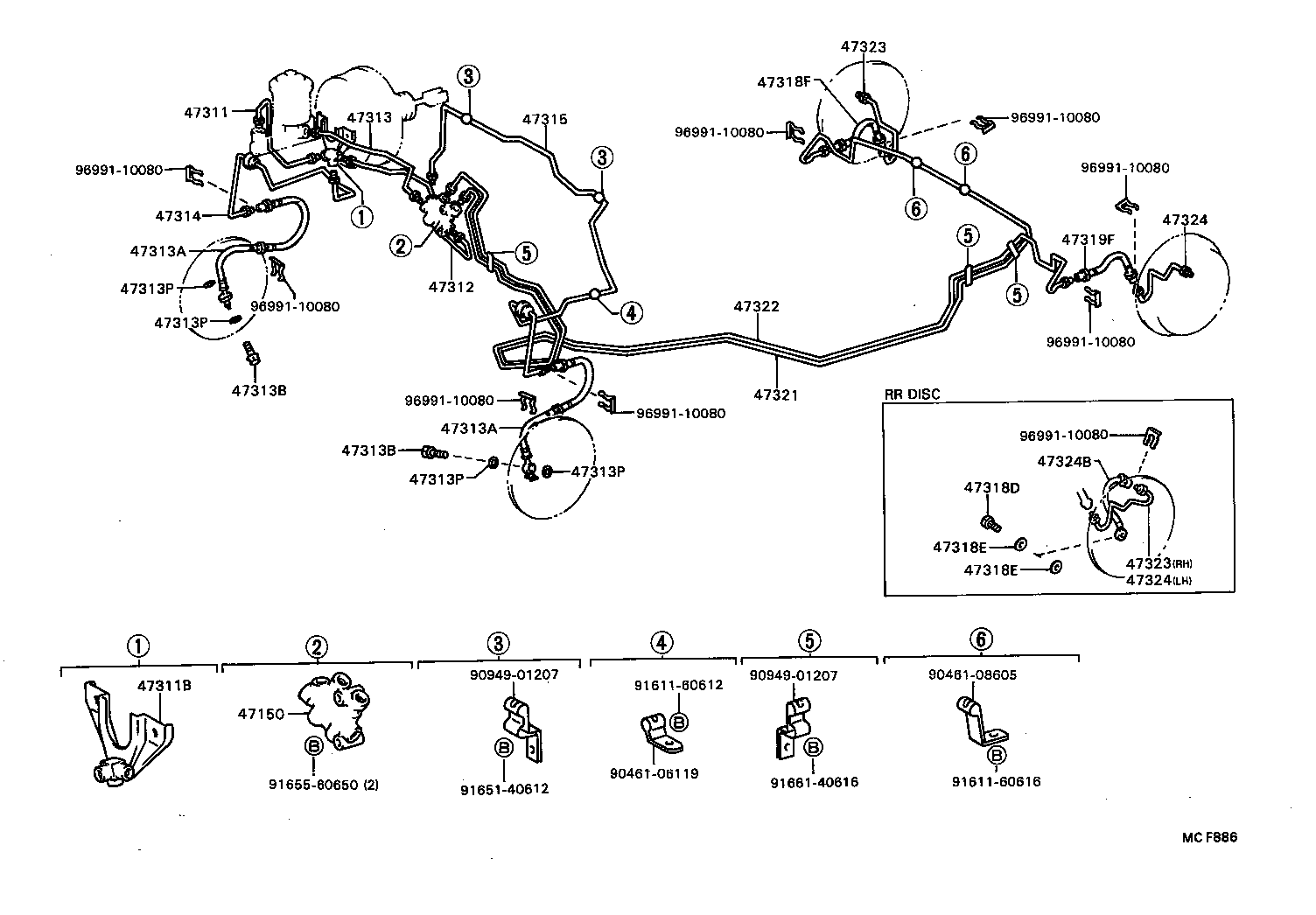

Click highlighted areas on diagram

diagram 47150 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47315 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47323 47324 47324 47324B 9046106119 9046108605 9094901207 9094901207 9161160612 9161160616 9165140612 9165560650 9166140616 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-16070

EL3#,NL30

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-16100

EL31..TBO

 1
47311-16100

EL31..EFI,TBO

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10224

EL31..EFI,TBO

 1
90413-10224

EL31..TBO

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-16070

EL3#,NL30

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-16100

EL31..TBO

 1
47313-16100

EL31..EFI,TBO

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02508

EL3#,NL30

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02508

EL3#,NL30

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

EL3#,NL30

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

EL3#,NL30

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

EL3#,NL30

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

EL3#,NL30

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

EL3#,NL30

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

EL3#,NL30

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-16070

EL3#,NL30

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-16050

EL3#,NL30

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

EL31..TBO

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

EL31..TBO

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

EL31..TBO

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02509

EL3#,NL30

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02509

EL3#,NL30

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-16040

EL3#,NL30

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-16030

EL3#,NL30

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-16110

EL31..TBO

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-16110

EL31..TBO

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-16100

EL31..TBO

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-16100

EL31..TBO

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
90947-02510

EL31..TBO

 2
Common parts
90461-06119
90461-08605
90949-01207
91611-60612
91611-60616
91651-40612
91655-60650
91661-40616
96991-10080
