8714 - HEATING & AIR CONDITIONING - COOLER UNIT

EL31-ZGPSS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988

Engine 3E

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

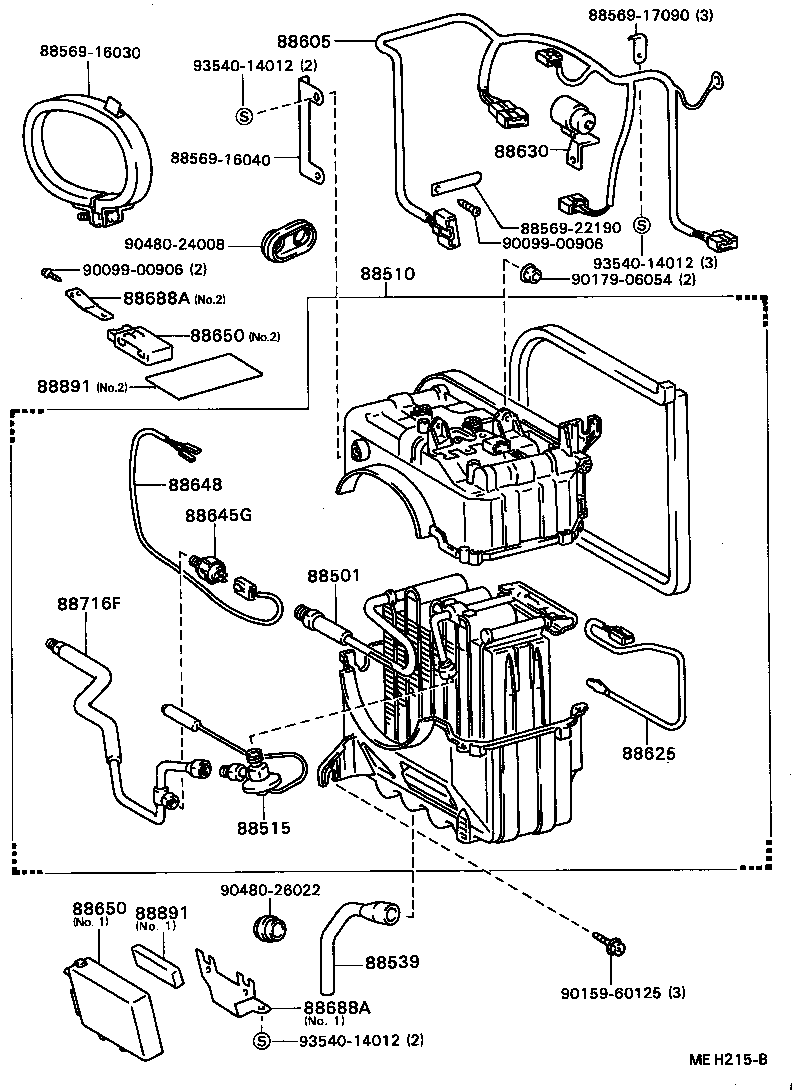

ILLUST NO. 1 OF 2(8605- )EL3#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16080	EL3#,NL30	05/1986 - 05/1988	1
88510 - UNIT ASSY, COOLER
88510-16170	EL3#,NL30	05/1986 - 05/1988	1
88515 - VALVE, COOLER EXPANSION
88515-16040	EL3#,NL30	05/1986 - 05/1988	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-16030	EL3#,NL30	05/1986 - 05/1988	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-16260	EL3#..ATM..CBR W/PS & 2-BUTTON	05/1986 - 05/1988	1
88605-16300	EL3#..ATM..(EX,GX,SX,TX,VC,VL,VS,VX) W/O PS & 2-BUTTON	05/1986 - 05/1988	1
88625 - THERMISTOR, COOLER, NO.1
88625-16080	EL3#,NL30	05/1986 - 05/1988	1
88630 - RELAY ASSY, COOLER
88630-16030	EL3#..ATM..CBR	05/1986 - 05/1988	1
88630-95702	EL31..4FC,5F W/*AAC	05/1986 - 05/1988	1
88630-16060	EL31..ATM	02/1987 - 05/1988	1
88645G - SWITCH, PRESSURE
88645-16020	EL3#,NL30	05/1986 - 05/1988	1
88648 - WIRING, COOLER, NO.1
88648-16120	EL3#,NL30	05/1986 - 05/1988	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16200	EL3#..ATM..CBR NO.1,W/PS & 2-BUTTON	05/1986 - 08/1987	1
88650-16210	EL3#..ATM..(EX,GX,SX,TX,VC,VL,VS,VX) NO.1,W/O PS & 2-BUTTON	05/1986 - 08/1987	1
88650-16290	EL31,NL30..EX,GP,SX,VS,VX NO.3,W/*AAC	05/1986 - 05/1988	1
88650-16340	EL3#..ATM..CBR NO.1,W/PS & 2-BUTTON	08/1987 - 05/1988	1
88650-16270	EL3#..ATM..CBR NO.2	05/1986 - 05/1988	1
88650-16360	EL3#..ATM..(EX,GX,SX,TX,VC,VL,VS,VX) NO.1,W/O PS & 2-BUTTON	08/1987 - 05/1988	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16200	EL3#..ATM..CBR NO.1,W/PS & 2-BUTTON	05/1986 - 08/1987	1
88650-16210	EL3#..ATM..(EX,GX,SX,TX,VC,VL,VS,VX) NO.1,W/O PS & 2-BUTTON	05/1986 - 08/1987	1
88650-16290	EL31,NL30..EX,GP,SX,VS,VX NO.3,W/*AAC	05/1986 - 05/1988	1
88650-16340	EL3#..ATM..CBR NO.1,W/PS & 2-BUTTON	08/1987 - 05/1988	1
88650-16270	EL3#..ATM..CBR NO.2	05/1986 - 05/1988	1
88650-16360	EL3#..ATM..(EX,GX,SX,TX,VC,VL,VS,VX) NO.1,W/O PS & 2-BUTTON	08/1987 - 05/1988	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16280	EL3# NO.2	05/1986 - 02/1987	1
88688-16280	EL3#,NL30 NO.2	02/1987 - 05/1988	1
88688-16270	EL3#,NL30 NO.1,W/O PS	05/1986 - 08/1987	1
88688-10100	EL31,NL30..EX,GP,SX,VS,VX NO.3,W/*AAC	05/1986 - 05/1988	1
88688-16260	EL3#,NL30 NO.1,W/PS	05/1986 - 05/1988	1
88688-16260	EL3#,NL30 NO.1,W/O PS	08/1987 - 05/1988	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16280	EL3# NO.2	05/1986 - 02/1987	1
88688-16280	EL3#,NL30 NO.2	02/1987 - 05/1988	1
88688-16270	EL3#,NL30 NO.1,W/O PS	05/1986 - 08/1987	1
88688-10100	EL31,NL30..EX,GP,SX,VS,VX NO.3,W/*AAC	05/1986 - 05/1988	1
88688-16260	EL3#,NL30 NO.1,W/PS	05/1986 - 05/1988	1
88688-16260	EL3#,NL30 NO.1,W/O PS	08/1987 - 05/1988	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-16290	EL3#,NL30	05/1986 - 05/1988	1
88891 - PACKING (FOR COOLER)
88578-16110	EL3#,NL30 NO.2	02/1987 - 05/1988	1
88578-16110	EL3# NO.2	05/1986 - 02/1987	1
88578-16110	EL31,NL30..EX,GP,SX,VS,VX NO.3,W/*AAC	05/1986 - 05/1988	1
88578-10090	EL3#,NL30 NO.1	05/1986 - 05/1988	1
88891 - PACKING (FOR COOLER)
88578-16110	EL3#,NL30 NO.2	02/1987 - 05/1988	1
88578-16110	EL3# NO.2	05/1986 - 02/1987	1
88578-16110	EL31,NL30..EX,GP,SX,VS,VX NO.3,W/*AAC	05/1986 - 05/1988	1
88578-10090	EL3#,NL30 NO.1	05/1986 - 05/1988	1
Common parts
88569-16030
88569-16040
88569-17090
88569-22190
90099-00906
90159-60125
90179-06054
90480-24008
90480-26022
93540-14012

ILLUST NO. 2 OF 2(8605- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-16350	EL31..4FC..CBR W/O PS & *AAC	05/1986 - 05/1988	1
88605-16330	EL31..4FC..CBR W/PS & *AAC	05/1986 - 05/1988	1
88630 - RELAY ASSY, COOLER
88630-16030	EL3#..ATM..CBR	05/1986 - 05/1988	1
88630-95702	EL31..4FC,5F W/*AAC	05/1986 - 05/1988	1
88630-16060	EL31..ATM	02/1987 - 05/1988	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16200	EL3#..ATM..CBR NO.1,W/PS & 2-BUTTON	05/1986 - 08/1987	1
88650-16210	EL3#..ATM..(EX,GX,SX,TX,VC,VL,VS,VX) NO.1,W/O PS & 2-BUTTON	05/1986 - 08/1987	1
88650-16290	EL31,NL30..EX,GP,SX,VS,VX NO.3,W/*AAC	05/1986 - 05/1988	1
88650-16340	EL3#..ATM..CBR NO.1,W/PS & 2-BUTTON	08/1987 - 05/1988	1
88650-16270	EL3#..ATM..CBR NO.2	05/1986 - 05/1988	1
88650-16360	EL3#..ATM..(EX,GX,SX,TX,VC,VL,VS,VX) NO.1,W/O PS & 2-BUTTON	08/1987 - 05/1988	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16280	EL3# NO.2	05/1986 - 02/1987	1
88688-16280	EL3#,NL30 NO.2	02/1987 - 05/1988	1
88688-16270	EL3#,NL30 NO.1,W/O PS	05/1986 - 08/1987	1
88688-10100	EL31,NL30..EX,GP,SX,VS,VX NO.3,W/*AAC	05/1986 - 05/1988	1
88688-16260	EL3#,NL30 NO.1,W/PS	05/1986 - 05/1988	1
88688-16260	EL3#,NL30 NO.1,W/O PS	08/1987 - 05/1988	1
88891 - PACKING (FOR COOLER)
88578-16110	EL3#,NL30 NO.2	02/1987 - 05/1988	1
88578-16110	EL3# NO.2	05/1986 - 02/1987	1
88578-16110	EL31,NL30..EX,GP,SX,VS,VX NO.3,W/*AAC	05/1986 - 05/1988	1
88578-10090	EL3#,NL30 NO.1	05/1986 - 05/1988	1
Common parts
88569-17070
88899-95A14

ILLUST NO. 1 OF 2(8805-8807)EL3# ; (8805- )NL30 ; (8807- )CBR,TBO

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90159-60125
90179-06054
