EL31-ZGPSS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 3E
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8605- )

Click highlighted areas on diagram

diagram 87103 87104 87105 87107 87130 87138 87150 9011906098 9017906069 9017906115
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-16010

EL3#,NL30

W/O COLD SPEC

 1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-16120

EL3#,NL30

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32010

EL3#,NL30

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-16120

EL3#

 1
87107-16140

EL3#,NL30

COLD SPEC

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-16090

EL3#,NL30

 1
87130-16130

EL3#,NL30

 1
87138 - RESISTOR, HEATER BLOWER
87138-16120

EL3#,NL30

 1
88635-16030

EL31,NL30..EX,GP,SX,VS,VX

W/*AAC

 1
87150 - RADIATOR ASSY, HEATER
87150-16200

EL3#,NL30

COLD SPEC

 1
87150-16180

EL3#

 1
Common parts
90119-06098
90179-06069
90179-06115

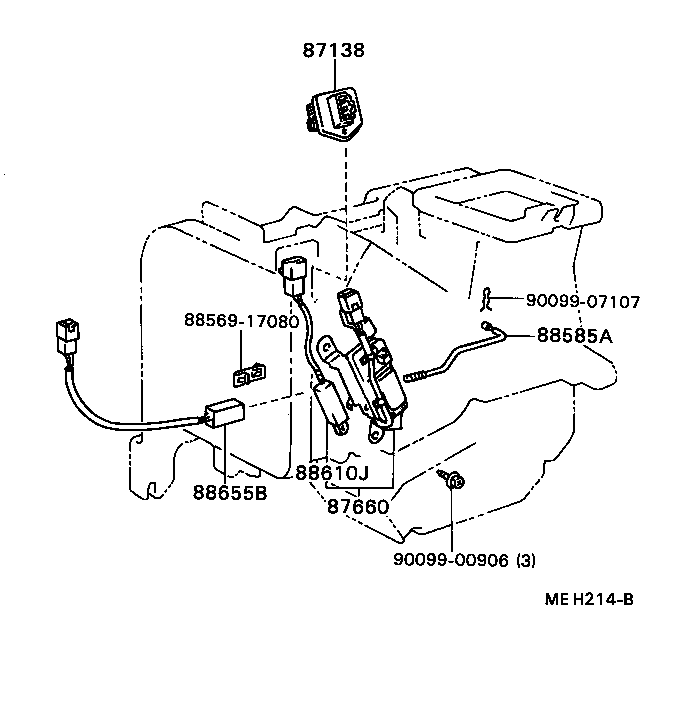

ILLUST NO. 2 OF 2(8605- )

Click highlighted areas on diagram

diagram 87138 87660 8856917080 88585A 88610J 88655B 9009900906 9009907107
Part # Description Qty Price
87138 - RESISTOR, HEATER BLOWER
87138-16120

EL3#,NL30

 1
88635-16030

EL31,NL30..EX,GP,SX,VS,VX

W/*AAC

 1
87660 - SERVO ASSY, AIR CONDITIONER
88660-16020

EL31,NL30..EX,GP,SX,VS,VX

 1
88585A - SHAFT, HEATER AIR DAMPER
88585-16020

EL31,NL30..EX,GP,SX,VS,VX

 1
88610J - SWITCH ASSY, CONTROL
88610-16050

EL31,NL30..EX,GP,SX,VS,VX

 1
88655B - SWITCH, WATER TEMPERATURE
88655-22020

EL31,NL30..EX,GP,SX,VS,VX

 1
Common parts
88569-17080
90099-00906
90099-07107
