EL31-ZGMXT (1986)
Toyota Corsa/Tercel

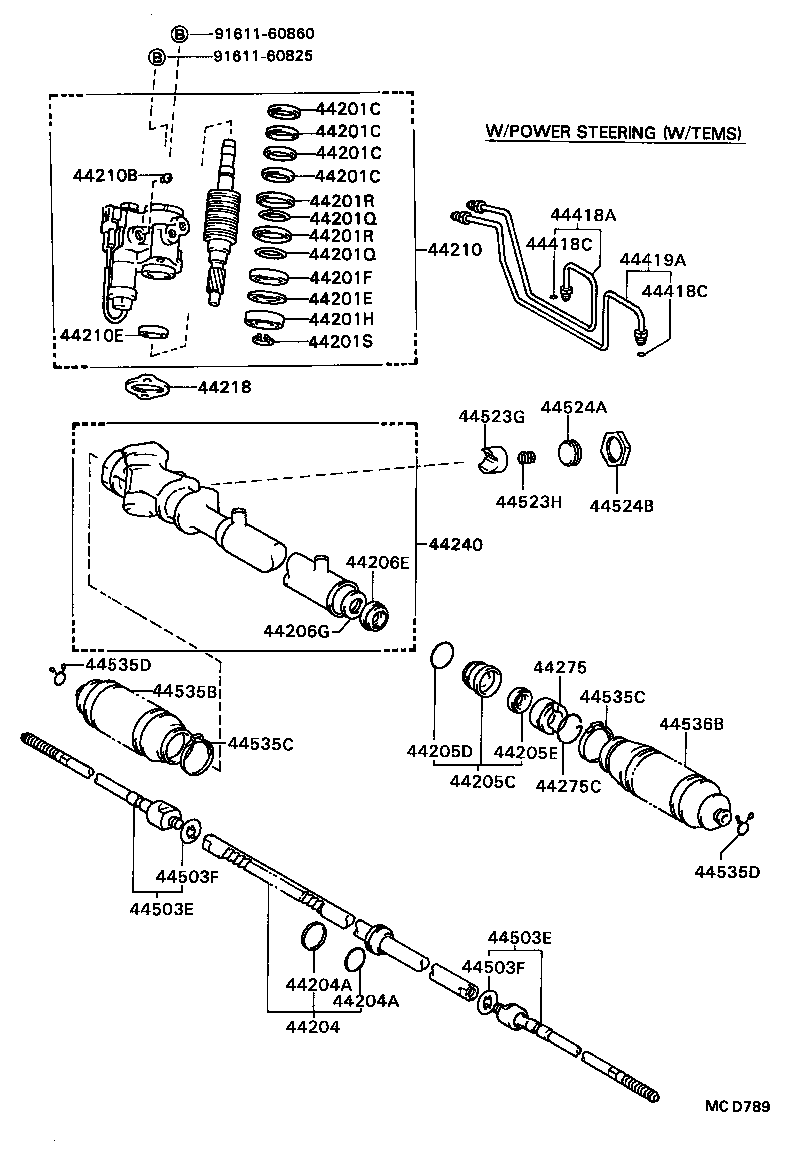

ILLUST NO. 2 OF 2(8609- )TBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
EL31..TBO |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
EL31..TBO |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
EL31..TBO |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
EL31..TBO |
4 | ||
| 44201E - WASHER, PLATE(FOR POWER STEERING CONTROL VALVE) | ||||
| 90201-30004 |
EL31..TBO |
1 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-26003 |
EL31..TBO |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90363-20026 |
EL31..TBO |
1 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-32004 |
EL31..TBO |
2 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-32004 |
EL31..TBO |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-35011 |
EL31..TBO |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-35011 |
EL31..TBO |
2 | ||
| 44201S - RING, SNAP(FOR POWER STEERING CONTROL VALVE) | ||||
| 96150-02000 |
EL31..TBO |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-16030 |
EL3#,NL30 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-29005 |
EL3#,NL30 INNER |
1 | ||
| 90562-34002 |
EL3#,NL30 OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-29005 |
EL3#,NL30 INNER |
1 | ||
| 90562-34002 |
EL3#,NL30 OUTER |
1 | ||
| 44205C - BUSH SUB-ASSY, POWER STEERING RACK | ||||
| 44205-16020 |
EL3#,NL30 |
1 | ||
| 44205D - RING, O(FOR POWER STEERING RACK BUSH) | ||||
| 90301-33004 |
EL3#,NL30 |
1 | ||
| 44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH) | ||||
| 90311-22007 |
EL3#,NL30 OD=34 |
1 | ||
| 90311-22014 |
EL3#,NL30 OD=35 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90311-22011 |
EL3#,NL30 |
1 | ||
| 90311-22013 |
EL3#,NL30 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-23011 |
EL3#,NL30 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-16050 |
EL31..TBO |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-05007 |
EL31..TBO OD=7.69-7.71 |
1 | ||
| 90410-05006 |
EL31..TBO OD=7.71-7.73 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19005 |
EL31..TBO |
1 | ||
| 44218 - GASKET, VALVE HOUSING | ||||
| 44218-16010 |
EL31..TBO |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-16030 |
EL3# |
1 | ||
| 44240-16050 |
EL31..TBO W/TEMS |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-16020 |
EL3#,NL30 |
1 | ||
| 44275C - WIRE(FOR CYLINDER END STOPPER) | ||||
| 90580-18001 |
EL3#,NL30 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-16030 |
EL3#,NL30 |
1 | ||
| 44418-16050 |
EL31..TBO W/TEMS |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
EL3#,NL30 |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
EL3#,NL30 |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-16050 |
EL31..TBO W/TEMS |
1 | ||
| 44419-16030 |
EL3#,NL30 |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19116 |
EL3#,NL30 |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19116 |
EL3#,NL30 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-12002 |
EL3#,NL30 |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-12002 |
EL3#,NL30 |
1 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-10030 |
EL3#,NL30 |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23075 |
EL3#,NL30 |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-10030 |
EL3#,NL30 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-30002 |
EL3#,NL30 |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-16020 |
EL3#,NL30 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-56001 |
EL3#,NL30 BOOT NO.1 |
1 | ||
| 90460-48002 |
EL3#,NL30 BOOT NO.2 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-56001 |
EL3#,NL30 BOOT NO.1 |
1 | ||
| 90460-48002 |
EL3#,NL30 BOOT NO.2 |
1 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
EL3#,NL30 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
EL3#,NL30 |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45536-10070 |
EL3#,NL30 |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
| 91611-60860 | ||||

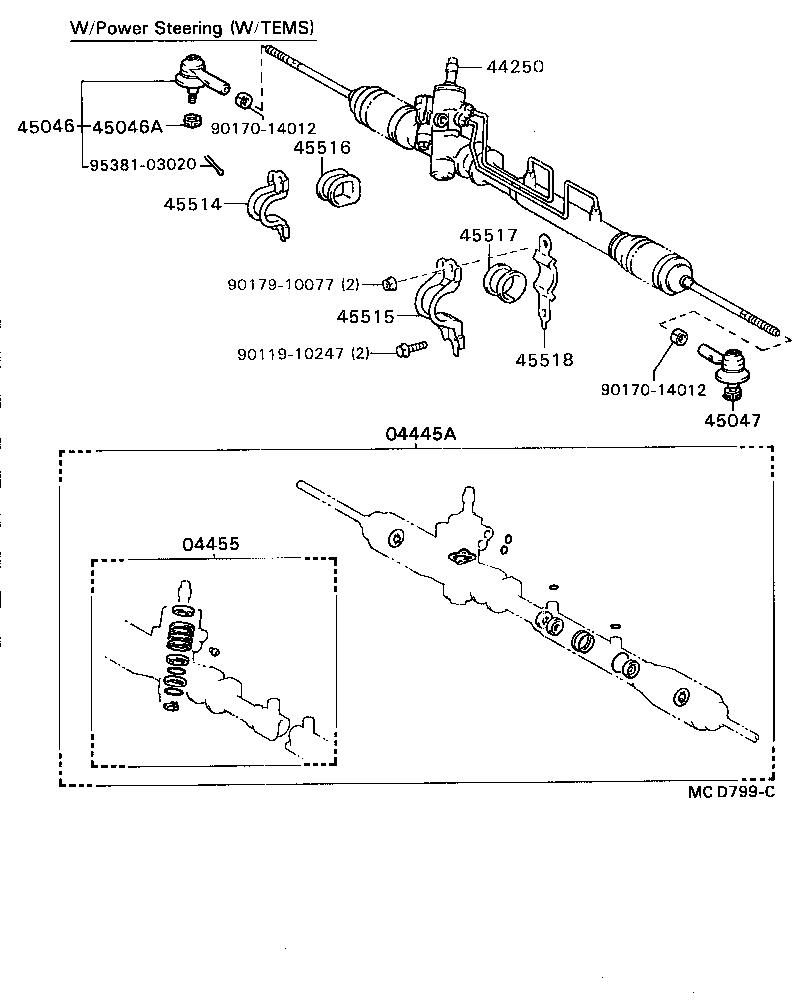

ILLUST NO. 1 OF 2(8609- )TBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-16030 |
EL3#,NL30 |
1 | ||
| 04445-16040 |
EL31..TBO W/TEMS |
1 | ||
| 04445-16032 |
EL3#,NL30 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-16030 |
EL3#,NL30 |
1 | ||
| 04455-16020 |
EL31..TBO W/TEMS |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-16090 |
EL31..TBO |
1 | ||
| 44250-16071 |
EL31..TBO W/TEMS |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
EL3#,NL30 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
EL3#,NL30 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
EL3#,NL30 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-16030 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| 45514-16040 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-16040 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| 45515-16050 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-10040 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| 45516-16040 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-16040 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45517-10040 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-16030 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45518-16020 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| Common parts | ||||
| 90119-10247 | ||||
| 90170-14012 | ||||
| 90179-10077 | ||||
| 95381-03020 | ||||
