EL31-ZGMXT (1986)

Toyota Corsa/Tercel

Production Sep 1986 - May 1988
Engine 3ETE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )3ETE

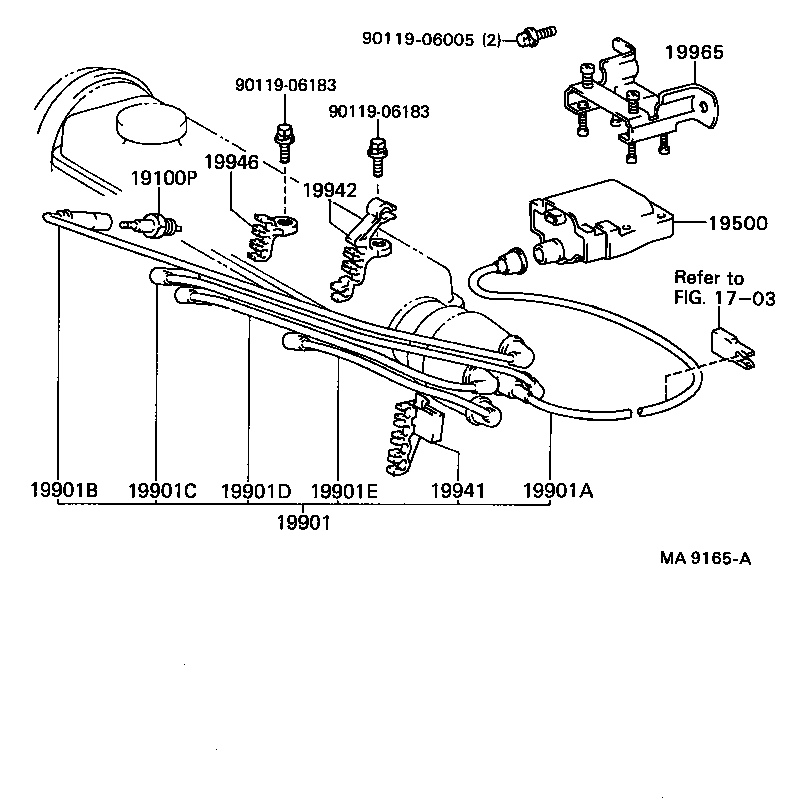

Click highlighted areas on diagram

diagram 1703 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19941 19942 19946 19965 9011906005 9011906183 9011906183
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01147

3ETE..EL31

P20R8,P20R8(DENSO)

 4
90919-01094

2E,3E..EL3#

W16EX−U11,W16EX-U11(DENSO)

 4
90919-01148

3ETE..EL31

BPR6EP8,BPR6EP8(NGK)

 4
19500 - COIL ASSY, IGNITION
90919-02175

3ETE..EL31

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22188

3E..EL31

 1
90919-21389

3ETE..EL31

 1
19901A - CORD, COIL RESISTIVE
90919-13278

3ETE..EL31

 1
90919-13263

3ETE..EL31

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12607

2E,3E..EL3#

YAZAKI

 1
90919-12606

2E,3E..EL3#

SUMITOMO

 1
90919-12606

2E,3E..EL3#

 1
90919-12696

3ETE..EL31

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12569

2E,3E..EL3#

SUMITOMO

 1
90919-12573

2E,3E..EL3#

YAZAKI

 1
90919-12697

3ETE..EL31

 1
90919-12569

2E,3E..EL3#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12574

2E,3E..EL3#

YAZAKI

 1
90919-12698

3ETE..EL31

 1
90919-12570

2E,3E..EL3#

SUMITOMO

 1
90919-12570

2E,3E..EL3#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12661

3ETE..EL31

 1
90919-12694

3E..EL31

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00358

2E,3E..EL3#

 1
90464-00440

3ETE..EL31

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00372

2E,3E..EL3#

 1
90929-01138

3ETE..EL31

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00404

2E,3E..EL3#

 1
90464-00439

3ETE..EL31

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03103

3ETE..EL31

 1
Common parts
90119-06005
90119-06183
Linked diagrams
1703
