EL31-ZGMSS (1986)
Toyota Corsa/Tercel
(8605- )GP,GX,SX,TX,VC,VL,VS

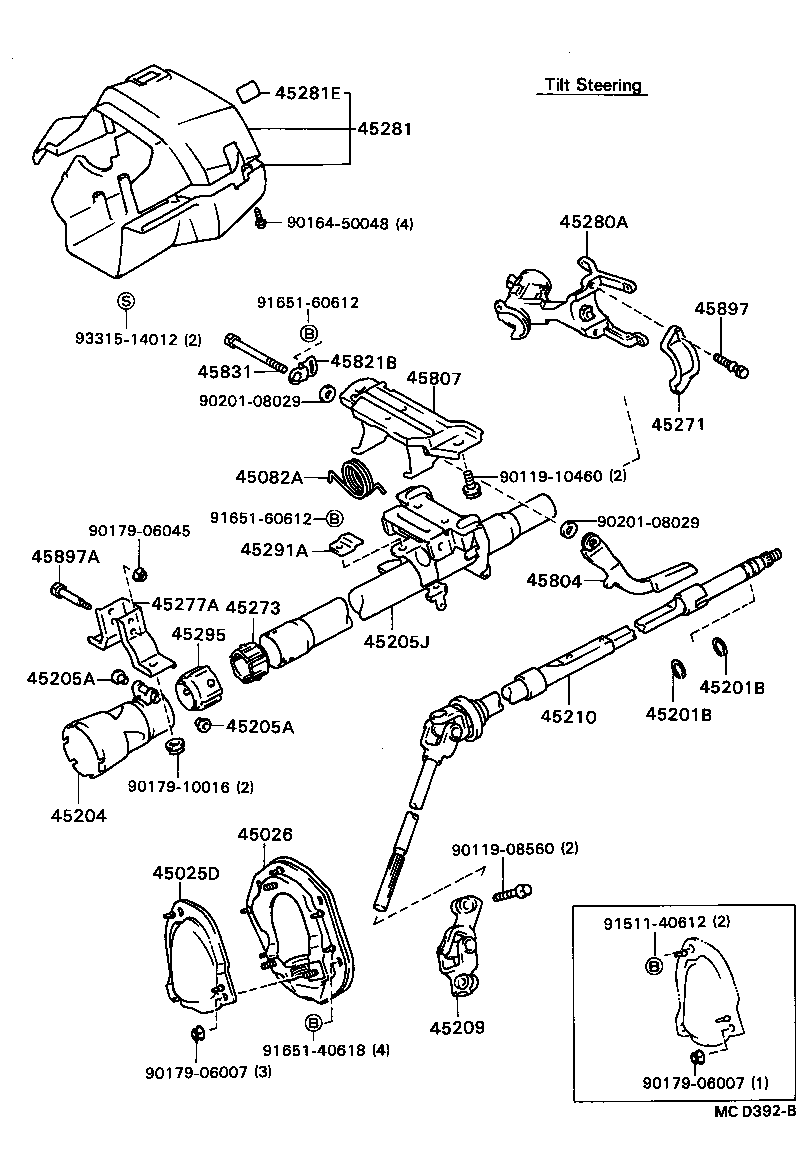

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-16090 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45025-16070 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| 45025-16091 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-16032 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45026-16010 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| 45026-16030 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
EL3#,NL30 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17042 |
EL3#,NL30 厚さ=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
EL3#,NL30 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17042 |
EL3#,NL30 厚さ=1.20,T=1.2 |
2 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-16020 |
EL31..4FC,5F W/*TIS |
1 | ||
| 45204-16010 |
EL3#,NL30..GX,SX,TX,VC,VL,VS |
1 | ||
| 45204-16011 |
EL3#,NL30..GP,GX,SX,TX,VC,VL,VS |
1 | ||
| 45204-16030 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX W/*TIS & POWER STEERING |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-16060 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX W/*TIS |
1 | ||
| 45205-16050 |
EL3#,NL30..GP,GX,SX,TX,VC,VL,VS |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16020 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45209-10020 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-16080 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| 45210-16100 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
EL3#,NL30 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
EL3#,NL30 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-16040 |
EL3#,NL30 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1690504 |
EL3#,NL30..GP,GX,SX,TX,VC,VL,VS BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1690501 |
EL3#,NL30..GP,GX,SX,TX,VC,VL,VS BLACK,NEW BLACK,TRIM2# |
1 | ||
| 45286-1690701 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX BLACK,W/TILT STEERING,NEW BLACK,TRIM2# |
1 | ||
| 45286-1690704 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX BLUE,W/TILT STEERING,BLUE,TRIM8# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-12010 |
EL3#,NL30 |
1 | ||
| 45295 - BUSH, STEERING COLUMN TUBE | ||||
| 45295-16010 |
EL3#,NL30 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EL3#,NL30 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-06007 | ||||
| 90179-10016 | ||||
| 91511-40612 | ||||
| 91651-40618 | ||||
| 91665-61025 | ||||
| 93315-14012 | ||||
(8605- )CUT,EX,GP,SOP,SX,VS,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-16090 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45025-16070 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| 45025-16091 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-16032 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45026-16010 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| 45026-16030 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90508-32029 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
EL3#,NL30 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17042 |
EL3#,NL30 厚さ=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
EL3#,NL30 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17042 |
EL3#,NL30 厚さ=1.20,T=1.2 |
2 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-16020 |
EL31..4FC,5F W/*TIS |
1 | ||
| 45204-16010 |
EL3#,NL30..GX,SX,TX,VC,VL,VS |
1 | ||
| 45204-16011 |
EL3#,NL30..GP,GX,SX,TX,VC,VL,VS |
1 | ||
| 45204-16030 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX W/*TIS & POWER STEERING |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-08034 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX |
2 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-08034 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX |
2 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-16060 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX W/*TIS |
1 | ||
| 45205-16050 |
EL3#,NL30..GP,GX,SX,TX,VC,VL,VS |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16020 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45209-10020 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-16080 |
EL3#..EX,GP,GX,SX,TX,VC,VL,VS,VX |
1 | ||
| 45210-16100 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
EL3#,NL30 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
EL3#,NL30 |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-16020 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-16040 |
EL3#,NL30 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1690504 |
EL3#,NL30..GP,GX,SX,TX,VC,VL,VS BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1690501 |
EL3#,NL30..GP,GX,SX,TX,VC,VL,VS BLACK,NEW BLACK,TRIM2# |
1 | ||
| 45286-1690701 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX BLACK,W/TILT STEERING,NEW BLACK,TRIM2# |
1 | ||
| 45286-1690704 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX BLUE,W/TILT STEERING,BLUE,TRIM8# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-12010 |
EL3#,NL30 |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-16010 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX |
1 | ||
| 45295 - BUSH, STEERING COLUMN TUBE | ||||
| 45295-16010 |
EL3#,NL30 |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-16030 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-16030 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-16010 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-16020 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EL3#,NL30 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-16010 |
EL3#..CUT,EX,GP,SOP,SX,VS,VX |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10460 | ||||
| 90164-50048 | ||||
| 90179-06007 | ||||
| 90179-06045 | ||||
| 90179-10016 | ||||
| 90201-08029 | ||||
| 91511-40612 | ||||
| 91651-40618 | ||||
| 91651-60612 | ||||
| 93315-14012 | ||||
