EL31-ZGMSS (1986)
Toyota Corsa/Tercel
Production
May 1986
-
May 1988
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8605- )

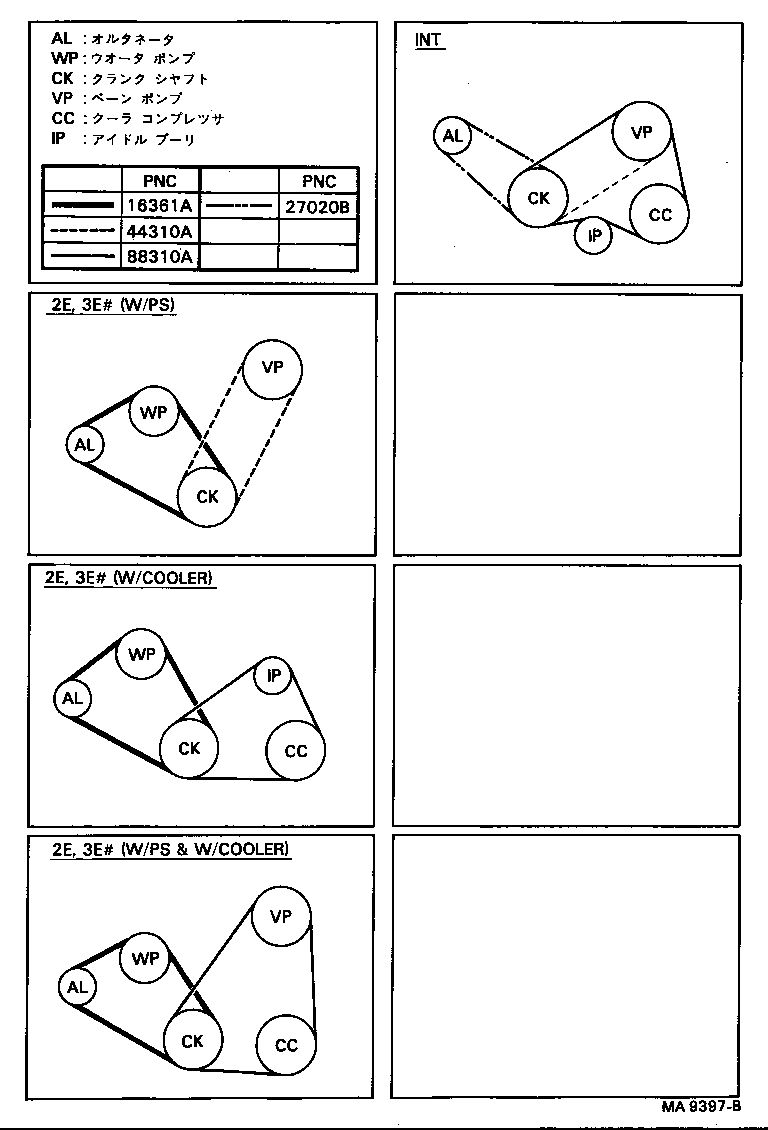

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02135 |
2E,3E#..EL3# |
1 | ||
| 90916-02135 |
2E,3E..EL3# |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99365-50950 |
EL31 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99365-51120 |
EL31..CBR W/PS |
1 | ||
| 99365-50890 |
EL31..CBR W/O PS |
1 | ||
| 99365-50890 |
EL31 W/O PS |
1 | ||
| 99365-51130 |
EL31..CBR W/PS |
1 | ||
| 99365-01130 |
EL31..CBR W/PS |
1 | ||
| 99365-50910 |
EL31..CBR 長さ=910,W/O PS |
1 | ||
