EL31-ZGMSE (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 3EE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

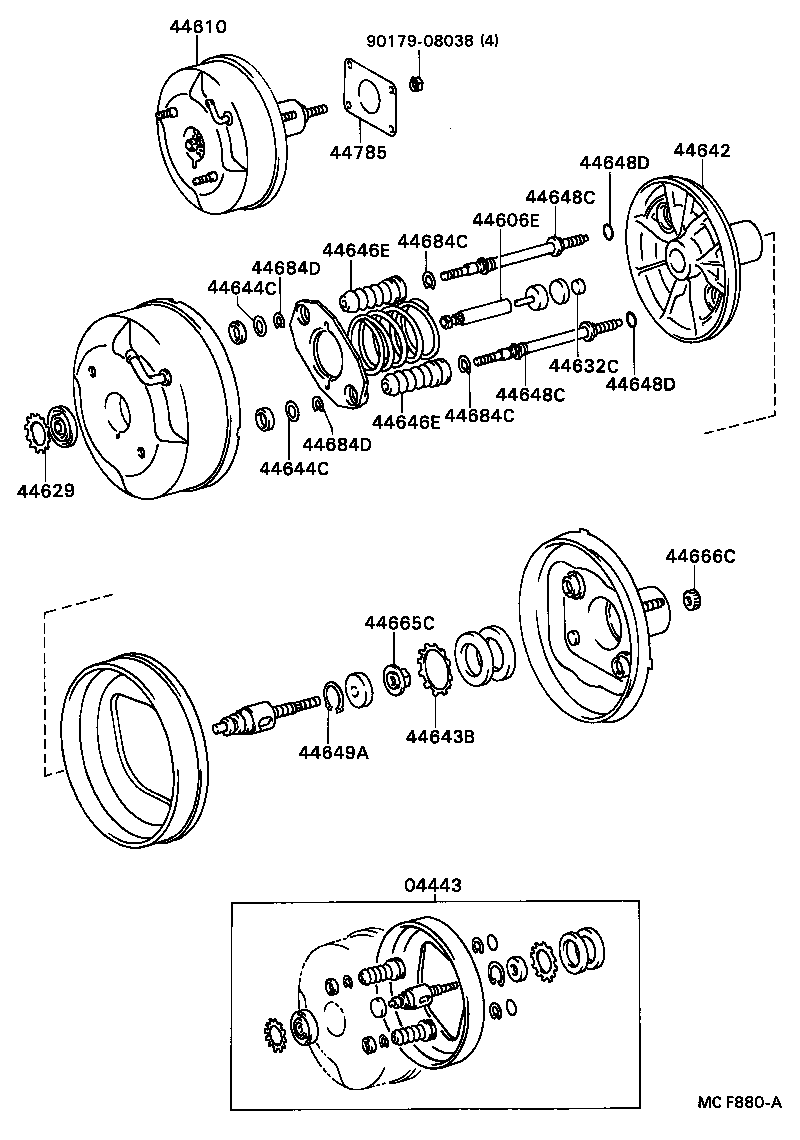

ILLUST NO. 1 OF 2(8805-8903)EFI ; (8805- )CBR,TD

Click highlighted areas on diagram

diagram 04443 44606E 44610 44610 44621V 44629 44635B 44642 44785 44785 8401 9017908038 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-16210

EL31..EFI

 1
04443-16200

EL31..EFI

 1
04443-16230

EL31..EFI

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

EL3#,NL30..CBR,EFI,TD

 1
44606-16210

EL31..EFI,TBO

 1
44610 - BOOSTER ASSY, BRAKE
44610-16200

EL3#..CBR,EFI

 1
44610-16220

EL31..EFI

 1
44610-16190

EL3#..CBR,EFI

 1
44610 - BOOSTER ASSY, BRAKE
44610-16200

EL3#..CBR,EFI

 1
44610-16220

EL31..EFI

 1
44610-16190

EL3#..CBR,EFI

 1
44621V - SEAL, BOOSTER BODY
44621-28120

EL3#,NL30..CBR,EFI,TD

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

EL3#,NL30..CBR,EFI,TD

 1
44628-12410

EL31..EFI,TBO

 1
44635B - KEY, VALVE STOPPER
44635-16160

EL3#,NL30..CBR,EFI,TD

 1
44642 - PISTON, BRAKE BOOSTER
44642-16180

EL3#,NL30..CBR,EFI,TD

 1
44642-16220

EL31..EFI

 1
44785 - GASKET, BRAKE BOOSTER
44785-16010

EL3#,NL30

 1
44785 - GASKET, BRAKE BOOSTER
44785-16010

EL3#,NL30

 1
Common parts
90179-08038
Linked diagrams
8401

ILLUST NO. 1 OF 2(8805-8903)EFI ; (8805- )CBR

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44683A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-16210

EL31..EFI

 1
04443-16200

EL31..EFI

 1
04443-16230

EL31..EFI

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-10080

EL3#..CBR,EFI

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

EL3#..CBR,EFI

 1
44610 - BOOSTER ASSY, BRAKE
44610-16200

EL3#..CBR,EFI

 1
44610-16220

EL31..EFI

 1
44610-16190

EL3#..CBR,EFI

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28190

EL3#..CBR,EFI

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-16060

EL3#..CBR,EFI

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

EL3#..CBR,EFI

 1
44673A - BODY, BOOSTER VALVE
44673-28191

EL3#..CBR,EFI

 1
44683A - LOCK, CONNECTOR
44683-28190

EL3#..CBR,EFI

 1
44785 - GASKET, BRAKE BOOSTER
44785-16010

EL3#,NL30

 1
Common parts
90179-08038

ILLUST NO. 1 OF 2(8805- )TBO ; (8903- )EFI

Click highlighted areas on diagram

diagram 04443 44606E 44610 44629 44632C 44642 44643B 44644C 44644C 44646E 44646E 44648C 44648C 44648D 44648D 44649A 44665C 44666C 44684C 44684C 44684D 44684D 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-16210

EL31..EFI

 1
04443-16200

EL31..EFI

 1
04443-16230

EL31..EFI

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

EL3#,NL30..CBR,EFI,TD

 1
44606-16210

EL31..EFI,TBO

 1
44610 - BOOSTER ASSY, BRAKE
44610-16200

EL3#..CBR,EFI

 1
44610-16220

EL31..EFI

 1
44610-16190

EL3#..CBR,EFI

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

EL3#,NL30..CBR,EFI,TD

 1
44628-12410

EL31..EFI,TBO

 1
44632C - PLATE, REACTION
44632-16220

EL31..EFI

 1
44642 - PISTON, BRAKE BOOSTER
44642-16180

EL3#,NL30..CBR,EFI,TD

 1
44642-16220

EL31..EFI

 1
44643B - RETAINER, BOOSTER SEAL
44643-12410

EL31..EFI,TBO

 1
44644C - PLATE, BOOSTER BODY TIE ROD SEAL
44644-12410

EL31..EFI,TBO

 2
44644C - PLATE, BOOSTER BODY TIE ROD SEAL
44644-12410

EL31..EFI,TBO

 2
44646E - BOOT, BOOSTER BODY TIE ROD
44646-12410

EL31..EFI,TBO

 2
44646E - BOOT, BOOSTER BODY TIE ROD
44646-12410

EL31..EFI,TBO

 2
44648C - ROD, BOOSTER BODY TIE
44648-16210

EL31..EFI,TBO

 2
44648C - ROD, BOOSTER BODY TIE
44648-16210

EL31..EFI,TBO

 2
44648D - RING, O(FOR BOOSTER BODY TIE ROD)
96712-24015

EL31..EFI,TBO

 2
44648D - RING, O(FOR BOOSTER BODY TIE ROD)
96712-24015

EL31..EFI,TBO

 2
44649A - RING, BOOSTER PISTON STOP
44649-12410

EL31..EFI,TBO

 1
44665C - NUT, BOOSTER OPERATING ROD ADJUST
44665-12410

EL31..EFI,TBO

 1
44666C - NUT, BOOSTER OPERATING ROD LOCK
44666-12410

EL31..EFI,TBO

 1
44684C - RING, SNAP, NO.1(FOR BOOSTER BODY TIE ROD)
44684-12410

EL31..EFI,TBO

 2
44684C - RING, SNAP, NO.1(FOR BOOSTER BODY TIE ROD)
44684-12410

EL31..EFI,TBO

 2
44684D - RING, SNAP, NO.2(FOR BOOSTER BODY TIE ROD)
96150-01000

EL31..EFI,TBO

 2
44684D - RING, SNAP, NO.2(FOR BOOSTER BODY TIE ROD)
96150-01000

EL31..EFI,TBO

 2
44785 - GASKET, BRAKE BOOSTER
44785-16010

EL3#,NL30

 1
Common parts
90179-08038

ILLUST NO. 2 OF 2(8805- )EL3#

Click highlighted areas on diagram

diagram 44730 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44730F 44730T 44763A 44772B 44772B 44773F 44774 9011906052 9011906052
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EL31..EFI,TBO

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EL31..EFI,TBO

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90407-51002

EL31..EFI,TBO

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90407-51002

EL31..EFI,TBO

 1
44730T - UNION(FOR VACUUM CHECK VALVE)
90404-52024

EL31..EFI,TBO

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-16090

EL31..EFI,TBO

 1
44772-16060

NL30..5F;EL3#..CBR,EFI

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-16090

EL31..EFI,TBO

 1
44772-16060

NL30..5F;EL3#..CBR,EFI

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-16060

EL31..EFI,TBO

 1
Common parts
90119-06052
