EL31-ZGMMS (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

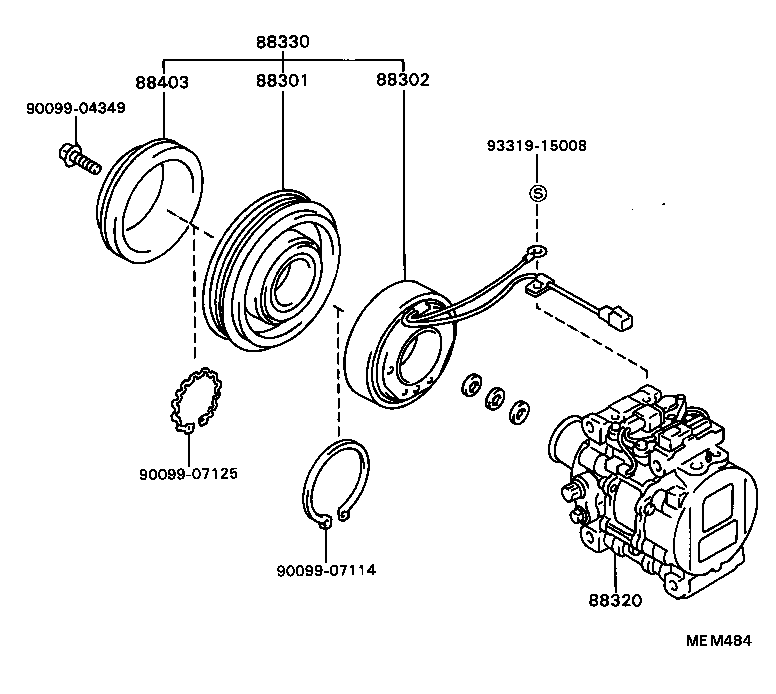

ILLUST NO. 1 OF 2(8805- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330 88403 9009904349 9009907114 9009907125 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-20090

EL31..SXI,UX,VSI,VU

 1
88412-20090

EL31..UX,VU

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-16021

EL31..SXI,UX,VSI,VU

 1
88411-60030

EL31..UX,VU

 1
88320 - COMPRESSOR ASSY, COOLER
88320-16090

EL31..SXI,UX,VSI,VU

ｱﾘ(ﾊﾟﾜｰ ｽﾃｱﾘﾝｸﾞ)

 1
88320-16100

EL31..SXI,UX,VSI,VU

 1
88330 - CLUTCH ASSY, MAGNET
88410-16070

EL31..SXI,UX,VSI,VU

 1
88410-10180

EL31..UX,VU

 1
88410-16070

EL31..UX,VU

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

EL31..SXI,UX,VSI,VU

 1
Common parts
90099-04349
90099-07114
90099-07125
93319-15008

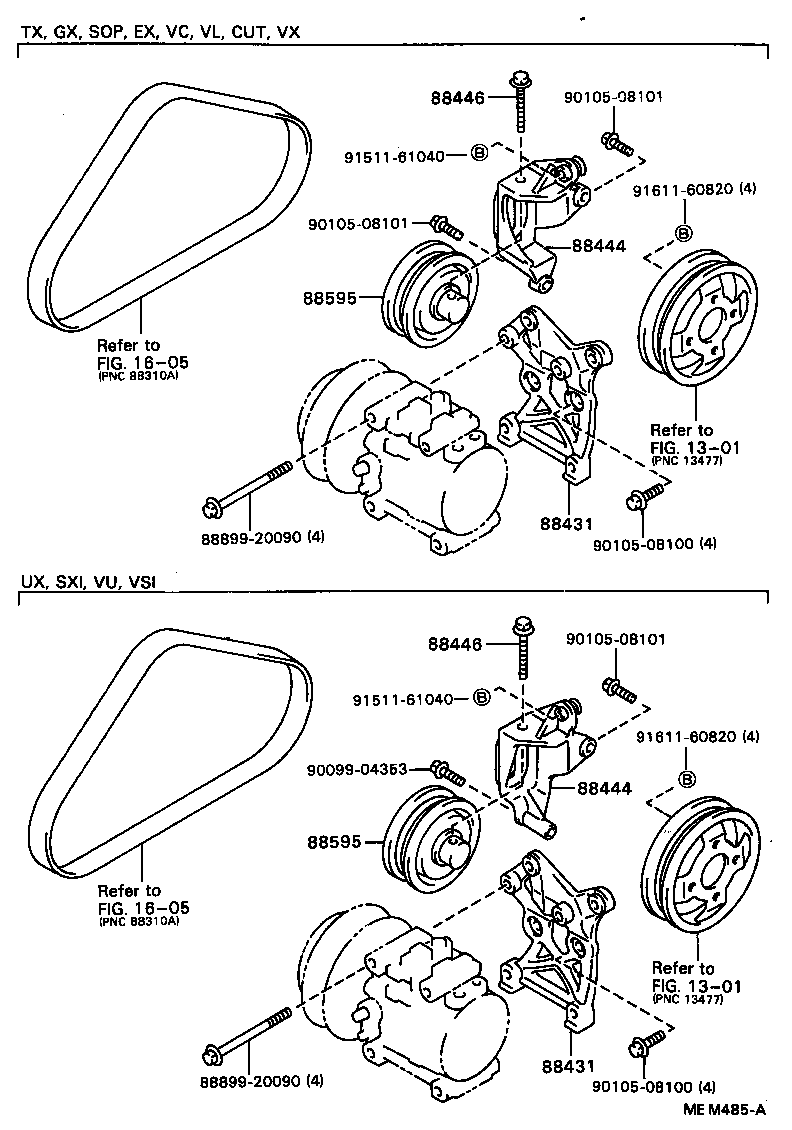

ILLUST NO. 2 OF 2(8805- )CBR,EFI

Click highlighted areas on diagram

diagram 1301 1301 1605 1605 88431 88431 88444 88444 88446 88446 88595 88595 8889920090 8889920090 9009904353 9010508100 9010508100 9010508101 9010508101 9010508101 9151161040 9151161040 9161160820 9161160820
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-16060

EL31..SXI,UX,VSI,VU

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-16060

EL31..SXI,UX,VSI,VU

 1
88444 - BRACKET, IDLE PULLEY
88444-16030

EL31..GP,SXI,UX,VSI,VU

 1
88444 - BRACKET, IDLE PULLEY
88444-16030

EL31..GP,SXI,UX,VSI,VU

 1
88446 - BOLT, IDLE PULLEY
88446-12030

EL31..GP,SXI,UX,VSI,VU

 1
88446 - BOLT, IDLE PULLEY
88446-12030

EL31..GP,SXI,UX,VSI,VU

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12170

EL31..GP,SXI,UX,VSI,VU

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12170

EL31..GP,SXI,UX,VSI,VU

 1
Common parts
88899-20090
90099-04353
90105-08100
90105-08101
91511-61040
91611-60820
Linked diagrams
1301
1605
