EL31-LHPES (1986)
Toyota Corsa/Tercel
(8605- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031A - STAY SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55031-16010 |
EL3#,NL30 |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1601005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55301-1601001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
1 | ||
| 55301-1601004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-16010 |
EL3#,NL30 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-16030 |
EL3#,NL30 |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-16050 |
EL3#,NL30 |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-16050 |
EL3#,NL30 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-1609004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 55404-1609005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55404-1609001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-1601004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 55402-1601005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55402-1601001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-1603005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55403-1603001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
1 | ||
| 55403-1603004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-16091 |
EL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX |
1 | ||
| 55405-16090 |
EL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-1607004 |
EL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1607001 |
EL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX W/TILT STEERING,BLACK,BLACK,TRIM2# |
1 | ||
| 55432-1607005 |
EL3#,NL30..CUT,EX,SOP,VX W/TILT STEERING,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1604001 |
EL3#,NL30 BLACK,NEW BLACK,TRIM2# |
1 | ||
| 55560-1604005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55560-1604004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1606005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55550-1606004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 55550-1606001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
EL3#,NL30 |
3 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16040 |
EL3#,NL30 100 X 180 |
1 | ||
| 55521-16030 |
EL3#,NL30 50 X 180 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
EL3#,NL30 50 X 180 |
1 | ||
| 55521-16040 |
EL3#,NL30 100 X 180 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-16030 |
EL3#,NL30 |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55524-16030 |
EL3#,NL30 |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-16020 |
EL3#,NL30 |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-16030 |
EL3#,NL30..CUT,EX,SOP,SX,VS,VX |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-1601001 |
EL3# BLACK,BLACK,TRIM2# |
1 | ||
| 55548-1601005 |
EL3#..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55548-1601004 |
EL3# BLUE,BLUE,TRIM8# |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-16040 |
EL3#,NL30 |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-12040 |
EL3#,NL30 |
1 | ||
| 55601C - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-1603004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 55601-1603001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
1 | ||
| 55601-1603005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-16010 |
EL3#,NL30 |
1 | ||
| 55604-19015 |
EL3#,NL30 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1602004 |
EL3#,NL30 BLUE |
1 | ||
| 55670-1602005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX DARK BEIGE |
1 | ||
| 55670-1602001 |
EL3#,NL30 BLACK |
1 | ||
| 55951 - NOZZLE, DEFROSTER, FRONT | ||||
| 55951-16060 |
EL3#,NL30 |
1 | ||
| 55967A - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-16020 |
EL3#,NL30 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06022 | ||||
| 90119-06120 | ||||
| 90119-06159 | ||||
| 90151-40005 | ||||
| 90167-50013 | ||||
| 90167-50028 | ||||
| 90167-55028 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-14010 | ||||
| 90467-15015 | ||||
| 90468-04095 | ||||
| 90468-04106 | ||||
| 93510-15014 | ||||
| 93566-54514 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||

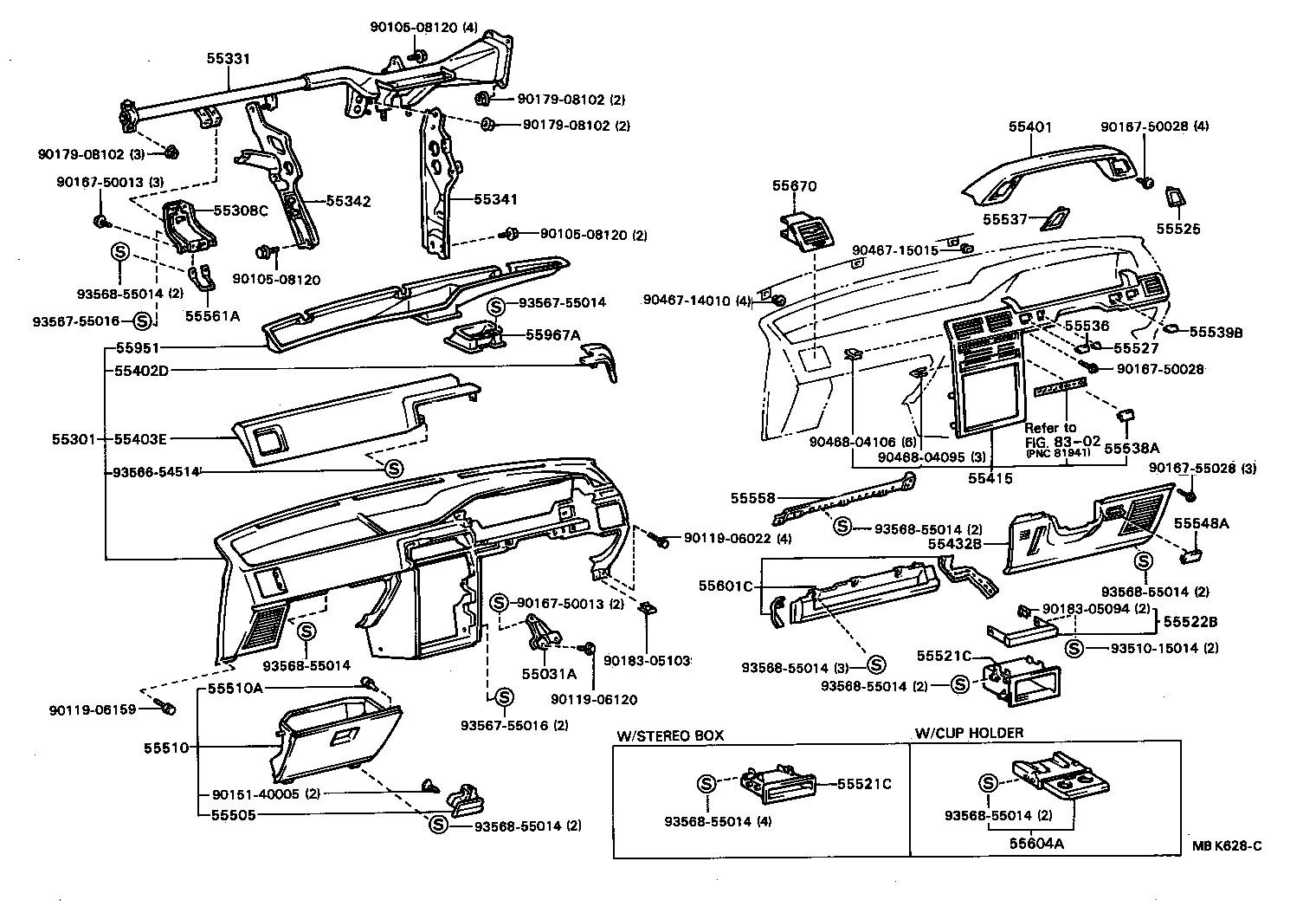

| Linked diagrams | ||||
| 8302 | ||||
