EL31-LHMES (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )EL3#

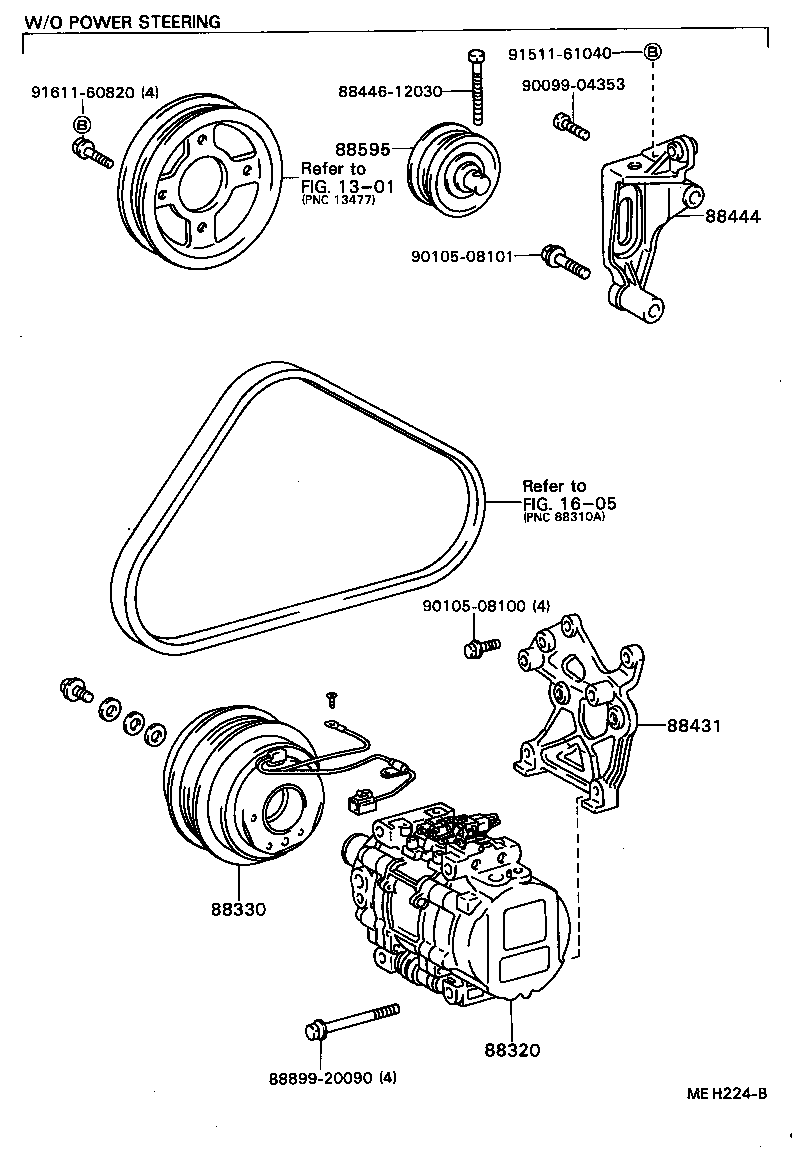

Click highlighted areas on diagram

diagram 1301 1605 88320 88330 88431 88444 8844612030 88595 8889920090 9009904353 9010508100 9010508101 9151161040 9161160820
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-16080

EL3#,NL30

W/PS & COOLER SW.=2-BUTTON

 1
88320-16070

EL3#,NL30

W/O PS & COOLER SW.=2-BUTTON

 1
88320-16071

EL3#,NL30

W/O PS & COOLER SW.=2-BUTTON

 1
88320-16071

EL3#..EX,GX,SX,TX,VC,VL,VS,VX

W/O PS & COOLER SW.=2-BUTTON

 1
88320-16081

EL3#,NL30

W/PS & COOLER SW.=2-BUTTON

 1
88330 - CLUTCH ASSY, MAGNET
88410-16020

EL3#

 1
88410-16021

EL3#..CBR

 1
88410-16021

EL3#

 1
88410-16050

EL3#..CBR

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-16040

EL3#

 1
88444 - BRACKET, IDLE PULLEY
88444-16030

EL31

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12170

EL3#

 1
Common parts
88446-12030
88899-20090
90099-04353
90105-08100
90105-08101
91511-61040
91611-60820
Linked diagrams
1301
1605
