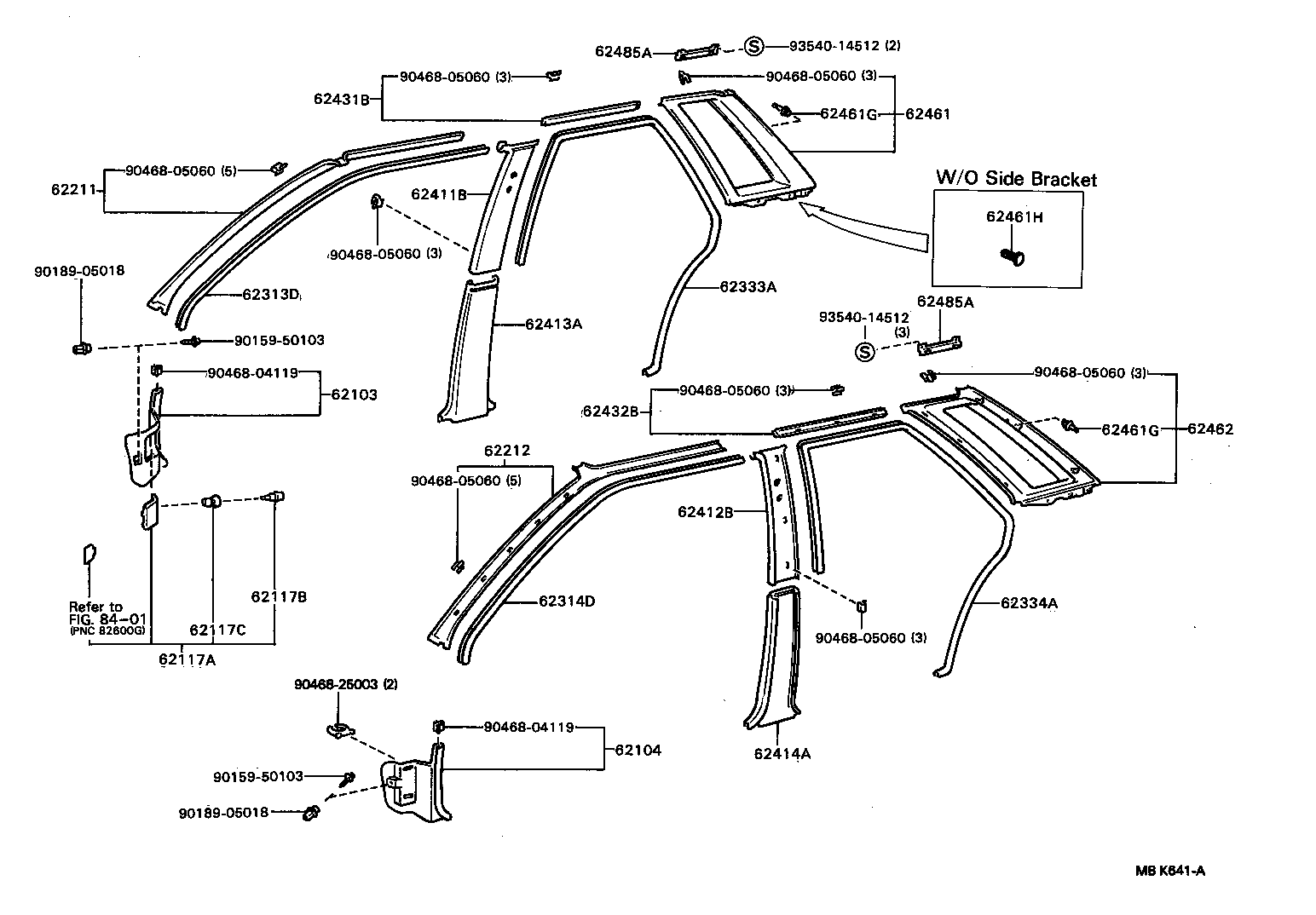

EL31-LHMES (1986)
Toyota Corsa/Tercel
(8605- )5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH | ||||
| 62111-1605005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62111-1605004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 62111-1605001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
1 | ||
| 62111-1607001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
1 | ||
| 62111-1607004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 62111-1607005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH | ||||
| 62112-1605005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62112-1605004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 62112-1605001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 55545-1610001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
1 | ||
| 55545-1610004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 55545-1610005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-0501511 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
1 | ||
| 90467-0501515 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 90467-0501524 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-0803115 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 90467-0803111 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
1 | ||
| 90467-0803124 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-1604005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62211-1604004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62211-1604001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-1604001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62212-1604005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62212-1604004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-1607005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62313-1607004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62313-1607001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-1607001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62313-1607005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62313-1607004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-1605001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62333-1605005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62333-1605004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62333-1605004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62333-1605001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62333-1605005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-1610005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62411-1610001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62411-1610004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-1610004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62412-1610005 |
EL3#,NL30..5DS BEIGE,DARK BLUE,TRIM4# |
1 | ||
| 62412-1610001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-1602005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62413-1602004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62413-1602001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-1602001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62414-1602005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62414-1602004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62431B - GARNISH, ROOF SIDE RAIL, NO.1 RH | ||||
| 62431-1601005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62431-1601004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62431-1601001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62432B - GARNISH, ROOF SIDE RAIL, NO.1 LH | ||||
| 62432-1601005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62432-1601004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62432-1601001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62461 - GARNISH, ROOF SIDE TRIM, RH | ||||
| 62471-1616004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62471-1616005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62471-1616001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62461G - RETAINER, DOOR TRIM | ||||
| 67771-14040 |
EL3#,NL30 |
8 | ||
| 62461G - RETAINER, DOOR TRIM | ||||
| 67771-14040 |
EL3#,NL30 |
8 | ||
| 62462 - GARNISH, ROOF SIDE TRIM, LH | ||||
| 62472-1616001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62472-1616005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 62472-1616004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62485A - RETAINER, ROOF SIDE INNER GARNISH | ||||
| 62485-16020 |
EL3#,NL30..5DS |
2 | ||
| 62485A - RETAINER, ROOF SIDE INNER GARNISH | ||||
| 62485-16020 |
EL3#,NL30..5DS |
2 | ||
| Common parts | ||||
| 90159-50103 | ||||
| 90189-05018 | ||||
| 90468-04119 | ||||
| 90468-05060 | ||||
| 90468-25003 | ||||
| 93540-14512 | ||||
| Linked diagrams | ||||
| 8401 | ||||
