EL31-LHMES (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )CUT,EX,GX,SOP,TX,VC,VL,VX

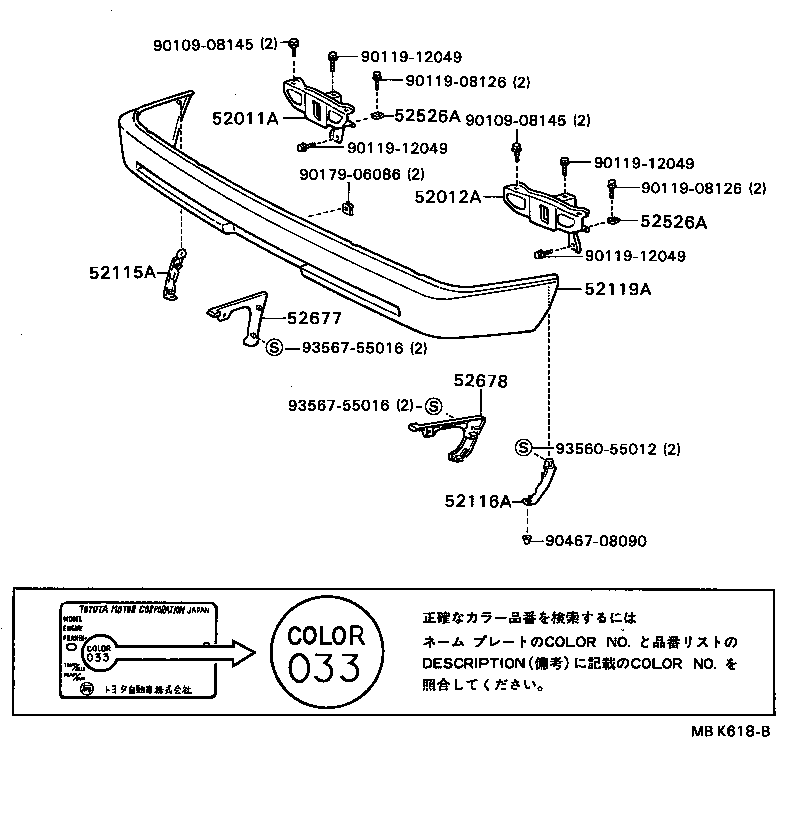

Click highlighted areas on diagram

diagram 52011A 52012A 52115A 52116A 52119A 52526A 52526A 52677 52678 9010908145 9010908145 9011908126 9011908126 9011912049 9011912049 9011912049 9011912049 9017906086 9046708090 9356055012 9356755016 9356755016
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-16090

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-16080

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-16080

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-16070

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
52119A - COVER, FRONT BUMPER
52119-1621002

EL31..EX,VX

RED,RED,3E6

 1
52119-1621004

EL31..EX,VX

BLUE-M,BLUE METALLIC,8D7

 1
52119-1621005

EL31..EX,VX

BEIGE-M,BEIGE METALLIC,4G8

 1
52119-1621003

EL31..EX,VX

WARM GRAY-M,WARM GRAY METALLIC,165

 1
52119-1621008

EL31..EX,VX

WHITE,WHITE,041

 1
52119-1621013

EL31,NL30..EX,VX

SILVER-M,SILVER METALLIC,23B

 1
52119-1621003

EL3#,NL30..CUT,EX,SOP,VX

WARM GRAY-M,WARM GRAY METALLIC,165

 1
52119-1621005

EL3#,NL30..CUT,EX,SOP,VX

BEIGE-M,BEIGE METALLIC,4G8

 1
52119-1621004

EL3#,NL30..CUT,EX,SOP,VX

BLUE-M,BLUE METALLIC,8D7

 1
52119-1621002

EL3#,NL30..CUT,EX,SOP,VX

RED,RED,3E6

 1
52119-1621008

EL3#,NL30..CUT,EX,SOP,VX

WHITE,WHITE,041

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

EL3#,NL30

 4
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

EL3#,NL30

 4
52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52677-16020

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH
52678-16020

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
Common parts
90109-08145
90119-08126
90119-12049
90179-06086
90467-08090
93560-55012
93567-55016
