EL31-LGPXT (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 3ETE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

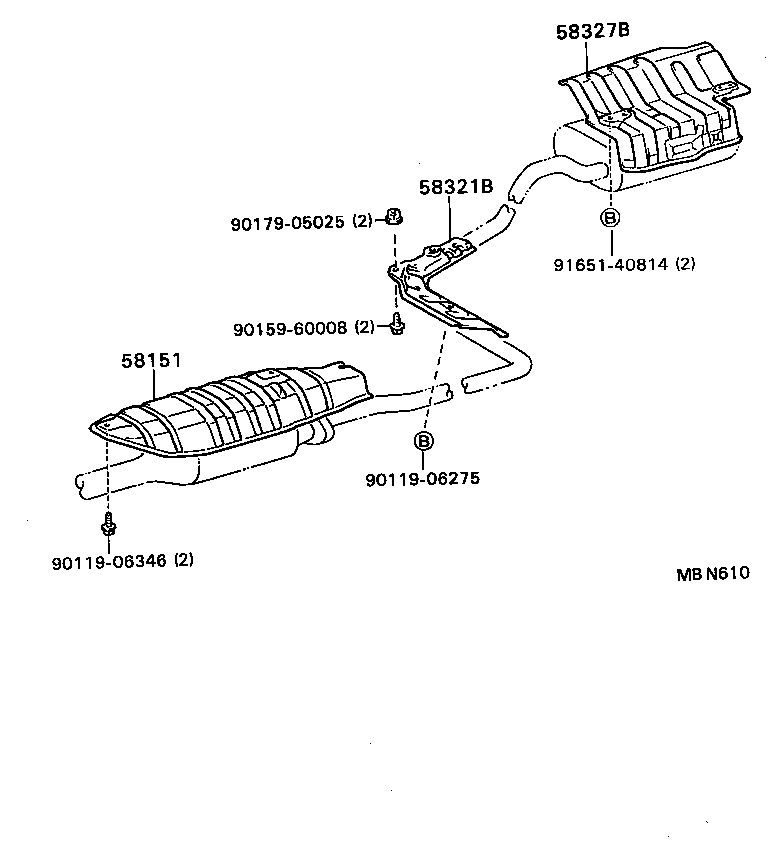

Click highlighted areas on diagram

diagram 58151 58321B 58327B 9011906275 9011906346 9015960008 9017905025 9165140814
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-16040

EL3#

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-16020

EL31..EFI,TBO

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-16050

EL3#,NL30

 1
Common parts
90119-06275
90119-06346
90159-60008
90179-05025
91651-40814
