EL31-LGPXT (1987)

Toyota Corsa/Tercel

Production Feb 1987 - May 1988
Engine 3ETE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8702- )3ETE..4FC

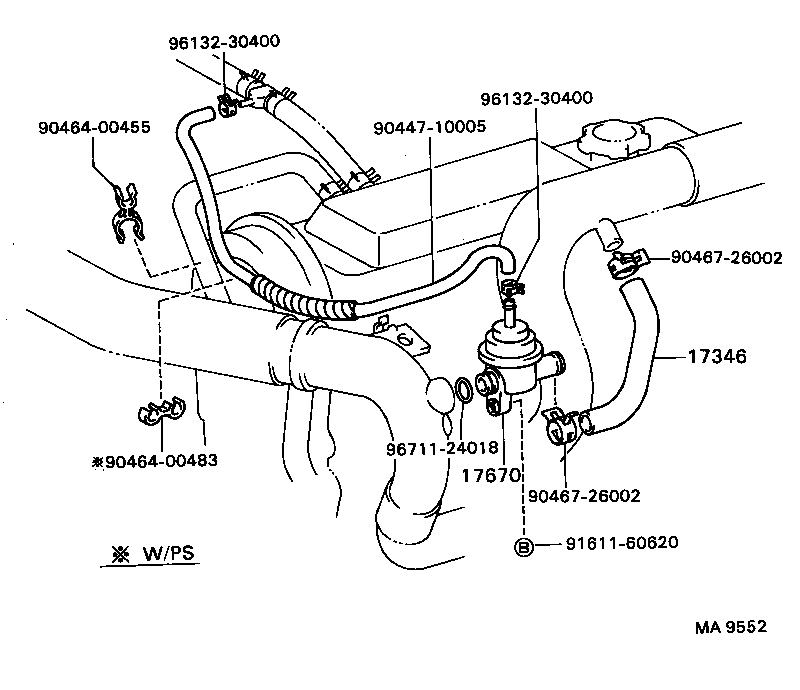

Click highlighted areas on diagram

diagram 17346 17670 9044710005 9046400455 9046400483 9046726002 9046726002 9161160620 9613230400 9613230400 9671124018
Part # Description Qty Price
17346 - HOSE, NO.6(FOR AIR INJECTION SYSTEM)
17346-11010

3ETE..EL31..4FC

 1
17670 - VALVE ASSY, AIR BY-PASS
17670-11010

3ETE..EL31..4FC

 1
Common parts
90447-10005
90464-00455
90464-00483
90467-26002
91611-60620
96132-30400
96711-24018
