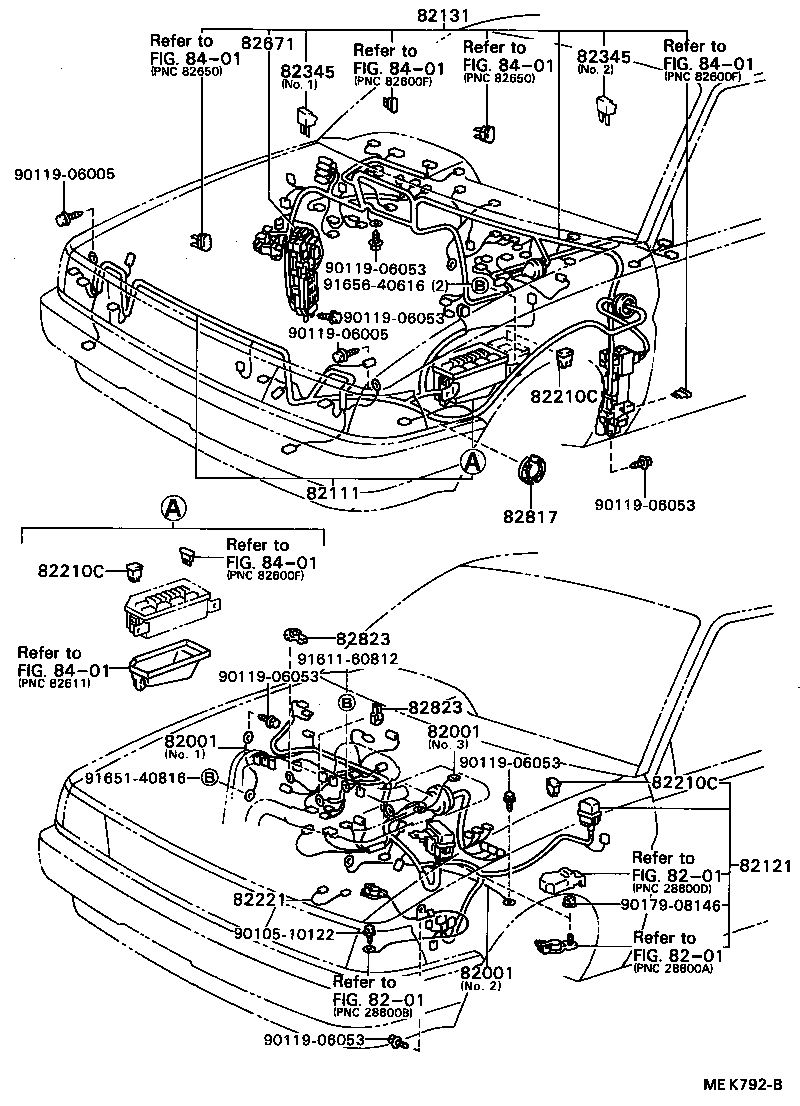

EL31-LGMXT (1988)
Toyota Corsa/Tercel
(8805- )TBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07242 |
EL3# NO.2 |
1 | ||
| 90980-07267 |
EL31..TBO NO.3 |
1 | ||
| 90980-07282 |
EL3# NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07242 |
EL3# NO.2 |
1 | ||
| 90980-07267 |
EL31..TBO NO.3 |
1 | ||
| 90980-07282 |
EL3# NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07242 |
EL3# NO.2 |
1 | ||
| 90980-07267 |
EL31..TBO NO.3 |
1 | ||
| 90980-07282 |
EL3# NO.1 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-16670 |
EL31..TBO |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-16360 |
EL31..5F..TBO |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1G260 |
EL31..5F..(EFI,TBO) |
1 | ||
| 82131-1G280 |
EL31..TBO ｱﾘ(ﾌﾟﾛｸﾞﾚﾂｼﾌﾞ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) OR ｱﾘ(TEMS) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) OR ｱﾘ(ﾗｼﾞｵ=*AFM/4-AMP/2-DIN) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
EL3# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
EL3#,NL30 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08190 |
EL3#;NL30..4FC 60A,ﾒｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
EL3# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
EL3#,NL30 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08190 |
EL3#;NL30..4FC 60A,ﾒｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
EL3# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
EL3#,NL30 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08190 |
EL3#;NL30..4FC 60A,ﾒｽ端子,黄 |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-16040 |
EL3#..MTM |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
NL30..4FC;EL31..EFI,TBO;NL30..5F..(EX,VX) NO.1,2P CONNECTER |
1 | ||
| 82345-20060 |
EL3#,NL30..CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX NO.2 |
1 | ||
| 82345-20060 |
EL3#,NL30..(4F,4FC,5F)..(CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX) NO.2 |
1 | ||
| 82345-32020 |
NL30..4FC;EL31..EFI,TBO;NL30..5F..(EX,VX) NO.1,3P CONNECTER |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
NL30..4FC;EL31..EFI,TBO;NL30..5F..(EX,VX) NO.1,2P CONNECTER |
1 | ||
| 82345-20060 |
EL3#,NL30..CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX NO.2 |
1 | ||
| 82345-20060 |
EL3#,NL30..(4F,4FC,5F)..(CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX) NO.2 |
1 | ||
| 82345-32020 |
NL30..4FC;EL31..EFI,TBO;NL30..5F..(EX,VX) NO.1,3P CONNECTER |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82660-12130 |
EL3#,NL30 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22280 |
EL3#,NL30 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
EL3# STARTER |
1 | ||
| 82823-22050 |
EL3#,NL30 ALTERNATOR |
1 | ||
| 82823-20030 |
EL3#;NL30..5F STARTER |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
EL3# STARTER |
1 | ||
| 82823-22050 |
EL3#,NL30 ALTERNATOR |
1 | ||
| 82823-20030 |
EL3#;NL30..5F STARTER |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90179-08146 | ||||
| 91611-60812 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
(8805- )3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-16040 |
EL3#..3DS..(CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82151-16030 |
EL3#..3DS..(CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-16030 |
EL3#..3DS..(CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82152-16020 |
EL3#..3DS..(CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-16131 |
EL31..TBO ｱﾘ(TEMS) |
1 | ||
| 82161-16480 |
EL31..3DS |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-16010 |
EL31..EFI,TBO |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-16070 |
EL31..EFI,TBO ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 82171-16060 |
EL3#,NL30 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-16120 |
EL31,NL30..3DS;EL30..3DS..(CUT,GX,SOP,VL) |
1 | ||
| 82184-16180 |
EL31..EFI,TBO ｱﾘ(ﾙ-ﾌｽﾎﾟｲﾗ (LED ﾂｷ)) |
1 | ||
| 82184-16180 |
EL31..TBO |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-16120 |
EL31,NL30..3DS;EL30..3DS..(CUT,GX,SOP,VL) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-16040 |
EL31,NL30..3DS;EL30..3DS..(CUT,GX,SOP,VL) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16100 |
EL3#,NL30 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16190 |
EL31,NL30..3DS;EL30..3DS..(CUT,GX,SOP,VL) |
1 | ||
| Common parts | ||||
| 82819-16110 | ||||
| 90119-06049 | ||||
| 90119-06067 | ||||
ILLUST NO. 3 OF 3(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10250 | ||||
| 82711-10290 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-16370 | ||||
| 82711-16420 | ||||
| 82711-16430 | ||||
| 82711-16450 | ||||
| 82711-16460 | ||||
| 82711-16480 | ||||
| 82711-16490 | ||||
| 82711-20610 | ||||
| 82711-22300 | ||||
| 82711-22540 | ||||
| 82711-24010 | ||||
| 82711-24070 | ||||
| 82711-30550 | ||||
| 82711-30660 | ||||
