EL31-LGMXT (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 3ETE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )GP,SXI,UX,VSI,VU

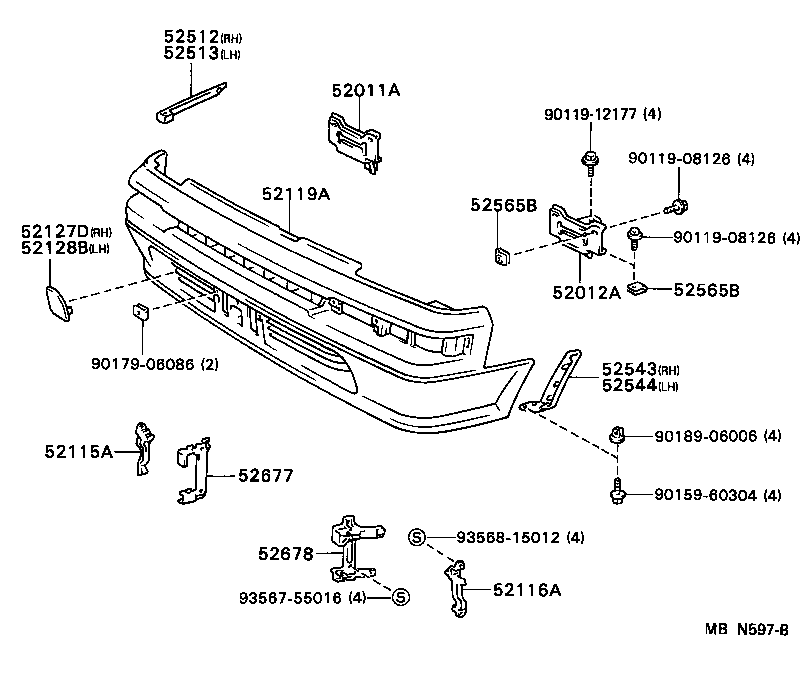

Click highlighted areas on diagram

diagram 52011A 52012A 52115A 52116A 52119A 52127D 52128B 52512 52513 52543 52544 52565B 52565B 52677 52678 9011908126 9011908126 9011912177 9015960304 9017906086 9018906006 9356755016 9356815012
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-16120

EL31..GP,SXI,UX,VSI,VU

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-16110

EL31..GP,SXI,UX,VSI,VU

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-16110

EL31..GP,SXI,UX,VSI,VU

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-16110

EL31..GP,SXI,UX,VSI,VU

 1
52119A - COVER, FRONT BUMPER
52104-1603002

EL31..GP,SXI,UX,VSI,VU

RED,3E6

 1
52104-1603004

EL31..EFI,TBO

LIGHT BLUE M,8D8

 1
52104-1603013

EL31..TBO

GRAY M,27J

 1
52104-1603008

EL31..GP,SXI,UX,VSI,VU

WHITE,041

 1
52104-1603003

EL31..GP,SXI,UX,VSI,VU

SILVER M,23B ,26J

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-16060

EL31..GP,SXI,UX,VSI,VU

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-16020

EL31..GP,SXI,UX,VSI,VU

 1
52512 - FILLER, FRONT BUMPER, RH
52512-16010

EL31..GP,SXI,UX,VSI,VU

 1
52513 - FILLER, FRONT BUMPER, LH
52513-16010

EL31..GP,SXI,UX,VSI,VU

 1
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-16010

EL31..GP,SXI,UX,VSI,VU

 1
52544 - SEAL, FRONT BUMPER SIDE, LH
52544-16010

EL31..GP,SXI,UX,VSI,VU

 1
52565B - RETAINER, REAR BUMPER, LOWER
52565-16020

EL3#,NL30

 8
52565B - RETAINER, REAR BUMPER, LOWER
52565-16020

EL3#,NL30

 8
52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52677-16050

EL31..GP,SXI,UX,VSI,VU

 1
52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH
52677-16050

EL31..GP,SXI,UX,VSI,VU

 1
Common parts
90119-08126
90119-12177
90159-60304
90179-06086
90189-06006
93567-55016
93568-15012
