EL31-LGMXT (1986)
Toyota Corsa/Tercel

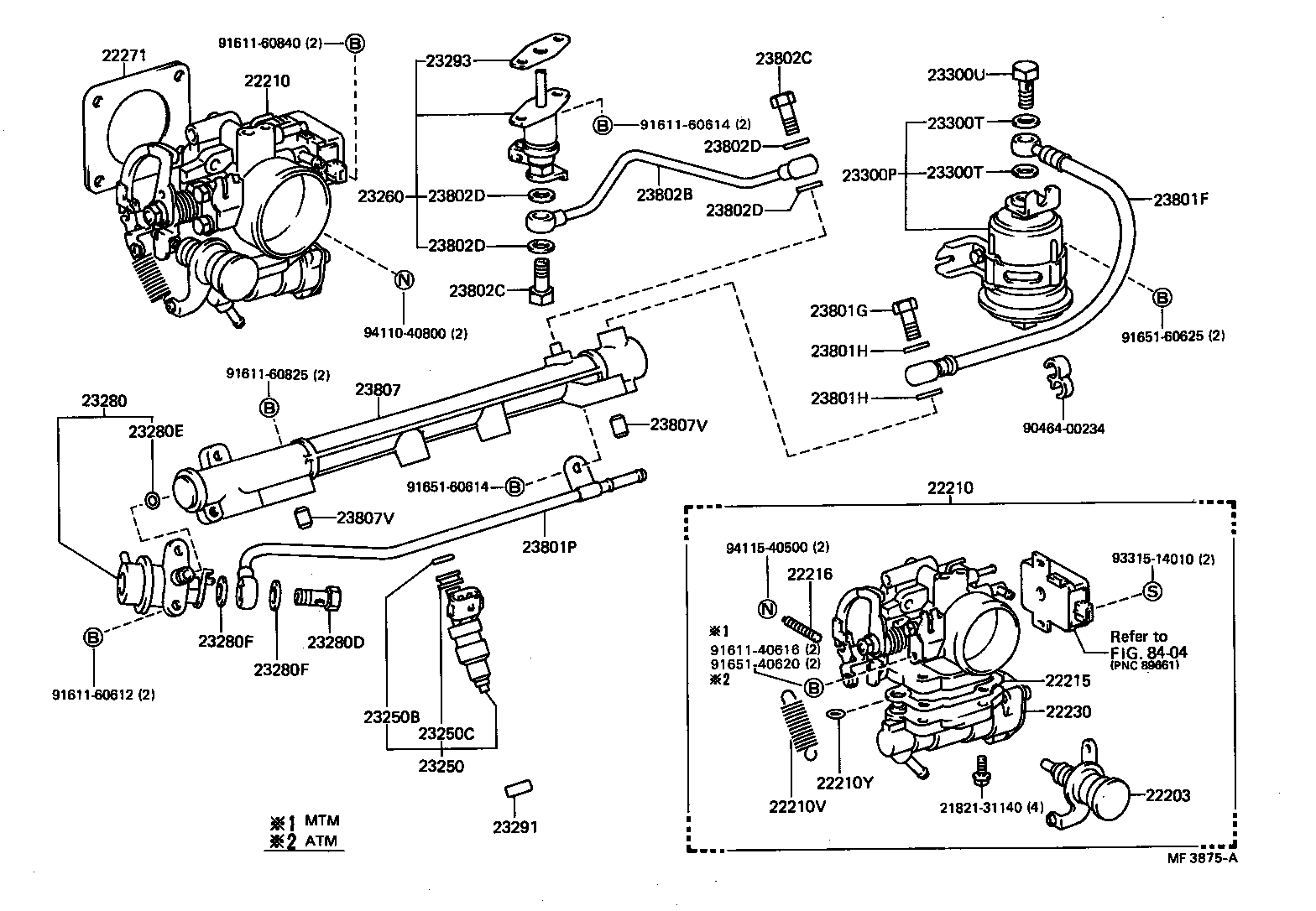

ILLUST NO. 1 OF 2(8609- )3ETE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22202-11031 |
3ETE..EL31..5F |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-11030 |
3ETE..EL31..5F |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-11030 |
3ETE..EL31..5F |
1 | ||
| 22210V - SPRING, TENSION, W/DAMPER (FOR THROTTLE RETURN) | ||||
| 90507-12028 |
3ETE..EL31..5F |
1 | ||
| 22210Y - RING, O(FOR AIR TUBE) | ||||
| 96711-19009 |
3ETE..EL31 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-11010 |
3ETE..EL31 |
1 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
3ETE..EL31 |
2 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-11030 |
3ETE..EL31..5F |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-11010 |
3ETE..EL31 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-11030 |
3ETE..EL31 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
3ETE..EL31 |
1 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
3ETE..EL31 |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-19065 |
3ETE..EL31 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-11010 |
3ETE..EL31 |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-08003 |
3ETE..EL31 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
3ETE..EL31 |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-08005 |
3ETE..EL31 |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-08005 |
3ETE..EL31 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
3ETE..EL31 |
4 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-74010 |
3ETE..EL31 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-19075 |
3ETE..EL31 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
3ETE..EL31 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
3ETE..EL31 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
3ETE..EL31 |
1 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 90923-01338 |
3ETE..EL31 |
1 | ||
| 90923-01355 |
3ETE..EL31 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12097 |
3ETE..EL31 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
3ETE..EL31 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
3ETE..EL31 |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-11030 |
3ETE..EL31 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-11030 |
3ETE..EL31 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-08003 |
3ETE..EL31 |
2 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-08003 |
3ETE..EL31 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08005 |
3ETE..EL31 |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08005 |
3ETE..EL31 |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08005 |
3ETE..EL31 |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08005 |
3ETE..EL31 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-11010 |
3ETE..EL31 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90253-11021 |
3ETE..EL31 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90253-11021 |
3ETE..EL31 |
2 | ||
| Common parts | ||||
| 21821-31140 | ||||
| 90464-00234 | ||||
| 91611-40616 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91651-40620 | ||||
| 91651-60614 | ||||
| 91651-60625 | ||||
| 93315-14010 | ||||
| 94110-40800 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8404 | ||||

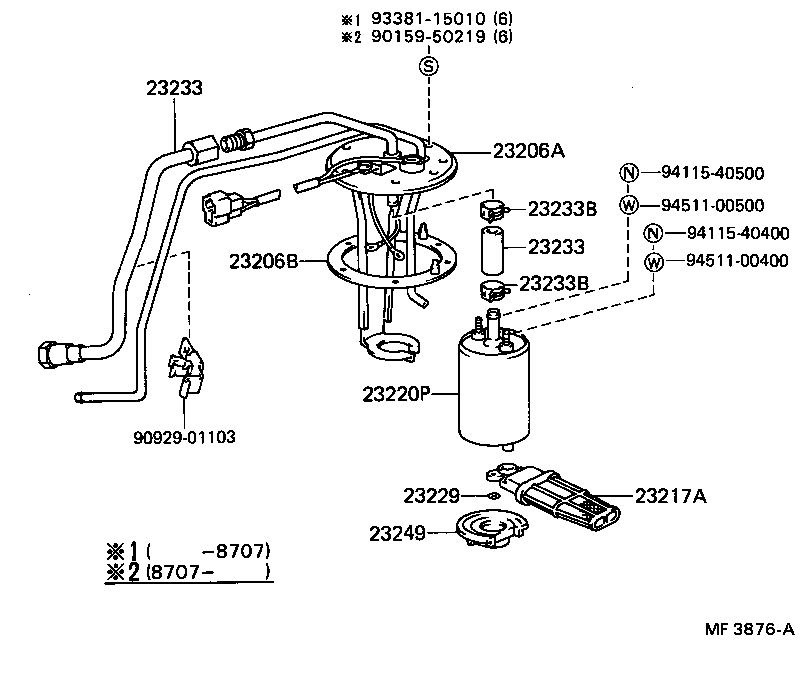

ILLUST NO. 2 OF 2(8609- )3ETE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-11030 |
3ETE..EL31 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-16020 |
3ETE..EL31 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16030 |
3ETE..EL31 DENSO |
1 | ||
| 23217-16043 |
3ETE..EL31 AISAN |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16084 |
3ETE..EL31 AISAN |
1 | ||
| 23220-16190 |
3ETE..EL31 DENSO |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3ETE..EL31 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
3ETE..EL31 PUMP TO BRACKET |
1 | ||
| 23091-11020 |
3ETE..EL31 BRACKET TO FUEL PIPE |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
3ETE..EL31 PUMP TO BRACKET |
1 | ||
| 23091-11020 |
3ETE..EL31 BRACKET TO FUEL PIPE |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
3ETE..EL31 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
3ETE..EL31 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-43080 |
3ETE..EL31 |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 90929-01103 | ||||
| 93381-15010 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
