EL31-LGMSS (1986)
Toyota Corsa/Tercel
ILLUST NO. 1 OF 2(8605- )GP,SX,VS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16030 |
EL31..GP,SX,VS |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-16030 |
EL31..GP,SX,VS |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1642004 |
EL31..SX,VS FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1642001 |
EL31..SX,VS FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1642001 |
EL31..SX,VS FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1642004 |
EL31..SX,VS FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1663001 |
EL31..SX,VS FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1663004 |
EL31..SX,VS FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1663001 |
EL31..SX,VS FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1663004 |
EL31..SX,VS FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71119 - PATCH, FRONT SEAT CUSHION | ||||
| 71119-16010 |
EL31..GP,SX,VS |
4 | ||
| 71119 - PATCH, FRONT SEAT CUSHION | ||||
| 71119-16010 |
EL31..GP,SX,VS |
4 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1664001 |
EL31..SX,VS FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1664004 |
EL31..SX,VS FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1664001 |
EL31..SX,VS FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1664004 |
EL31..SX,VS FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1670004 |
EL31..SX,VS FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1672001 |
EL31..SX,VS FB,W/BODY SONICK,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1670001 |
EL31..SX,VS FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1672004 |
EL31..SX,VS FB,W/BODY SONICK,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1666004 |
EL31..SX,VS FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1668004 |
EL31..SX,VS FB,W/BODY SONICK,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1666001 |
EL31..SX,VS FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1668001 |
EL31..SX,VS FB,W/BODY SONICK,BLACK,BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71513-16010 |
EL31..GP,SX,VS |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71513-16010 |
EL31..GP,SX,VS |
1 | ||
| 71518A - PAD, FRONT SEAT CUSHION COVER MAIN | ||||
| 71518-1601001 |
EL31..GP,SX,VS FB,BLACK,BLACK,TRIM2# |
2 | ||
| 71518-1601004 |
EL31..GP,SX,VS FB,BLUE,BLUE,TRIM8# |
2 | ||
| 71518A - PAD, FRONT SEAT CUSHION COVER MAIN | ||||
| 71518-1601001 |
EL31..GP,SX,VS FB,BLACK,BLACK,TRIM2# |
2 | ||
| 71518-1601004 |
EL31..GP,SX,VS FB,BLUE,BLUE,TRIM8# |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71553-16010 |
EL31..GP,SX,VS |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71553-16010 |
EL31..GP,SX,VS |
1 | ||
| 71558 - PAD, FRONT SEAT BACK COVER MAIN | ||||
| 71558-1601004 |
EL31..GP,SX,VS FB,BLUE,BLUE,TRIM8# |
2 | ||
| 71558-1601001 |
EL31..GP,SX,VS FB,BLACK,BLACK,TRIM2# |
2 | ||
| 71558 - PAD, FRONT SEAT BACK COVER MAIN | ||||
| 71558-1601004 |
EL31..GP,SX,VS FB,BLUE,BLUE,TRIM8# |
2 | ||
| 71558-1601001 |
EL31..GP,SX,VS FB,BLACK,BLACK,TRIM2# |
2 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-16140 |
EL31..SX,VS |
1 | ||
| 71630-16160 |
EL31..SX,VS W/BODY SONICK |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-16080 |
EL31..GP,SX,VS |
1 | ||
| 71640-16090 |
EL31..GP,SX,VS W/BODY SONICK |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-1601001 |
EL31..SX,VS BLACK,BLACK,TRIM2# |
1 | ||
| 71705-1601004 |
EL31..SX,VS BLUE,BLUE,TRIM8# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-1601001 |
EL31..GP,SX,VS BLACK,BLACK,TRIM2# |
1 | ||
| 71706-1601004 |
EL31..GP,SX,VS BLUE,BLUE,TRIM8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1620004 |
EL31..GP,SX,VS BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1620001 |
EL31..GP,SX,VS BLACK,BLACK,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1601001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
4 | ||
| 71931-1601004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
4 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1601001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
4 | ||
| 71931-1601004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
4 | ||
| Common parts | ||||
| 67771-89104 | ||||
| 71733-16010 | ||||
| 90105-08085 | ||||
| 90386-12027 | ||||
| 90520-01002 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 8602 | ||||

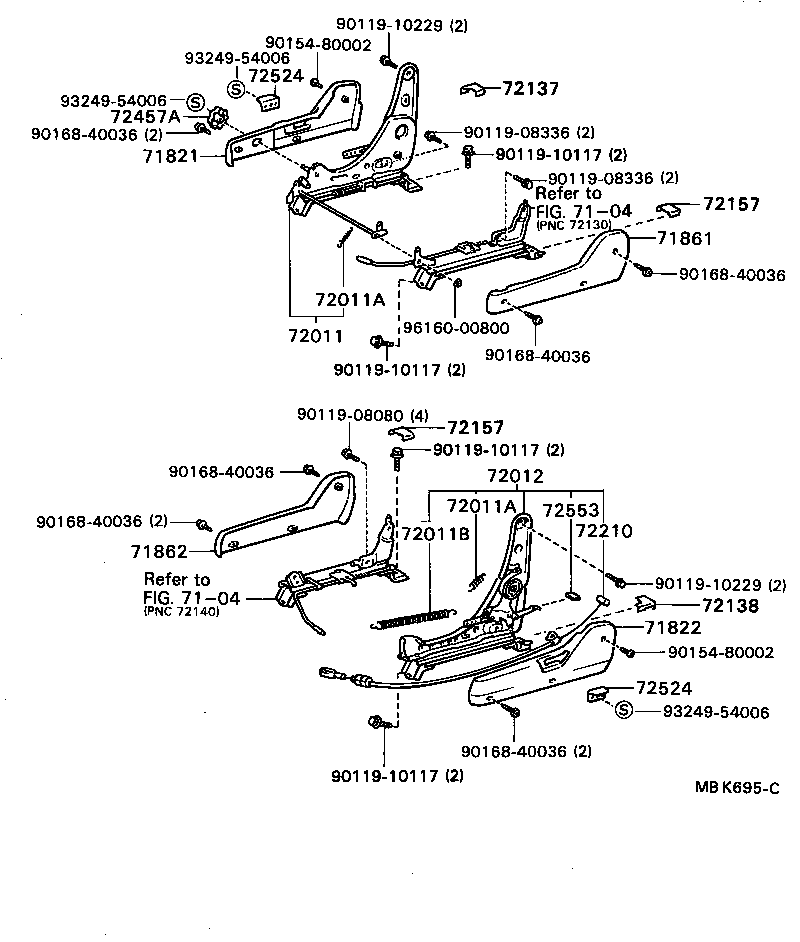

ILLUST NO. 2 OF 2(8605- )GP,SX,VS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71821 - SHIELD, FRONT SEAT SIDE, RH | ||||
| 71811-1609004 |
EL31..GP,SX,VS BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1609001 |
EL31..GP,SX,VS BLACK,BLACK,TRIM2# |
1 | ||
| 71822 - SHIELD, FRONT SEAT SIDE, LH | ||||
| 71812-1607004 |
EL31..GP,SX,VS BLUE,BLUE,TRIM8# |
1 | ||
| 71812-1607001 |
EL31..GP,SX,VS BLACK,BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1605001 |
EL31..GP,SX,VS BLACK,BLACK,TRIM2# |
1 | ||
| 71861-1605004 |
EL31..GP,SX,VS BLUE,BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1604004 |
EL31..GP,SX,VS BLUE,BLUE,TRIM8# |
1 | ||
| 71862-1604001 |
EL31..GP,SX,VS BLACK,BLACK,TRIM2# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16160 |
EL31..GP,SX,VS |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20046 |
EL31..GP,SX,VS LH |
1 | ||
| 90506-20046 |
EL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX RH |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20046 |
EL31..GP,SX,VS LH |
1 | ||
| 90506-20046 |
EL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX RH |
1 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18036 |
EL3#..3DS..(CUT,EX,GP,GX,SOP,SX,VL,VS,VX) LH |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16160 |
EL31..GP,SX,VS |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16020 |
EL3#,NL30 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16020 |
EL3#,NL30 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-16020 |
EL3#,NL30 LH |
1 | ||
| 72157-16020 |
EL3#,NL30 RH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-16020 |
EL3#,NL30 LH |
1 | ||
| 72157-16020 |
EL3#,NL30 RH |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-16120 |
EL3#..3DS..(CUT,EX,GP,GX,SOP,SX,VL,VS,VX) LH |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701004 |
EL31..GP,SX,VS BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72457-1701011 |
EL31..GP,SX,VS BLACK,BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209011 |
EL3#,NL30 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1203011 |
EL3#,NL30 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1209024 |
EL3#,NL30 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72526-1203024 |
EL3#,NL30 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209011 |
EL3#,NL30 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1203011 |
EL3#,NL30 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1209024 |
EL3#,NL30 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72526-1203024 |
EL3#,NL30 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
EL3#..3DS..(CUT,EX,GP,GX,SOP,SX,VL,VS,VX) |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08336 | ||||
| 90119-10117 | ||||
| 90119-10229 | ||||
| 90154-80002 | ||||
| 90168-40036 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
