EL31-LGMSS (1986)
Toyota Corsa/Tercel
Production
May 1986
-
May 1988
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8605- )GP,SX,VS

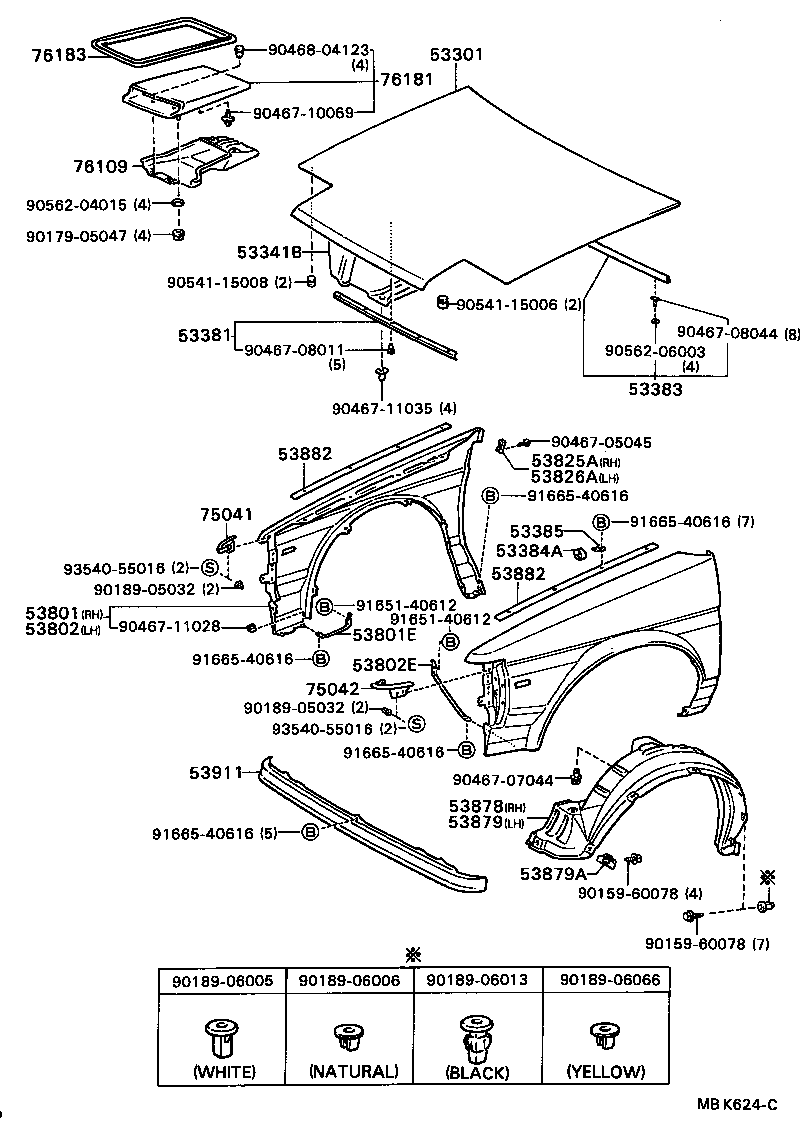

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-16050 |
EL31..SX,VS |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-16030 |
EL31..GP,SX,VS |
1 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-16030 |
EL3#,NL30 |
1 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-16030 |
EL3#,NL30 |
2 | ||
| 53385 - RETAINER, HOOD, BUMPER | ||||
| 53385-14010 |
EL3#,NL30 LH |
1 | ||
| 53386-14010 |
EL3#,NL30 RH |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-16180 |
EL31..GP,SX,VS W/FENDER MIRROR,FR SPOILER |
1 | ||
| 53801-16170 |
EL31..GP,SX,VS W/FENDER MIRROR |
1 | ||
| 53801-16130 |
EL31..GP,SX,VS W/DOOR MIRROR |
1 | ||
| 53801-16160 |
EL31..GP,SX,VS W/DOOR MIRROR,FR SPOILER |
1 | ||
| 53801E - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53835-16020 |
EL3#,NL30 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-16090 |
EL31..GP,SX,VS W/DOOR MIRROR |
1 | ||
| 53802-16160 |
EL31..GP,SX,VS W/FENDER MIRROR |
1 | ||
| 53802-16100 |
EL31..GP,SX,VS W/DOOR MIRROR,FR SPOILER |
1 | ||
| 53802-16170 |
EL31..GP,SX,VS W/FENDER MIRROR,FR SPOILER |
1 | ||
| 53802E - BRACE, FRONT FENDER TO APRON, LH | ||||
| 53836-16020 |
EL3#,NL30 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-16010 |
EL3#,NL30 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-16010 |
EL3#,NL30 |
1 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-16030 |
EL3#,NL30 |
1 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-16030 |
EL3#,NL30 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-14010 |
EL3#,NL30 |
8 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-10050 |
EL3#,NL30 |
2 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-10050 |
EL3#,NL30 |
2 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53901-16040 |
EL31..GP,SX,VS W/FR SPOILER |
1 | ||
| 53901-16030 |
EL3#,NL30 |
1 | ||
| 53901-16050 |
EL3#,NL30 |
1 | ||
| 75041 - GARNISH SUB-ASSY, FRONT FENDER, RH | ||||
| 75041-16010 |
EL31..GP,SX,VS |
1 | ||
| 75042 - GARNISH SUB-ASSY, FRONT FENDER, LH | ||||
| 75042-16010 |
EL31..GP,SX,VS |
1 | ||
| Common parts | ||||
| 90159-60078 | ||||
| 90179-05047 | ||||
| 90189-05032 | ||||
| 90189-06005 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90189-06066 | ||||
| 90467-05045 | ||||
| 90467-07044 | ||||
| 90467-08011 | ||||
| 90467-08044 | ||||
| 90467-10069 | ||||
| 90467-11028 | ||||
| 90467-11035 | ||||
| 90468-04123 | ||||
| 90541-15006 | ||||
| 90541-15008 | ||||
| 90562-04015 | ||||
| 90562-06003 | ||||
| 91651-40612 | ||||
| 91665-40616 | ||||
| 93540-55016 | ||||
