EL31-LGMSS (1986)
Toyota Corsa/Tercel
Production
May 1986
-
May 1988
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8605- )GP,SX,VS

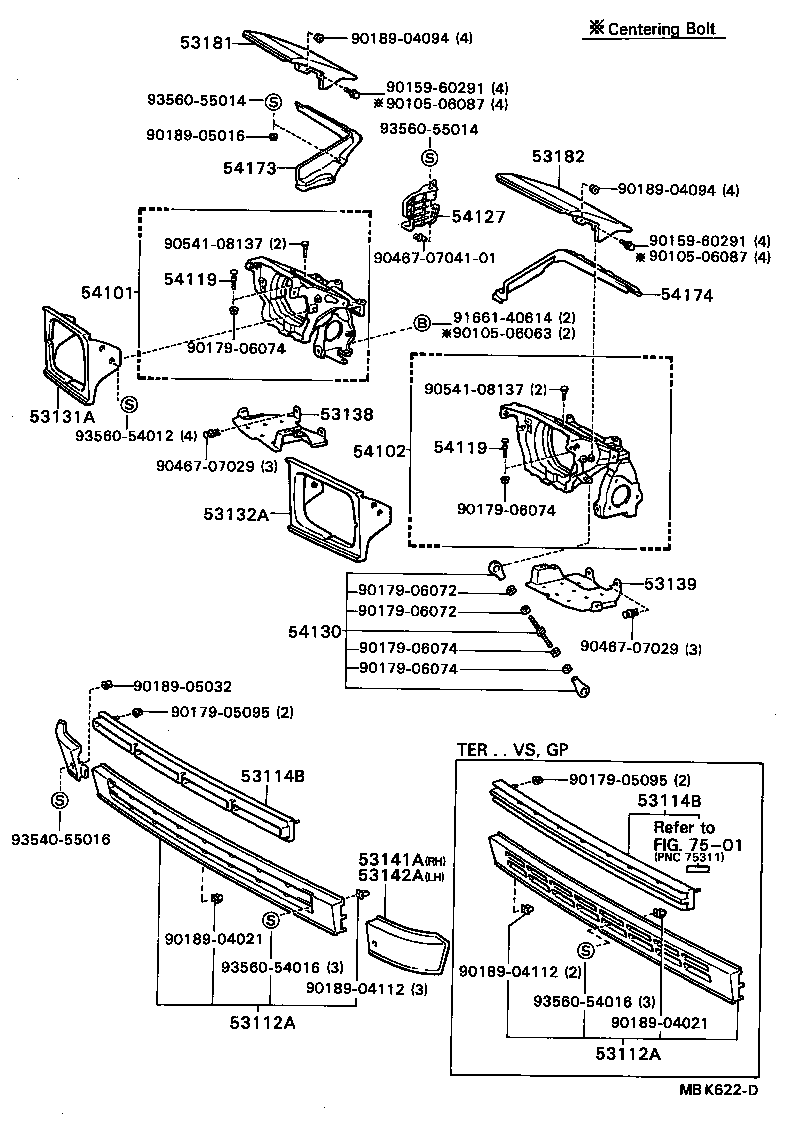

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53112-16020 |
EL31..CRS..(GP,SX) W/O HOOK HOLE |
1 | ||
| 53112-16050 |
EL31..CRS..(GP,SX) W/HOOK HOLE |
1 | ||
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53112-16020 |
EL31..CRS..(GP,SX) W/O HOOK HOLE |
1 | ||
| 53112-16050 |
EL31..CRS..(GP,SX) W/HOOK HOLE |
1 | ||
| 53114B - GRILLE, RADIATOR, UPPER | ||||
| 53114-16020 |
EL31..CRS..(GP,SX) |
1 | ||
| 53114B - GRILLE, RADIATOR, UPPER | ||||
| 53114-16020 |
EL31..CRS..(GP,SX) |
1 | ||
| 53131A - DOOR, HEADLAMP, RH | ||||
| 53031-16090 |
EL31..GP,SX,VS |
1 | ||
| 53132A - DOOR, HEADLAMP, LH | ||||
| 53032-16090 |
EL31..GP,SX,VS |
1 | ||
| 53138 - PROTECTOR, HEADLAMP DOOR, RH | ||||
| 53138-16020 |
EL31..GP,SX,VS |
1 | ||
| 53139 - PROTECTOR, HEADLAMP DOOR, LH | ||||
| 53139-16020 |
EL31..GP,SX,VS |
1 | ||
| 53141A - GARNISH, RADIATOR GRILLE, LOWER RH | ||||
| 53141-16020 |
EL31..GP,SX,VS |
1 | ||
| 53142A - GARNISH, RADIATOR GRILLE, LOWER LH | ||||
| 53142-16020 |
EL31..GP,SX,VS |
1 | ||
| 53181 - COVER, HEADLAMP, RH | ||||
| 53181-16010 |
EL31..GP,SX,VS |
1 | ||
| 53182 - COVER, HEADLAMP, LH | ||||
| 53182-16010 |
EL31..GP,SX,VS |
1 | ||
| 54101 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, RH | ||||
| 54110-16010 |
EL31..GP,SX,VS |
1 | ||
| 54102 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, LH | ||||
| 54120-16010 |
EL31..GP,SX,VS |
1 | ||
| 54119 - STOP, RETRACTABLE HEADLAMP LINK | ||||
| 54119-14010 |
EL31..GP,SX,VS |
2 | ||
| 54119 - STOP, RETRACTABLE HEADLAMP LINK | ||||
| 54119-14010 |
EL31..GP,SX,VS |
2 | ||
| 54127 - PROTECTOR, RETRACTABLE HEADLAMP, NO.2 RH | ||||
| 54127-16010 |
EL31..GP,SX,VS |
1 | ||
| 54130 - ROD ASSY, RETRACTABLE HEADLAMP | ||||
| 54130-16010 |
EL31..GP,SX,VS |
2 | ||
| 54173 - SHIELD, RETRACTABLE HEADLAMP, RH | ||||
| 54173-16010 |
EL31..GP,SX,VS |
1 | ||
| 54174 - SHIELD, RETRACTABLE HEADLAMP, LH | ||||
| 54174-16010 |
EL31..GP,SX,VS |
1 | ||
| Common parts | ||||
| 90105-06063 | ||||
| 90105-06087 | ||||
| 90159-60291 | ||||
| 90179-05095 | ||||
| 90179-06072 | ||||
| 90179-06074 | ||||
| 90189-04021 | ||||
| 90189-04094 | ||||
| 90189-04112 | ||||
| 90189-05016 | ||||
| 90189-05032 | ||||
| 90467-07029 | ||||
| 90467-0704101 | ||||
| 90541-08137 | ||||
| 91661-40614 | ||||
| 93540-55016 | ||||
| 93560-54012 | ||||
| 93560-54016 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 7501 | ||||
