EL31-LGMSS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )5F..SX,VS ; (8609-8712)TBO

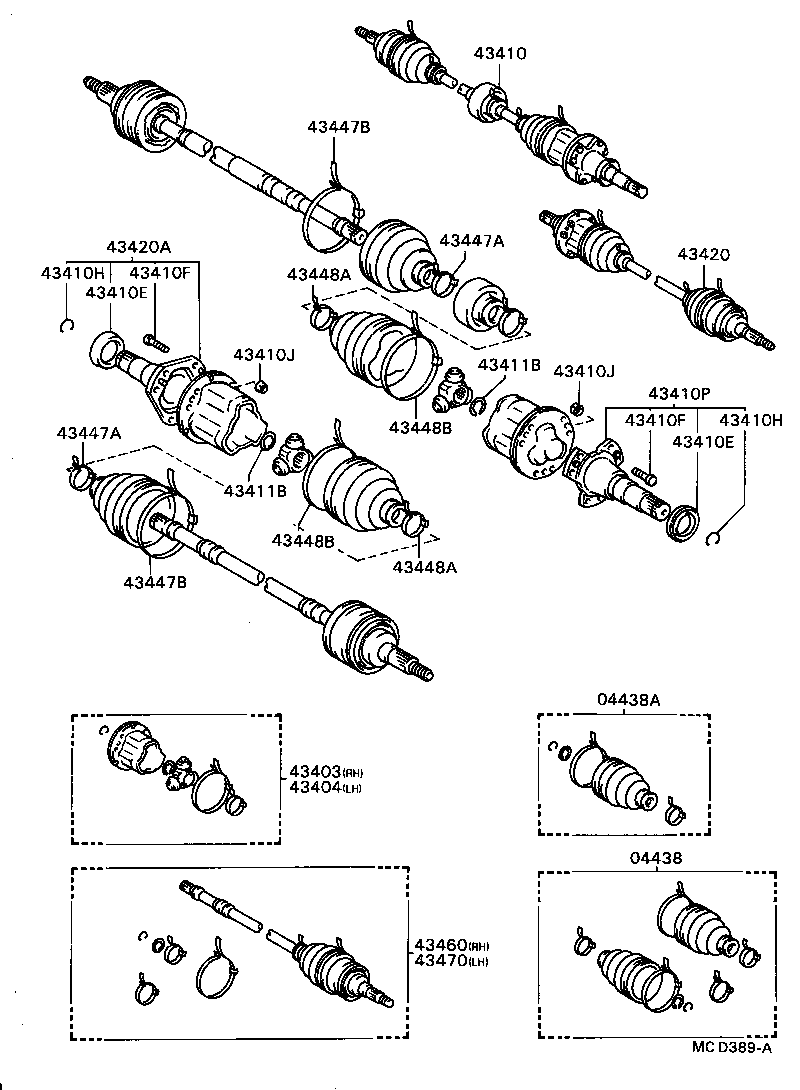

Click highlighted areas on diagram

diagram 04438 04438A 43403 43404 43410 43410E 43410E 43410F 43410F 43410H 43410H 43410J 43410J 43410P 43411B 43411B 43420 43420A 43447A 43447A 43447B 43447B 43448A 43448A 43448B 43448B 43460 43470
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-17011

EL31..5F..(SX,VS)

 2
04438-17010

EL31..5F..(SX,VS)

 2
04438-17012

EL31..5F..(SX,VS)

 2
04438-12080

EL31..5F..(SX,VS)

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12010

EL31..5F..(SX,VS)

 2
04438-12070

EL31..5F..(SX,VS)

 2
04438-12011

EL31..5F..(SX,VS)

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-19035

EL31..5F..(SX,VS)

 1
43403-19055

EL31..5F..(SX,VS)

 1
43404 - JOINT SET, FRONT AXLE INBOARD, LH
43403-19035

EL31..5F..(SX,VS)

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-16080

EL31..5F..(SX,VS)

 1
43410-16050

EL31..5F..(SX,VS)

 1
43410E - COVER, DUST (FOR FRONT DRIVE SHAFT)
41336-12010

EL3#,NL30

 2
43410E - COVER, DUST (FOR FRONT DRIVE SHAFT)
41336-12010

EL3#,NL30

 2
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

EL31..5F..(SX,VS)

 12
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

EL31..5F..(SX,VS)

 12
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-26002

EL31..5F..(SX,VS)

 2
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-26002

EL31..5F..(SX,VS)

 2
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

EL31..5F..(SX,VS)

 12
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

EL31..5F..(SX,VS)

 12
43410P - SHAFT SUB-ASSY, FRONT DRIVE, RH
41304-12010

EL31..5F..(SX,VS)

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-23035

EL31..5F..(SX,VS)

 2
90520-22005

EL31..5F..(SX,VS)

 2
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-23035

EL31..5F..(SX,VS)

 2
90520-22005

EL31..5F..(SX,VS)

 2
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-16080

EL31..5F..(SX,VS)

 1
43420-16050

EL31..5F..(SX,VS)

 1
43420A - SHAFT ASSY, FRONT DRIVE, LH
41309-12010

EL31..5F..(SX,VS)

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01078

EL3#,NL30..CBR,TD

 2
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01078

EL3#,NL30..CBR,TD

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01080

EL3#,NL30..CBR,TD

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01080

EL3#,NL30..CBR,TD

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

EL3#,NL30..CBR,TD

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

EL3#,NL30..CBR,TD

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01079

EL31..5F..(SX,VS)

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01079

EL31..5F..(SX,VS)

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-19176

EL31..5F..(SX,VS)

 1
43460-19175

EL31..5F..(SX,VS)

 1
43460-19345

EL31..5F..(SX,VS)

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-19145

EL31..5F..(SX,VS)

 1
43470-19285

EL31..5F..(SX,VS)

 1
43470-19146

EL31..5F..(SX,VS)

 1
