EL31-LGMMS (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )CBR,EFI,TD

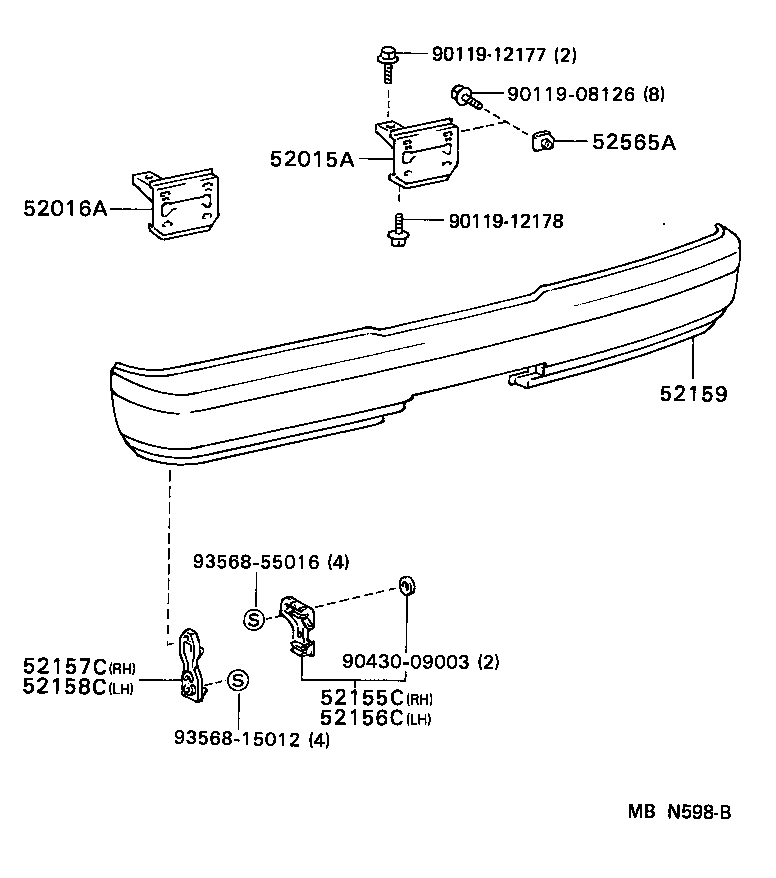

Click highlighted areas on diagram

diagram 52015A 52016A 52155C 52156C 52157C 52158C 52159 52565A 9011908126 9011912177 9011912178 9043009003 9356815012 9356855016
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-16160

EL3#,NL30

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-16140

EL3#,NL30

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-16110

EL3#,NL30

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52156-16100

EL3#,NL30

 1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-16090

EL3#,NL30

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52157-16090

EL3#,NL30

 1
52159 - COVER, REAR BUMPER
52159-1627002

EL3#,NL30..CUT,EX,SOP,SXI,UX,VSI,VU,VX

RED,3E6

 1
52159-1627007

EL3#..CUT,SOP,SXI,UX,VSI,VU

TURQUOIS M,741

 1
52159-1627008

EL3#,NL30..CUT,EX,SOP,SXI,UX,VSI,VU,VX

WHITE,041

 1
52159-1627003

EL31,NL30..EX,SXI,UX,VSI,VU,VX

SILVER M,23B ,26J

 1
52159-1627014

EL31,NL30..EX,SXI,UX,VSI,VU,VX

BLUE MICA M,8G1

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-16020

EL3#,NL30

 8
Common parts
90119-08126
90119-12177
90119-12178
90430-09003
93568-15012
93568-55016
