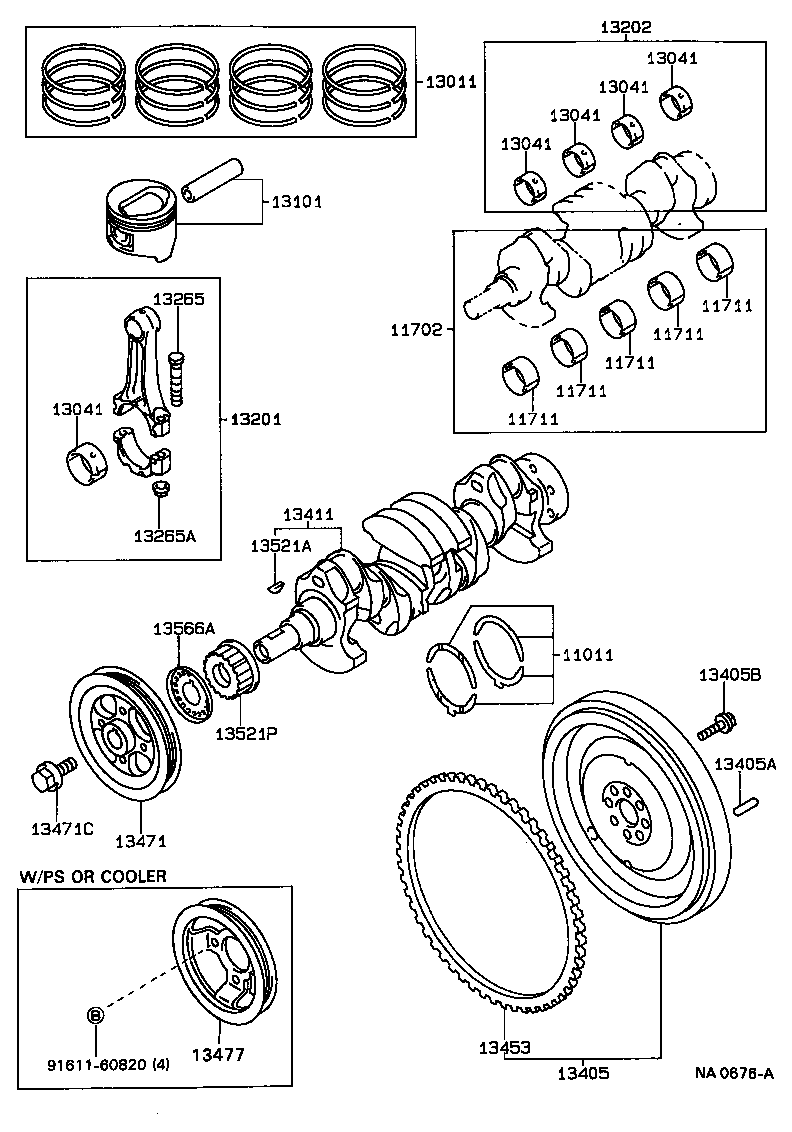

Toyota Corsa/tercel EL30 CRANKSHAFT & PISTON

Part #	Description	Period	Qty
11011 - WASHER SET, CRANKSHAFT THRUST
11011-10010	2E..EL30 STD	05/1988 - 09/1990	1
11012-10020	2E..EL30 O/S 0.125	08/1988 - 09/1990	1
11012-10010	2E..EL30 O/S 0.125	05/1988 - 08/1988	1
11702 - BEARING SET, CRANKSHAFT
11704-10011	2E..EL30 U/S 0.25	12/1989 - 09/1990	1
11704-10010	2E..EL30 U/S 0.25	05/1988 - 12/1989	1
11711 - BEARING, CRANKSHAFT
11701-1001101	2E..EL30 MARK 1	12/1989 - 09/1990	5
11701-1001002	2E..EL30 MARK 2	05/1988 - 12/1989	5
11701-1001003	2E..EL30 MARK 3	05/1988 - 12/1989	5
11701-1001103	2E..EL30 MARK 3	12/1989 - 09/1990	5
11701-1001102	2E..EL30 MARK 2	12/1989 - 09/1990	5
11701-1001001	2E..EL30 MARK 1	05/1988 - 12/1989	5
11711 - BEARING, CRANKSHAFT
11701-1001101	2E..EL30 MARK 1	12/1989 - 09/1990	5
11701-1001002	2E..EL30 MARK 2	05/1988 - 12/1989	5
11701-1001003	2E..EL30 MARK 3	05/1988 - 12/1989	5
11701-1001103	2E..EL30 MARK 3	12/1989 - 09/1990	5
11701-1001102	2E..EL30 MARK 2	12/1989 - 09/1990	5
11701-1001001	2E..EL30 MARK 1	05/1988 - 12/1989	5
11711 - BEARING, CRANKSHAFT
11701-1001101	2E..EL30 MARK 1	12/1989 - 09/1990	5
11701-1001002	2E..EL30 MARK 2	05/1988 - 12/1989	5
11701-1001003	2E..EL30 MARK 3	05/1988 - 12/1989	5
11701-1001103	2E..EL30 MARK 3	12/1989 - 09/1990	5
11701-1001102	2E..EL30 MARK 2	12/1989 - 09/1990	5
11701-1001001	2E..EL30 MARK 1	05/1988 - 12/1989	5
11711 - BEARING, CRANKSHAFT
11701-1001101	2E..EL30 MARK 1	12/1989 - 09/1990	5
11701-1001002	2E..EL30 MARK 2	05/1988 - 12/1989	5
11701-1001003	2E..EL30 MARK 3	05/1988 - 12/1989	5
11701-1001103	2E..EL30 MARK 3	12/1989 - 09/1990	5
11701-1001102	2E..EL30 MARK 2	12/1989 - 09/1990	5
11701-1001001	2E..EL30 MARK 1	05/1988 - 12/1989	5
11711 - BEARING, CRANKSHAFT
11701-1001101	2E..EL30 MARK 1	12/1989 - 09/1990	5
11701-1001002	2E..EL30 MARK 2	05/1988 - 12/1989	5
11701-1001003	2E..EL30 MARK 3	05/1988 - 12/1989	5
11701-1001103	2E..EL30 MARK 3	12/1989 - 09/1990	5
11701-1001102	2E..EL30 MARK 2	12/1989 - 09/1990	5
11701-1001001	2E..EL30 MARK 1	05/1988 - 12/1989	5
13011 - RING SET, PISTON
13013-11041	2E..EL30 O/S 0.50,O/S 0.50	05/1988 - 09/1990	1
13011-11041	2E..EL30 STD	05/1988 - 09/1990	1
13041 - BEARING, CONNECTING ROD
13041-1002001	2E..EL30 MARK 1	05/1988 - 09/1990	4
13041-1002003	2E..EL30 MARK 3	05/1988 - 09/1990	4
13041-1002002	2E..EL30 MARK 2	05/1988 - 09/1990	4
13041 - BEARING, CONNECTING ROD
13041-1002001	2E..EL30 MARK 1	05/1988 - 09/1990	4
13041-1002003	2E..EL30 MARK 3	05/1988 - 09/1990	4
13041-1002002	2E..EL30 MARK 2	05/1988 - 09/1990	4
13041 - BEARING, CONNECTING ROD
13041-1002001	2E..EL30 MARK 1	05/1988 - 09/1990	4
13041-1002003	2E..EL30 MARK 3	05/1988 - 09/1990	4
13041-1002002	2E..EL30 MARK 2	05/1988 - 09/1990	4
13041 - BEARING, CONNECTING ROD
13041-1002001	2E..EL30 MARK 1	05/1988 - 09/1990	4
13041-1002003	2E..EL30 MARK 3	05/1988 - 09/1990	4
13041-1002002	2E..EL30 MARK 2	05/1988 - 09/1990	4
13041 - BEARING, CONNECTING ROD
13041-1002001	2E..EL30 MARK 1	05/1988 - 09/1990	4
13041-1002003	2E..EL30 MARK 3	05/1988 - 09/1990	4
13041-1002002	2E..EL30 MARK 2	05/1988 - 09/1990	4
13101 - PISTON SUB-ASSY, W/PIN
13101-1103002	2E..EL30 STD,MARK 2	05/1988 - 11/1989	4
13101-1103003	2E..EL30 STD,MARK 3	05/1988 - 11/1989	4
13101-1103001	2E..EL30 STD,MARK 1	05/1988 - 11/1989	4
13101-1103101	2E..EL30 STD,MARK 1	11/1989 - 09/1990	4
13103-11030	2E..EL30 O/S 0.50	05/1988 - 11/1989	4
13101-1103103	2E..EL30 STD,MARK 3	11/1989 - 09/1990	4
13101-1103102	2E..EL30 STD,MARK 2	11/1989 - 09/1990	4
13103-11031	2E..EL30 O/S 0.50	11/1989 - 09/1990	4
13201 - ROD SUB-ASSY, CONNECTING
13201-19075	2E..EL30	05/1988 - 09/1990	4
13202 - BEARING SET, CONNECTING ROD
13204-10020	2E..EL30 U/S 0.25	05/1988 - 09/1990	1
13265 - BOLT, CONNECTING ROD
13265-10020	2E..EL30	04/1990 - 09/1990	8
13265-10020	2E,3E#..EL3#	05/1988 - 04/1990	8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-08014	2E,3E#..EL3#	05/1988 - 09/1990	8
13405 - FLYWHEEL SUB-ASSY
13405-11031	2E..EL30..4F	01/1989 - 09/1990	1
13405-11030	2E..EL30..4F	05/1988 - 01/1989	1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120	2E,3E#..EL3#..MTM 長さ=18,外径=8	05/1988 - 09/1990	3
13405B - BOLT, FLYWHEEL SETTING
90105-10138	2E,3E#..EL3#	05/1988 - 09/1990	6
13411 - CRANKSHAFT
13401-11020	2E..EL30	05/1988 - 10/1989	1
13401-11050	2E..EL30	10/1989 - 09/1990	1
13453 - GEAR, FLYWHEEL RING
13453-10030	2E,3E#..EL3#..MTM	05/1988 - 09/1990	1
13471 - PULLEY, CRANKSHAFT
13408-11012	2E,3E#..EL3#	05/1988 - 09/1990	1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12051	2E,3E#..EL3#	05/1988 - 09/1990	1
13477 - PULLEY, CRANKSHAFT, NO.2
44319-16020	2E,3E..EL3#..CUT,EX,SOP,VX	05/1988 - 09/1990	1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-20519	2E,3E#..EL3#	10/1989 - 09/1990	1
90280-05010	2E,3E#..EL3#	05/1988 - 10/1989	1
13521P - PULLEY, CRANKSHAFT TIMING
13521-11010	2E,3E#..EL3#	05/1988 - 09/1990	1
13566A - GUIDE, TIMING BELT
13566-10011	2E,3E#..EL3#	05/1988 - 09/1990	1
Common parts
91611-60820

EL30-ZHKFS (1988)

(8805- )2E,3E#
