EL30-ZHKFS (1986)
Toyota Corsa/Tercel

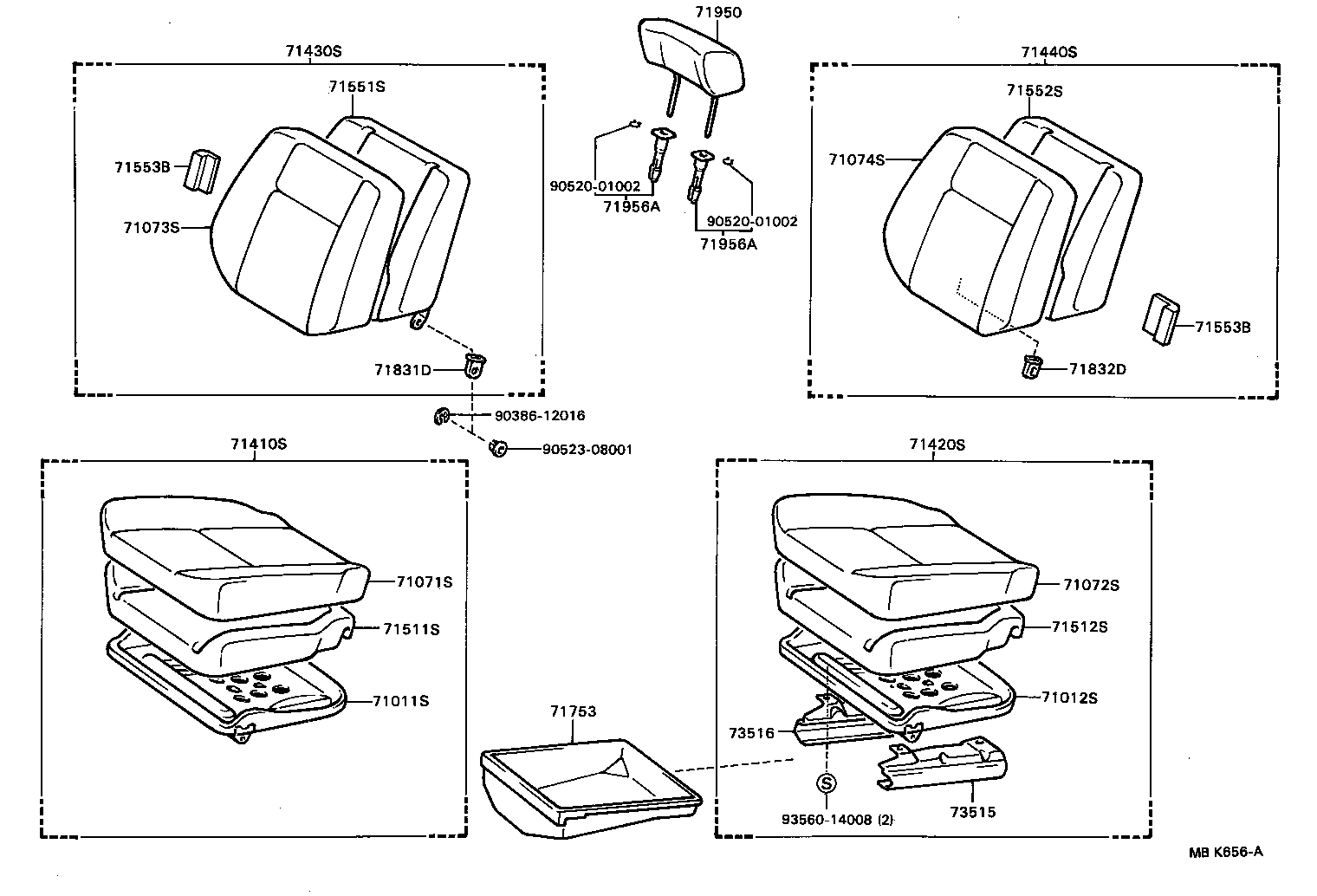

ILLUST NO. 1 OF 2(8605- )CUT,EX,GX,SOP,TX,VC,VL,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16040 |
EL3#..CUT,EX,SOP,VX |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12190 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1658005 |
EL30..CUT,SOP FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1658004 |
EL30..CUT,SOP FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1658003 |
EL30..CUT,SOP FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1658004 |
EL30..CUT,SOP FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1658003 |
EL30..CUT,SOP FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-1658005 |
EL30..CUT,SOP FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1666003 |
EL30..CUT,SOP FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-1666004 |
EL30..CUT,SOP FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1684003 |
EL30..CUT *CE,*ACU,FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-1666005 |
EL30..CUT,SOP FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1684004 |
EL30..CUT *CE,*ACU,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1646003 |
EL30..CUT,SOP FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71074-1664003 |
EL30..CUT *CE,*ACU,FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71074-1646005 |
EL30..CUT,SOP FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-1664004 |
EL30..CUT *CE,*ACU,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1646004 |
EL30..CUT,SOP FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1662004 |
EL30..CUT,SOP FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1662005 |
EL30..CUT,SOP FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-1662003 |
EL30..CUT,SOP FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1659003 |
EL30..CUT,SOP FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420-1659004 |
EL30..CUT,SOP FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1659005 |
EL30..CUT,SOP FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1668004 |
EL30..CUT,SOP FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1668005 |
EL30..CUT,SOP FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-1668003 |
EL30..CUT,SOP FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1664003 |
EL30..CUT,SOP FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71440-1664005 |
EL30..CUT,SOP FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-1664004 |
EL30..CUT,SOP FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-16100 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-16100 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-16020 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-16020 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-16030 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX |
2 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-16030 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX |
2 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-12010 |
EL3#,NL30..CUT,EX,SOP,VX |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-10010 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-10010 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1627004 |
EL30..CUT,SOP BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1623004 |
EL30..CUT,SOP *SOM,*CE,*ACU,*SOS,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1623003 |
EL30..CUT,SOP *SOM,*CE,*ACU,*SOS,GRAY,GRAY,TRIM2# |
2 | ||
| 71910-1627003 |
EL30..CUT,SOP GRAY,GRAY,TRIM2# |
2 | ||
| 71910-1627005 |
EL30..CUT,SOP BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1601005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,BEIGE,TRIM4# |
4 | ||
| 71931-1601001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
4 | ||
| 71931-1601004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
4 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1601005 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BEIGE,BEIGE,TRIM4# |
4 | ||
| 71931-1601001 |
EL3#,NL30 BLACK,BLACK,TRIM2# |
4 | ||
| 71931-1601004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
4 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73515-12020 |
EL3#,NL30..CUT,EX,SOP,VX |
1 | ||
| 73516 - RAIL, FRONT SEAT UNDER TRAY, NO.2 | ||||
| 73516-12020 |
EL3#,NL30..CUT,EX,SOP,VX |
1 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93560-14008 | ||||

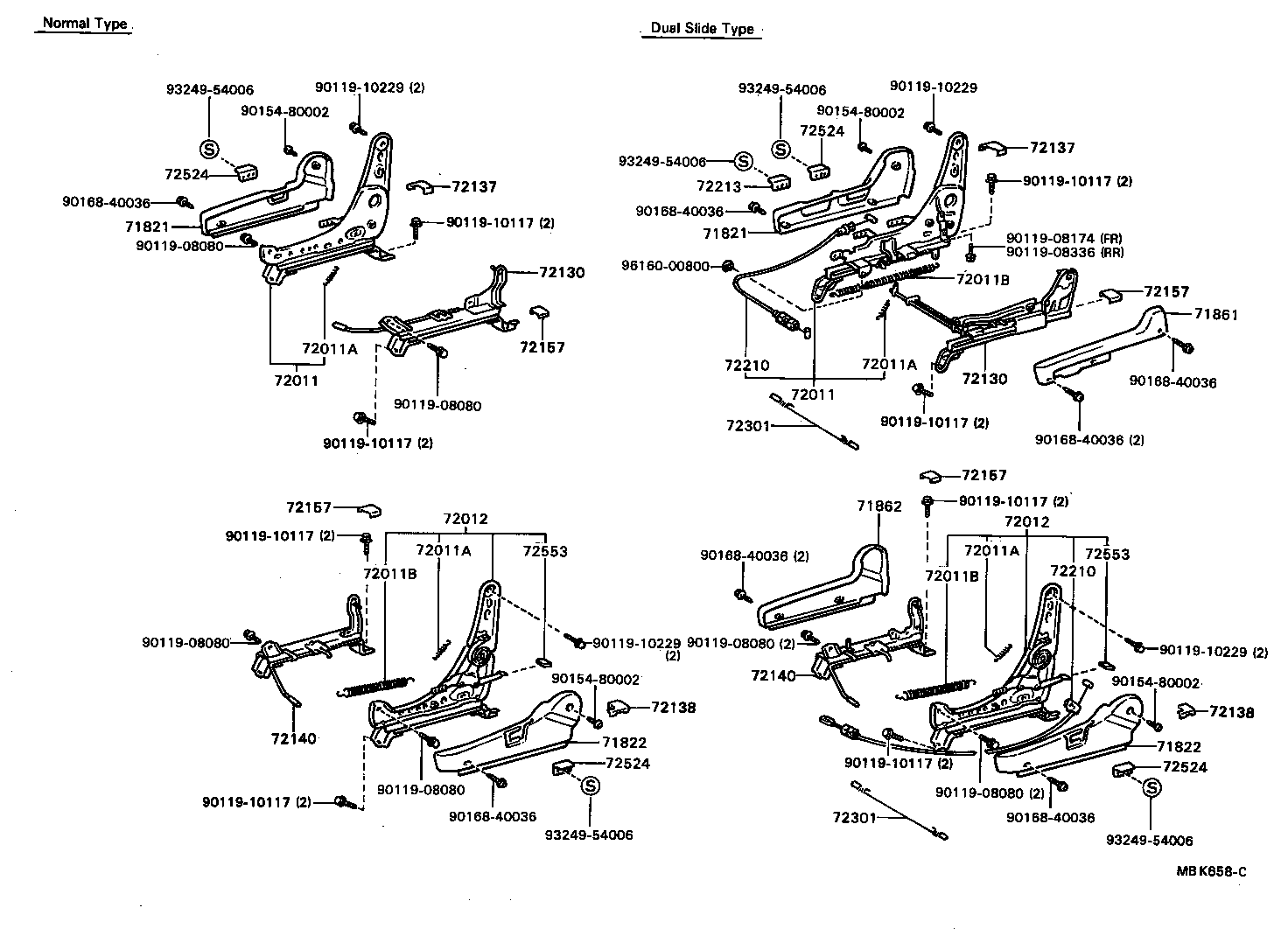

ILLUST NO. 2 OF 2(8605- )CUT,EX,GX,SOP,TX,VC,VL,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71821 - SHIELD, FRONT SEAT SIDE, RH | ||||
| 71811-1610004 |
EL3#,NL30..CUT,EX,SOP,VX BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1610005 |
EL3#,NL30..CUT,EX,SOP,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71811-1610001 |
EL3#,NL30..CUT,EX,SOP,VX BLACK,BLACK,TRIM2# |
1 | ||
| 71821 - SHIELD, FRONT SEAT SIDE, RH | ||||
| 71811-1610004 |
EL3#,NL30..CUT,EX,SOP,VX BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1610005 |
EL3#,NL30..CUT,EX,SOP,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71811-1610001 |
EL3#,NL30..CUT,EX,SOP,VX BLACK,BLACK,TRIM2# |
1 | ||
| 71822 - SHIELD, FRONT SEAT SIDE, LH | ||||
| 71812-1605005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71812-1605004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 71812-1605001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 71822 - SHIELD, FRONT SEAT SIDE, LH | ||||
| 71812-1605005 |
EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71812-1605004 |
EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 71812-1605001 |
EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1606001 |
EL3#,NL30..CUT,EX,SOP,VX BLACK,BLACK,TRIM2# |
1 | ||
| 71861-1606004 |
EL3#,NL30..CUT,EX,SOP,VX BLUE,BLUE,TRIM8# |
1 | ||
| 71861-1606005 |
EL3#,NL30..CUT,EX,SOP,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1201005 |
EL3#,NL30..CUT,EX,SOP,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71862-1201001 |
EL3#,NL30..CUT,EX,SOP,VX BLACK,BLACK,TRIM2# |
1 | ||
| 71862-1201014 |
EL3#,NL30..CUT,EX,SOP,VX BLUE,BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16170 |
EL3#,NL30..CUT,EX,SOP,VX |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16170 |
EL3#,NL30..CUT,EX,SOP,VX |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX LH |
1 | ||
| 90506-20046 |
EL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX RH |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX LH |
1 | ||
| 90506-20046 |
EL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX RH |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX LH |
1 | ||
| 90506-20046 |
EL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX RH |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX LH |
1 | ||
| 90506-20046 |
EL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX RH |
1 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18057 |
EL3#,NL30..CUT,EX,SOP,VX RH |
1 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18057 |
EL3#,NL30..CUT,EX,SOP,VX RH |
1 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18057 |
EL3#,NL30..CUT,EX,SOP,VX RH |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16140 |
EL3#,NL30..5DS |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16140 |
EL3#,NL30..5DS |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-16120 |
EL3#,NL30..CUT,EX,SOP,VX |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-16120 |
EL3#,NL30..CUT,EX,SOP,VX |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16020 |
EL3#,NL30 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16020 |
EL3#,NL30 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16020 |
EL3#,NL30 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16020 |
EL3#,NL30 |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-16120 |
EL3#..5DS..(CUT,EX,SOP,VX) |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-16120 |
EL3#..5DS..(CUT,EX,SOP,VX) |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-16020 |
EL3#,NL30 LH |
1 | ||
| 72157-16020 |
EL3#,NL30 RH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-16020 |
EL3#,NL30 LH |
1 | ||
| 72157-16020 |
EL3#,NL30 RH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-16020 |
EL3#,NL30 LH |
1 | ||
| 72157-16020 |
EL3#,NL30 RH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-16020 |
EL3#,NL30 LH |
1 | ||
| 72157-16020 |
EL3#,NL30 RH |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-16130 |
EL3#,NL30..CUT,EX,SOP,VX RH |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-16130 |
EL3#,NL30..CUT,EX,SOP,VX RH |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-1601005 |
EL3#,NL30..CUT,EX,SOP,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72213-1601001 |
EL3#,NL30..CUT,EX,SOP,VX BLACK,BLACK,TRIM2# |
1 | ||
| 72213-1601004 |
EL3#,NL30..CUT,EX,SOP,VX BLUE,BLUE,TRIM8# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16070 |
EL3#,NL30..CUT,EX,SOP,VX |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16070 |
EL3#,NL30..CUT,EX,SOP,VX |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209011 |
EL3#,NL30 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1203011 |
EL3#,NL30 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1209024 |
EL3#,NL30 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-1209025 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203025 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203024 |
EL3#,NL30 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209011 |
EL3#,NL30 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1203011 |
EL3#,NL30 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1209024 |
EL3#,NL30 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-1209025 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203025 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203024 |
EL3#,NL30 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209011 |
EL3#,NL30 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1203011 |
EL3#,NL30 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1209024 |
EL3#,NL30 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-1209025 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203025 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203024 |
EL3#,NL30 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209011 |
EL3#,NL30 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1203011 |
EL3#,NL30 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1209024 |
EL3#,NL30 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-1209025 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203025 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203024 |
EL3#,NL30 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08174 | ||||
| 90119-08336 | ||||
| 90119-10117 | ||||
| 90119-10229 | ||||
| 90154-80002 | ||||
| 90168-40036 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
