EL30-ZHKFS (1986)
Toyota Corsa/Tercel

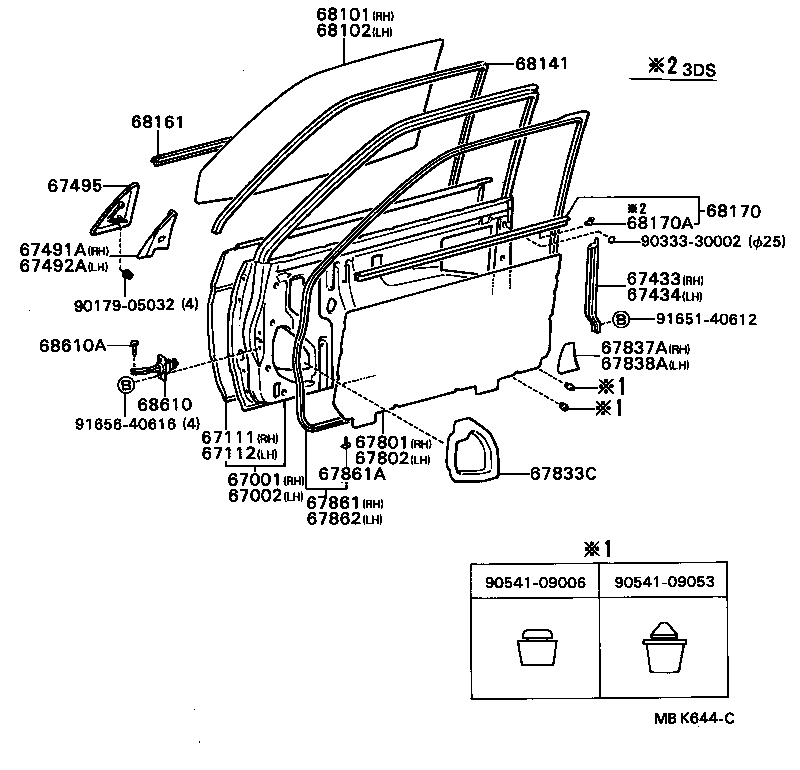

ILLUST NO. 1 OF 2(8605- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-16210 |
EL3#,NL30..5DS |
1 | ||
| 67001-16280 |
EL3#,NL30..5DS..(CUT,EX,SOP,VX) W/*PW OR ELECTRIC *DM |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-16240 |
EL3#,NL30..5DS..(CUT,EX,SOP,VX) W/*PW OR ELECTRIC *DM |
1 | ||
| 67002-16170 |
EL3#,NL30..5DS |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-16180 |
EL3#,NL30..5DS |
1 | ||
| 67111-16170 |
EL3#,NL30..5DS |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-16160 |
EL3#,NL30..5DS |
1 | ||
| 67112-16150 |
EL3#,NL30..5DS |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67433-16050 |
EL3#,NL30..5DS |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67434-16050 |
EL3#,NL30..5DS |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-16070 |
EL3#,NL30..5DS |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-16070 |
EL3#,NL30..5DS |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67495-16050 |
EL3#,NL30..5DS..(CUT,EX,GX,SOP,VL,VX) RH,W/*FM,BELT MOULDING |
1 | ||
| 67496-16050 |
EL3#,NL30..5DS..(CUT,EX,GX,SOP,VL,VX) LH,W/*FM,BELT MOULDING |
1 | ||
| 67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH | ||||
| 67831-16130 |
EL3#,NL30..5DS |
1 | ||
| 67831-16160 |
EL30..5DS..(CUT,SOP) *SOM,*CE,*ACU,*SOS,W/*PW |
1 | ||
| 67831-16150 |
EL3#,NL30..5DS COLD SPEC |
1 | ||
| 67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH | ||||
| 67832-16100 |
EL3#,NL30..5DS |
1 | ||
| 67831-16150 |
EL3#,NL30..5DS COLD SPEC |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-16020 |
EL3#,NL30..5DS COLD SPEC |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-16020 |
EL3#,NL30..5DS COLD SPEC |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-16220 |
EL3#,NL30..5DS |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
EL3#,NL30..5DS |
34 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-16220 |
EL3#,NL30..5DS |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-16170 |
EL3#,NL30..5DS *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-16170 |
EL3#,NL30..5DS *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-16160 |
EL3#,NL30..5DS |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-16080 |
EL3#,NL30..5DS..(CUT,EX,SOP,VX) |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-10020 |
EL3#,NL30 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-90A00 |
EL3#,NL30 |
2 | ||
| Common parts | ||||
| 90179-05032 | ||||
| 90333-30002 | ||||
| 90541-09006 | ||||
| 90541-09053 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||

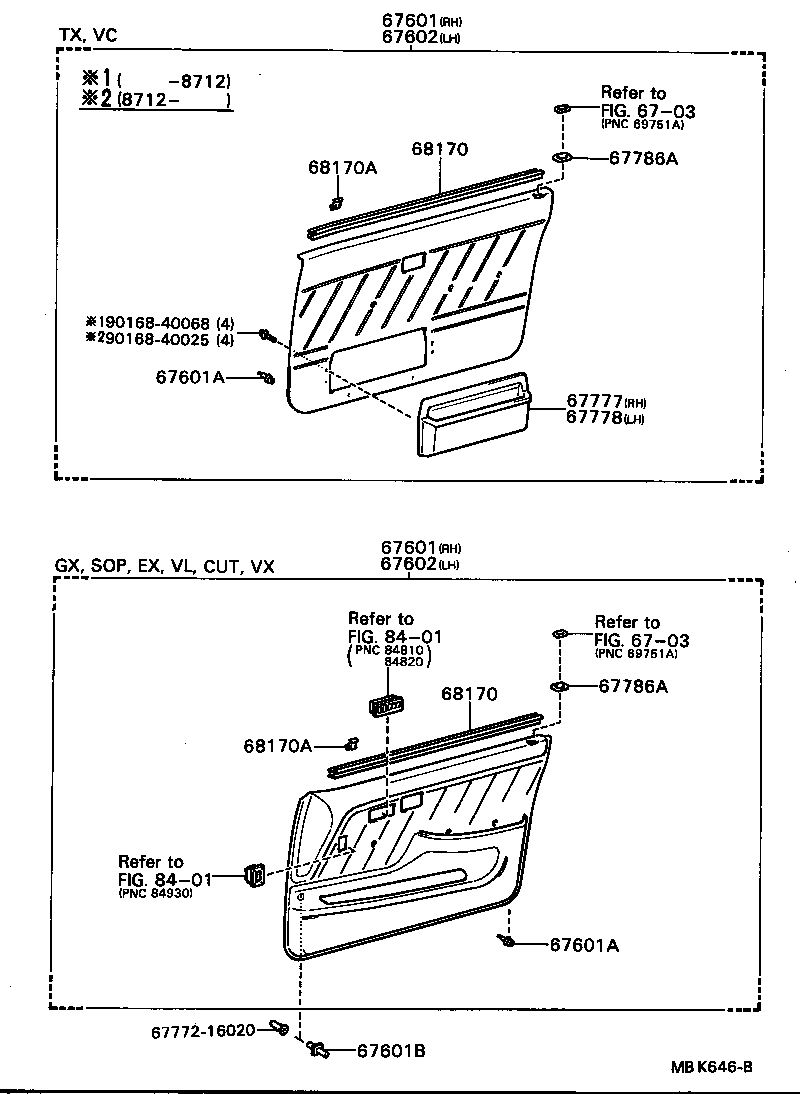

ILLUST NO. 2 OF 2(8605- )5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1663001 |
EL30..5DS..(CUT,SOP) BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1663005 |
EL30..5DS..(CUT,SOP) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1663004 |
EL30..5DS..(CUT,SOP) BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1659004 |
EL30..5DS..(CUT,SOP) *SOM,*CE,*ACU,*SOS,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1659001 |
EL30..5DS..(CUT,SOP) *SOM,*CE,*ACU,*SOS,W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1663001 |
EL30..5DS..(CUT,SOP) BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1663005 |
EL30..5DS..(CUT,SOP) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1663004 |
EL30..5DS..(CUT,SOP) BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1659004 |
EL30..5DS..(CUT,SOP) *SOM,*CE,*ACU,*SOS,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1659001 |
EL30..5DS..(CUT,SOP) *SOM,*CE,*ACU,*SOS,W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
EL3#..5DS..(CUT,EX,SOP,VX) |
18 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
EL3#..5DS..(CUT,EX,SOP,VX) |
18 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0706804 |
EL3#,NL30..5DS..(CUT,EX,GX,SOP,VL,VX) BLUE |
2 | ||
| 90467-0706805 |
EL3#,NL30..5DS..(CUT,EX,GX,SOP,VL,VX) DARK BEIGE |
2 | ||
| 90467-0706801 |
EL3#,NL30..5DS..(CUT,EX,GX,SOP,VL,VX) BLACK |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1651004 |
EL30..5DS..(CUT,SOP) BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1651001 |
EL30..5DS..(CUT,SOP) BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1651005 |
EL30..5DS..(CUT,SOP) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1647004 |
EL30..5DS..(CUT,SOP) *SOM,*CE,*ACU,*SOS,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1647001 |
EL30..5DS..(CUT,SOP) *SOM,*CE,*ACU,*SOS,W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1651004 |
EL30..5DS..(CUT,SOP) BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1651001 |
EL30..5DS..(CUT,SOP) BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1651005 |
EL30..5DS..(CUT,SOP) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1647004 |
EL30..5DS..(CUT,SOP) *SOM,*CE,*ACU,*SOS,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1647001 |
EL30..5DS..(CUT,SOP) *SOM,*CE,*ACU,*SOS,W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-16080 |
EL3#,NL30..5DS..(CUT,EX,SOP,VX) |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-16080 |
EL3#,NL30..5DS..(CUT,EX,SOP,VX) |
2 | ||
| Common parts | ||||
| 67772-16020 | ||||
| 90168-40025 | ||||
| 90168-40068 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 8401 | ||||
