EL30-ZHKFS (1986)
Toyota Corsa/Tercel
(8605- )4F

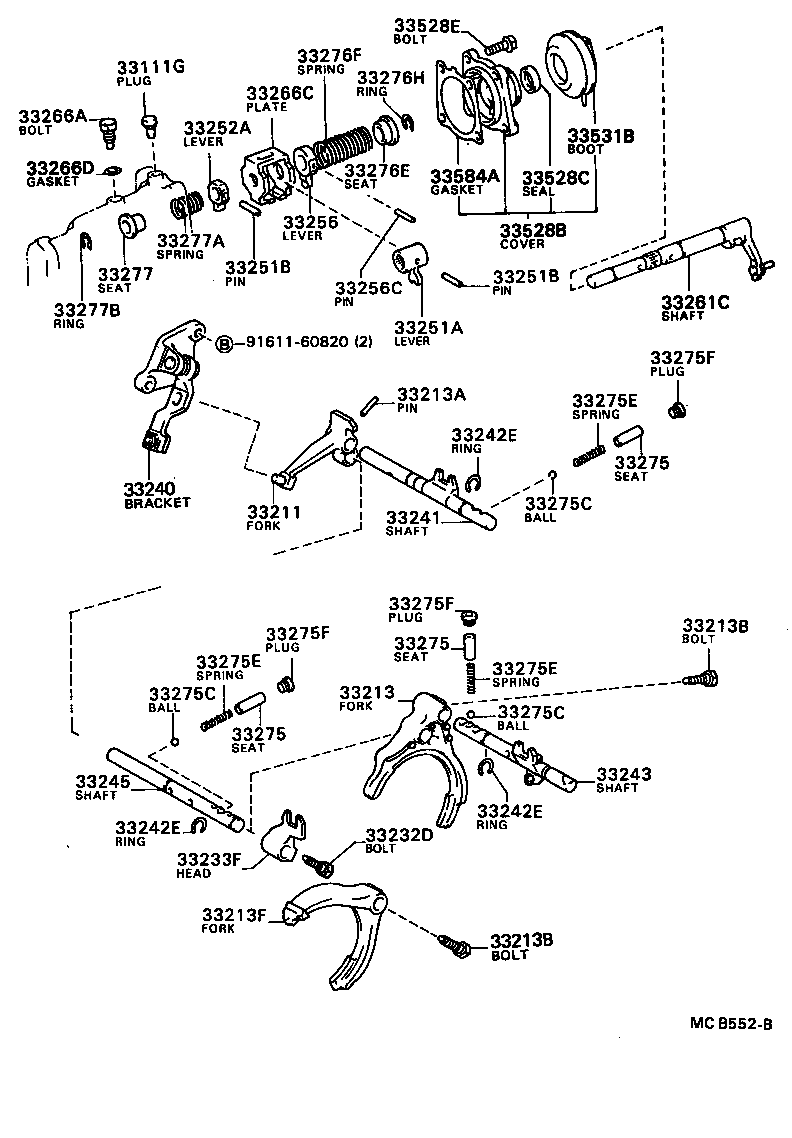

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03080 |
EL3#,NL30..MTM |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12030 |
EL3#..4F |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-10011 |
EL3#,NL30..MTM |
1 | ||
| 33212-10010 |
EL3#,NL30..MTM..(CBR,TD) |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
EL3#..4F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06052 |
EL3#,NL30..MTM |
3 | ||
| 90105-06115 |
EL3#,NL30..MTM |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06052 |
EL3#,NL30..MTM |
3 | ||
| 90105-06115 |
EL3#,NL30..MTM |
3 | ||
| 33213F - FORK, 3RD & 4TH SHIFT | ||||
| 33213-10020 |
EL3#,NL30..MTM..(CBR,TD) |
1 | ||
| 33213-10021 |
EL3#,NL30..MTM |
1 | ||
| 33232D - BOLT (FOR SHIFT HEAD SET) | ||||
| 90105-06052 |
EL3#,NL30..MTM |
1 | ||
| 33233F - HEAD, 3RD & 4TH SHIFT | ||||
| 33232-10020 |
EL3#,NL30..MTM..(CBR,TD) |
1 | ||
| 33232-10021 |
EL3#,NL30..MTM..(CBR,TD) |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-10011 |
EL3#,NL30..MTM..(CBR,TD) |
1 | ||
| 33240-10010 |
EL3#,NL30..MTM |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-10030 |
EL3#..4F |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
EL3#,NL30..MTM |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
EL3#,NL30..MTM |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
EL3#,NL30..MTM |
4 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33205-10070 |
EL3#,NL30..MTM..(CBR,TD) |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-10040 |
EL3#,NL30..MTM..(CBR,TD) |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-10050 |
EL3#,NL30..MTM |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
EL3#,NL30..MTM 長さ=25.5 |
2 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
EL3#,NL30..MTM 長さ=25.5 |
2 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-12010 |
EL3#,NL30..MTM |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-12021 |
EL3#,NL30..MTM |
1 | ||
| 33256C - PIN, SLOTTED SPRING (FOR SELECT INNER LEVER) | ||||
| 90254-05002 |
EL3#,NL30..MTM |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-10050 |
EL3#,NL30..MTM..(CBR,TD) |
1 | ||
| 33266A - BOLT (FOR SHIFT INTER LOCK PLATE) | ||||
| 90109-12019 |
EL3#,NL30..MTM |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-12021 |
EL3#,NL30..MTM |
1 | ||
| 33266D - GASKET (FOR SHIFT INTER LOCK PLATE) | ||||
| 90430-12008 |
EL3#,NL30..MTM |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
EL3#,NL30..MTM 外径=10.7 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
EL3#,NL30..MTM 外径=10.7 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
EL3#,NL30..MTM 外径=10.7 |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
EL3#,NL30..MTM |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
EL3#,NL30..MTM |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
EL3#,NL30..MTM |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14077 |
EL3#,NL30..MTM |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14077 |
EL3#,NL30..MTM |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14077 |
EL3#,NL30..MTM |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
EL3#,NL30..MTM |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
EL3#,NL30..MTM |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
EL3#,NL30..MTM |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-12021 |
EL3#,NL30..MTM |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-16081 |
EL3#,NL30..MTM..(CBR,TD) |
1 | ||
| 33276H - RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) | ||||
| 90520-15003 |
EL3#,NL30..MTM |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-12010 |
EL3#,NL30..MTM |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-16082 |
EL3#,NL30..MTM..(CBR,TD) |
1 | ||
| 33277B - RING, E (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90523-12003 |
EL3#,NL30..MTM |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-12061 |
EL3#,NL30..MTM |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18006 |
EL3#,NL30..MTM |
1 | ||
| 33528E - BOLT (FOR CONTROL SHAFT COVER) | ||||
| 90119-10288 |
EL3#,NL30..MTM *10−1.25PX25−19.8 |
2 | ||
| 91611-61025 |
EL3#,NL30..MTM *10−1.25PX25−25 |
2 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-12020 |
EL3#,NL30..MTM |
1 | ||
| 33584A - GASKET, CONTROL SHIFT LEVER RETAINER | ||||
| 33584-12050 |
EL3#,NL30..MTM |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
