EL30-ZHHNS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )CUT,GX,SOP,VL

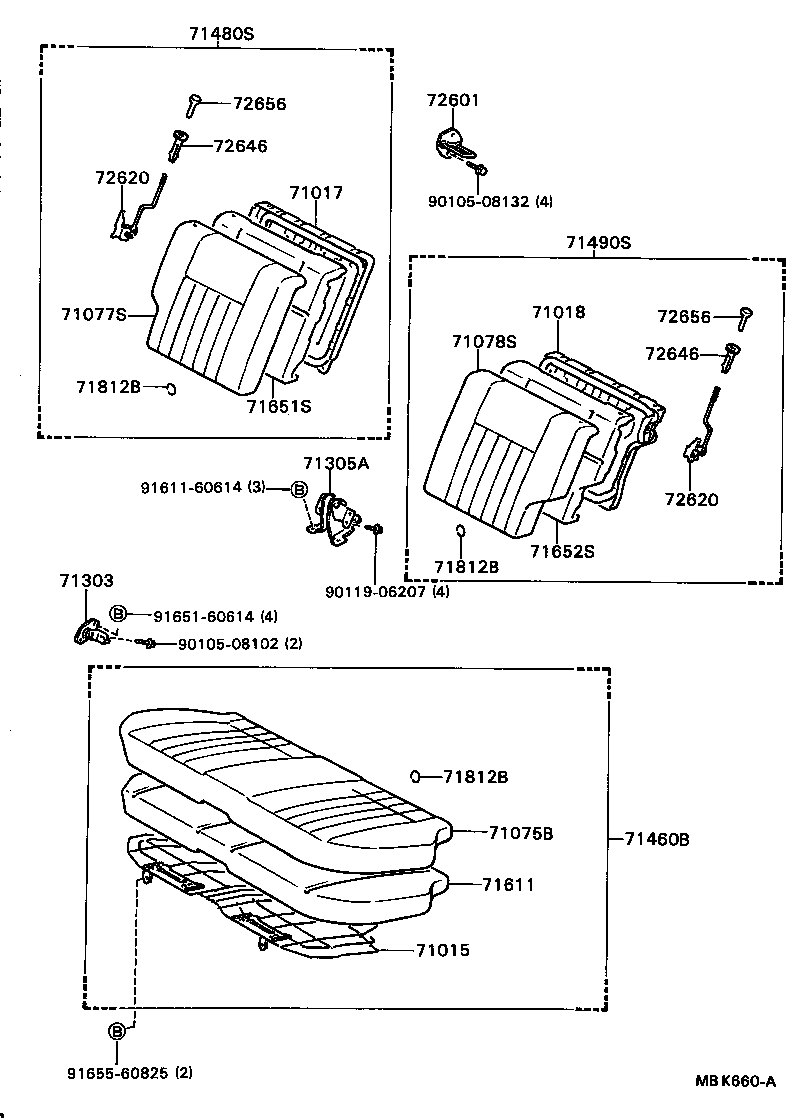

Click highlighted areas on diagram

diagram 71015 71017 71018 71075B 71077S 71078S 71303 71305A 71460B 71480S 71490S 71611 71651S 71652S 71812B 71812B 71812B 72601 72620 72620 72646 72646 72656 72656 9010508102 9010508132 9011906207 9161160614 9165160614 9165560825
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-16070

EL3#,NL30..CUT,GX,SOP,TX,VC,VL

 1
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-16130

EL3#,NL30..CUT,EX,GP,GX,SOP,SX,VL,VS,VX

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-16090

EL3#,NL30..CUT,EX,GP,GX,SOP,SX,VL,VS,VX

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-1616004

EL3#,NL30..GX,VL

FB,BLUE,BLUE,TRIM8#

 1
71065-1616003

EL3#,NL30..GX,VL

FB,GRAY,GRAY,TRIM2#

 1
71065-1616005

EL3#,NL30..GX,VL

FB,BEIGE,BEIGE,TRIM4#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-1688004

EL3#,NL30..GX,VL

FB,BLUE,BLUE,TRIM8#

 1
71077-1688005

EL3#,NL30..GX,VL

FB,BEIGE,BEIGE,TRIM4#

 1
71077-1688003

EL3#,NL30..GX,VL

FB,GRAY,GRAY,TRIM2#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-1675004

EL3#,NL30..GX,VL

FB,BLUE,BLUE,TRIM8#

 1
71078-1675003

EL3#,NL30..GX,VL

FB,GRAY,GRAY,TRIM2#

 1
71078-1675005

EL3#,NL30..GX,VL

FB,BEIGE,BEIGE,TRIM4#

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-16040

EL3#,NL30

 2
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-16050

EL3#,NL30..CUT,EX,GP,GX,SOP,SX,VL,VS,VX

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-1635003

EL3#,NL30..GX,VL

FB,GRAY,GRAY,TRIM2#

 1
71560-1635004

EL3#,NL30..GX,VL

FB,BLUE,BLUE,TRIM8#

 1
71560-1635005

EL3#,NL30..GX,VL

FB,BEIGE,BEIGE,TRIM4#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-1G04003

EL3#,NL30..GX,VL

FB,GRAY,GRAY,TRIM2#

 1
71480-1G04004

EL3#,NL30..GX,VL

FB,BLUE,BLUE,TRIM8#

 1
71480-1G04005

EL3#,NL30..GX,VL

FB,BEIGE,BEIGE,TRIM4#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-1669005

EL3#,NL30..GX,VL

FB,BEIGE,BEIGE,TRIM4#

 1
71490-1669004

EL3#,NL30..GX,VL

FB,BLUE,BLUE,TRIM8#

 1
71490-1669003

EL3#,NL30..GX,VL

FB,GRAY,GRAY,TRIM2#

 1
71611 - PAD, REAR SEAT CUSHION
71611-16170

EL3#,NL30..CUT,GX,SOP,TX,VC,VL

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-16260

EL3#,NL30..CUT,GX,SOP,VL

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-16110

EL3#,NL30..CUT,GX,SOP,VL

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

EL3#,NL30

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

EL3#,NL30

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

EL3#,NL30

 1
72601 - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-16070

EL3#,NL30

 2
72620 - LOCK ASSY, REAR SEAT BACK
72630-16140

EL3#,NL30

RH

 1
72640-16100

EL3#,NL30

LH

 1
72620 - LOCK ASSY, REAR SEAT BACK
72630-16140

EL3#,NL30

RH

 1
72640-16100

EL3#,NL30

LH

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-1601004

EL3#,NL30

BLUE,BLUE,TRIM8#

 2
72646-1601005

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

BEIGE,DARK BEIGE,TRIM4#

 2
72646-1601001

EL3#,NL30

BLACK,BLACK,TRIM2#

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-1601004

EL3#,NL30

BLUE,BLUE,TRIM8#

 2
72646-1601005

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

BEIGE,DARK BEIGE,TRIM4#

 2
72646-1601001

EL3#,NL30

BLACK,BLACK,TRIM2#

 2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72658-2301004

EL3#,NL30

BLUE,BLUE,TRIM8#

 2
72658-2301015

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

BEIGE,DARK BEIGE,TRIM4#

 2
72658-2301001

EL3#,NL30

BLACK,BLACK,TRIM2#

 2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72658-2301004

EL3#,NL30

BLUE,BLUE,TRIM8#

 2
72658-2301015

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

BEIGE,DARK BEIGE,TRIM4#

 2
72658-2301001

EL3#,NL30

BLACK,BLACK,TRIM2#

 2
Common parts
90105-08102
90105-08132
90119-06207
91611-60614
91651-60614
91655-60825
