EL30-ZHHNS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

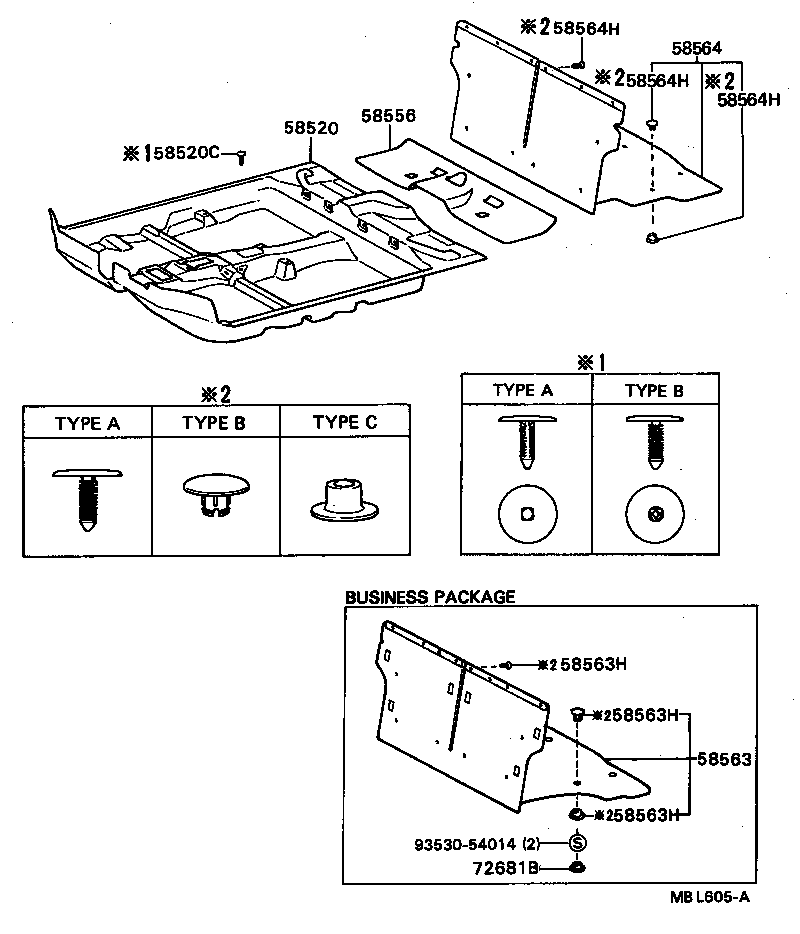

Click highlighted areas on diagram

diagram 58520 58520C 58556 58563 58563H 58563H 58563H 58564 58564H 58564H 58564H 72681B 9353054014
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-1667004

EL3#..5DS..(3FC,4F)

BLUE,BLUE,TRIM8#

 1
58510-1667005

EL3#..5DS..(3FC,4F)

BEIGE,DARK BEIGE,TRIM4#

 1
58510-1669001

EL3#..5DS..(3FC,4F)

COLD SPEC,BLACK,BLACK,TRIM2#

 1
58510-1669004

EL3#..5DS..(3FC,4F)

COLD SPEC,BLUE,BLUE,TRIM8#

 1
58510-1667001

EL3#..5DS..(3FC,4F)

BLACK,BLACK,TRIM2#

 1
58510-1669005

EL3#..5DS..(3FC,4F)

COLD SPEC,BEIGE,DARK BEIGE,TRIM4#

 1
58510-1681001

EL3#..5DS..(3FC,4F)

BLACK,BLACK,TRIM2#

 1
58510-1681005

EL3#..5DS..(3FC,4F)

BEIGE,DARK BEIGE,TRIM4#

 1
58510-1681004

EL3#..5DS..(3FC,4F)

BLUE,BLUE,TRIM8#

 1
58510-1684001

EL3#..5DS..(3FC,4F)

COLD SPEC,BLACK,BLACK,TRIM2#

 1
58510-1684005

EL3#..5DS..(3FC,4F)

COLD SPEC,BEIGE,DARK BEIGE,TRIM4#

 1
58510-1684004

EL3#..5DS..(3FC,4F)

COLD SPEC,BLUE,BLUE,TRIM8#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0601630

EL3#,NL30..5DS

TYPE A,BLUE,BLUE,TRIM8#

 3
90467-0603701

EL3#,NL30

TYPE B,BLACK,BLACK,TRIM2#

 3
90467-0601645

EL3#,NL30..5DS

TYPE A,BEIGE,DARK BEIGE,TRIM4#

 3
90467-0601611

EL3#,NL30..5DS

TYPE A,BLACK,BLACK,TRIM2#

 3
90467-0603714

EL3#,NL30

TYPE B,BLUE,BLUE,TRIM8#

 3
90467-0603725

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

TYPE B,,DARK BEIGE

 3
58564 - CARPET, REAR FLOOR
58571-1614001

EL3#,NL30..CUT,GX,SOP,VL

BLACK,BLACK,TRIM2#

 1
58571-1614004

EL3#,NL30..CUT,GX,SOP,VL

BLUE,BLUE,TRIM8#

 1
58571-1614005

EL3#,NL30..CUT,GX,SOP,VL

BEIGE,DARK BEIGE,TRIM4#

 1
58564H - CLIP(FOR REAR FLOOR CARPET)
90467-0603701

EL3#,NL30..CUT,EX,GP,GX,SOP,SX,VL,VS,VX

TYPE A,BLACK,BLACK,TRIM2#

 14
90467-0603725

EL3#,NL30..CUT,EX,GX,SOP,VL,VX

TYPE A,BEIGE,DARK BEIGE,TRIM4#

 14
90467-1103701

EL3#,NL30

TYPE B,BLACK,BLACK,TRIM2#

 6
90467-1103704

EL3#,NL30

TYPE B,BLUE,BLUE,TRIM8#

 6
90467-1303704

EL3#,NL30

TYPE C,BLUE,BLUE,TRIM8#

 6
90467-1303705

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

TYPE C,BEIGE,DARK BEIGE,TRIM4#

 6
90467-0603714

EL3#,NL30..CUT,EX,GP,GX,SOP,SX,VL,VS,VX

TYPE A,BLUE,BLUE,TRIM8#

 14
90467-1303701

EL3#,NL30

TYPE C,BLACK,BLACK,TRIM2#

 6
90467-1103705

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

TYPE B,BEIGE,DARK BEIGE,TRIM4#

 6
58564H - CLIP(FOR REAR FLOOR CARPET)
90467-0603701

EL3#,NL30..CUT,EX,GP,GX,SOP,SX,VL,VS,VX

TYPE A,BLACK,BLACK,TRIM2#

 14
90467-0603725

EL3#,NL30..CUT,EX,GX,SOP,VL,VX

TYPE A,BEIGE,DARK BEIGE,TRIM4#

 14
90467-1103701

EL3#,NL30

TYPE B,BLACK,BLACK,TRIM2#

 6
90467-1103704

EL3#,NL30

TYPE B,BLUE,BLUE,TRIM8#

 6
90467-1303704

EL3#,NL30

TYPE C,BLUE,BLUE,TRIM8#

 6
90467-1303705

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

TYPE C,BEIGE,DARK BEIGE,TRIM4#

 6
90467-0603714

EL3#,NL30..CUT,EX,GP,GX,SOP,SX,VL,VS,VX

TYPE A,BLUE,BLUE,TRIM8#

 14
90467-1303701

EL3#,NL30

TYPE C,BLACK,BLACK,TRIM2#

 6
90467-1103705

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

TYPE B,BEIGE,DARK BEIGE,TRIM4#

 6
58564H - CLIP(FOR REAR FLOOR CARPET)
90467-0603701

EL3#,NL30..CUT,EX,GP,GX,SOP,SX,VL,VS,VX

TYPE A,BLACK,BLACK,TRIM2#

 14
90467-0603725

EL3#,NL30..CUT,EX,GX,SOP,VL,VX

TYPE A,BEIGE,DARK BEIGE,TRIM4#

 14
90467-1103701

EL3#,NL30

TYPE B,BLACK,BLACK,TRIM2#

 6
90467-1103704

EL3#,NL30

TYPE B,BLUE,BLUE,TRIM8#

 6
90467-1303704

EL3#,NL30

TYPE C,BLUE,BLUE,TRIM8#

 6
90467-1303705

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

TYPE C,BEIGE,DARK BEIGE,TRIM4#

 6
90467-0603714

EL3#,NL30..CUT,EX,GP,GX,SOP,SX,VL,VS,VX

TYPE A,BLUE,BLUE,TRIM8#

 14
90467-1303701

EL3#,NL30

TYPE C,BLACK,BLACK,TRIM2#

 6
90467-1103705

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

TYPE B,BEIGE,DARK BEIGE,TRIM4#

 6
Common parts
93530-54014
