Toyota Corsa/tercel EL30 MIRROR - JDM Part Detective

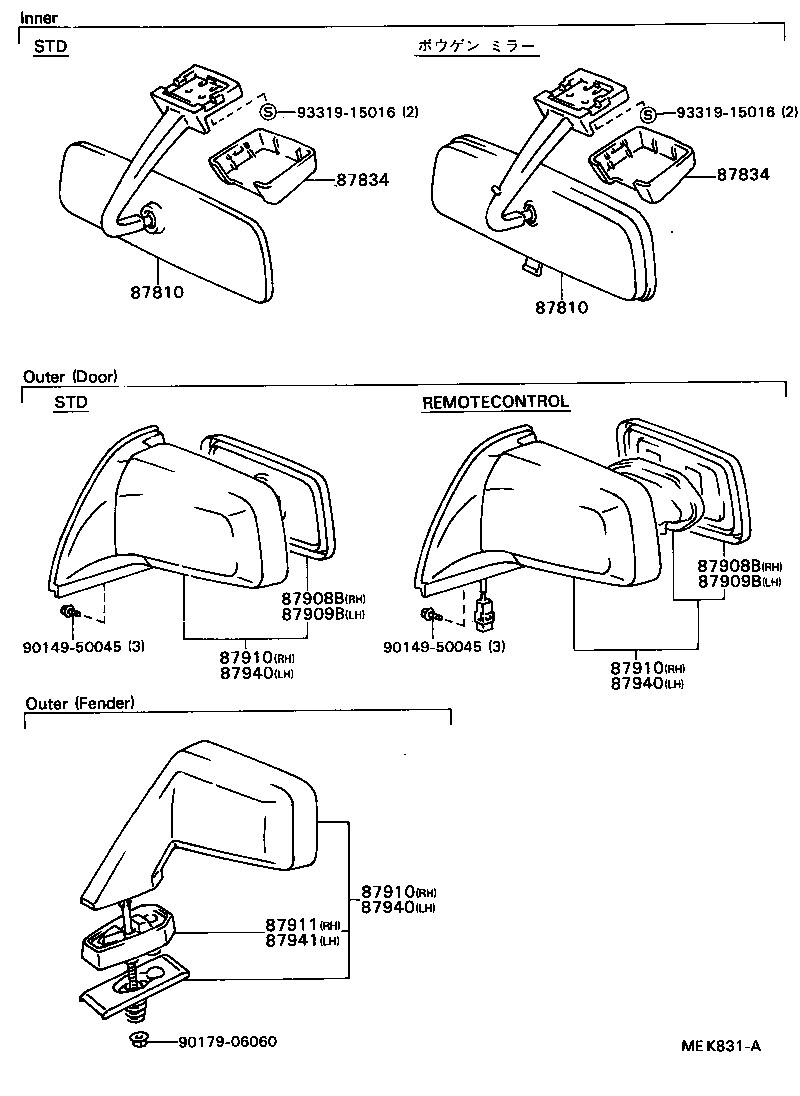

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1601004	EL30;EL31,NL30..TX,UX,VC,VU BLUE,TRIM8#	05/1988 - 09/1990	1
87810-1602004	EL31..UX,VU;EL30..CUT,GX,SOP,VL ﾎﾞｳｹﾞﾝﾐﾗ-,BLUE,TRIM8#	05/1988 - 09/1990	1
87810-1602001	EL31..UX,VU;EL30..CUT,GX,SOP,VL ﾎﾞｳｹﾞﾝﾐﾗ-,NEW BLACK,TRIM2#	05/1988 - 09/1990	1
87810-1601001	EL30;EL31,NL30..TX,UX,VC,VU NEW BLACK,TRIM2#	05/1988 - 09/1990	1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1601004	EL30;EL31,NL30..TX,UX,VC,VU BLUE,TRIM8#	05/1988 - 09/1990	1
87810-1602004	EL31..UX,VU;EL30..CUT,GX,SOP,VL ﾎﾞｳｹﾞﾝﾐﾗ-,BLUE,TRIM8#	05/1988 - 09/1990	1
87810-1602001	EL31..UX,VU;EL30..CUT,GX,SOP,VL ﾎﾞｳｹﾞﾝﾐﾗ-,NEW BLACK,TRIM2#	05/1988 - 09/1990	1
87810-1601001	EL30;EL31,NL30..TX,UX,VC,VU NEW BLACK,TRIM2#	05/1988 - 09/1990	1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008053	EL3#,NL30 SHADOW GRAY,TRIM2#	05/1988 - 09/1990	1
87834-2008034	EL3#,NL30 DEEP BLUE,TRIM8#	05/1988 - 09/1990	1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008053	EL3#,NL30 SHADOW GRAY,TRIM2#	05/1988 - 09/1990	1
87834-2008034	EL3#,NL30 DEEP BLUE,TRIM8#	05/1988 - 09/1990	1
87908B - MIRROR SUB-ASSY, RH
87931-20400	EL3#,NL30..CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX ﾄﾞｱﾘﾓ-ﾄｺﾝﾄﾛ-ﾙﾐﾗ-	05/1988 - 09/1990	1
87908B - MIRROR SUB-ASSY, RH
87931-20400	EL3#,NL30..CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX ﾄﾞｱﾘﾓ-ﾄｺﾝﾄﾛ-ﾙﾐﾗ-	05/1988 - 09/1990	1
87909B - MIRROR SUB-ASSY, LH
87961-20420	EL3#,NL30..CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX ﾄﾞｱﾘﾓ-ﾄｺﾝﾄﾛ-ﾙﾐﾗ-	05/1988 - 09/1990	1
87909B - MIRROR SUB-ASSY, LH
87961-20420	EL3#,NL30..CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX ﾄﾞｱﾘﾓ-ﾄｺﾝﾄﾛ-ﾙﾐﾗ-	05/1988 - 09/1990	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-16300	EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX	05/1988 - 09/1990	1
87910-1642202	EL3#,NL30..5DS..(CUT,EX,SOP,VX) RED,3E6	05/1988 - 09/1990	1
87910-1642208	EL3#,NL30..5DS..(CUT,EX,SOP,VX) WHITE,041	05/1988 - 09/1990	1
87910-1642212	EL3#,NL30..5DS..(CUT,EX,SOP,VX) RED MICA,3H4	05/1988 - 09/1990	1
87910-1642214	EL3#,NL30..5DS..(CUT,EX,SOP,VX) LIGHT BLUE METALLIC,8D8	05/1988 - 09/1990	1
87910-1642207	EL30..5DS..(CUT,SOP) TURQUOIS METALLIC,741	05/1988 - 09/1990	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-16300	EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX	05/1988 - 09/1990	1
87910-1642202	EL3#,NL30..5DS..(CUT,EX,SOP,VX) RED,3E6	05/1988 - 09/1990	1
87910-1642208	EL3#,NL30..5DS..(CUT,EX,SOP,VX) WHITE,041	05/1988 - 09/1990	1
87910-1642212	EL3#,NL30..5DS..(CUT,EX,SOP,VX) RED MICA,3H4	05/1988 - 09/1990	1
87910-1642214	EL3#,NL30..5DS..(CUT,EX,SOP,VX) LIGHT BLUE METALLIC,8D8	05/1988 - 09/1990	1
87910-1642207	EL30..5DS..(CUT,SOP) TURQUOIS METALLIC,741	05/1988 - 09/1990	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-16300	EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX	05/1988 - 09/1990	1
87910-1642202	EL3#,NL30..5DS..(CUT,EX,SOP,VX) RED,3E6	05/1988 - 09/1990	1
87910-1642208	EL3#,NL30..5DS..(CUT,EX,SOP,VX) WHITE,041	05/1988 - 09/1990	1
87910-1642212	EL3#,NL30..5DS..(CUT,EX,SOP,VX) RED MICA,3H4	05/1988 - 09/1990	1
87910-1642214	EL3#,NL30..5DS..(CUT,EX,SOP,VX) LIGHT BLUE METALLIC,8D8	05/1988 - 09/1990	1
87910-1642207	EL30..5DS..(CUT,SOP) TURQUOIS METALLIC,741	05/1988 - 09/1990	1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-16090	EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX	05/1988 - 09/1990	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16340	EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX	05/1988 - 09/1990	1
87940-1647202	EL3#,NL30..5DS..(CUT,EX,SOP,VX) RED,3E6	05/1988 - 09/1990	1
87940-1647208	EL3#,NL30..5DS..(CUT,EX,SOP,VX) WHITE,041	05/1988 - 09/1990	1
87940-1647207	EL30..5DS..(CUT,SOP) TURQUOIS METALLIC,741	05/1988 - 09/1990	1
87940-1647214	EL3#,NL30..5DS..(CUT,EX,SOP,VX) LIGHT BLUE METALLIC,8D8	05/1988 - 09/1990	1
87940-1647212	EL3#,NL30..5DS..(CUT,EX,SOP,VX) RED MICA,3H4	05/1988 - 09/1990	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16340	EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX	05/1988 - 09/1990	1
87940-1647202	EL3#,NL30..5DS..(CUT,EX,SOP,VX) RED,3E6	05/1988 - 09/1990	1
87940-1647208	EL3#,NL30..5DS..(CUT,EX,SOP,VX) WHITE,041	05/1988 - 09/1990	1
87940-1647207	EL30..5DS..(CUT,SOP) TURQUOIS METALLIC,741	05/1988 - 09/1990	1
87940-1647214	EL3#,NL30..5DS..(CUT,EX,SOP,VX) LIGHT BLUE METALLIC,8D8	05/1988 - 09/1990	1
87940-1647212	EL3#,NL30..5DS..(CUT,EX,SOP,VX) RED MICA,3H4	05/1988 - 09/1990	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16340	EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX	05/1988 - 09/1990	1
87940-1647202	EL3#,NL30..5DS..(CUT,EX,SOP,VX) RED,3E6	05/1988 - 09/1990	1
87940-1647208	EL3#,NL30..5DS..(CUT,EX,SOP,VX) WHITE,041	05/1988 - 09/1990	1
87940-1647207	EL30..5DS..(CUT,SOP) TURQUOIS METALLIC,741	05/1988 - 09/1990	1
87940-1647214	EL3#,NL30..5DS..(CUT,EX,SOP,VX) LIGHT BLUE METALLIC,8D8	05/1988 - 09/1990	1
87940-1647212	EL3#,NL30..5DS..(CUT,EX,SOP,VX) RED MICA,3H4	05/1988 - 09/1990	1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87941-16090	EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX	05/1988 - 09/1990	1
Common parts
90149-50045
90179-06060
93319-15016

EL30-ZHHFS (1988)

(8805- )
