EL30-ZHHFS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8605- )3FC,4F

Click highlighted areas on diagram

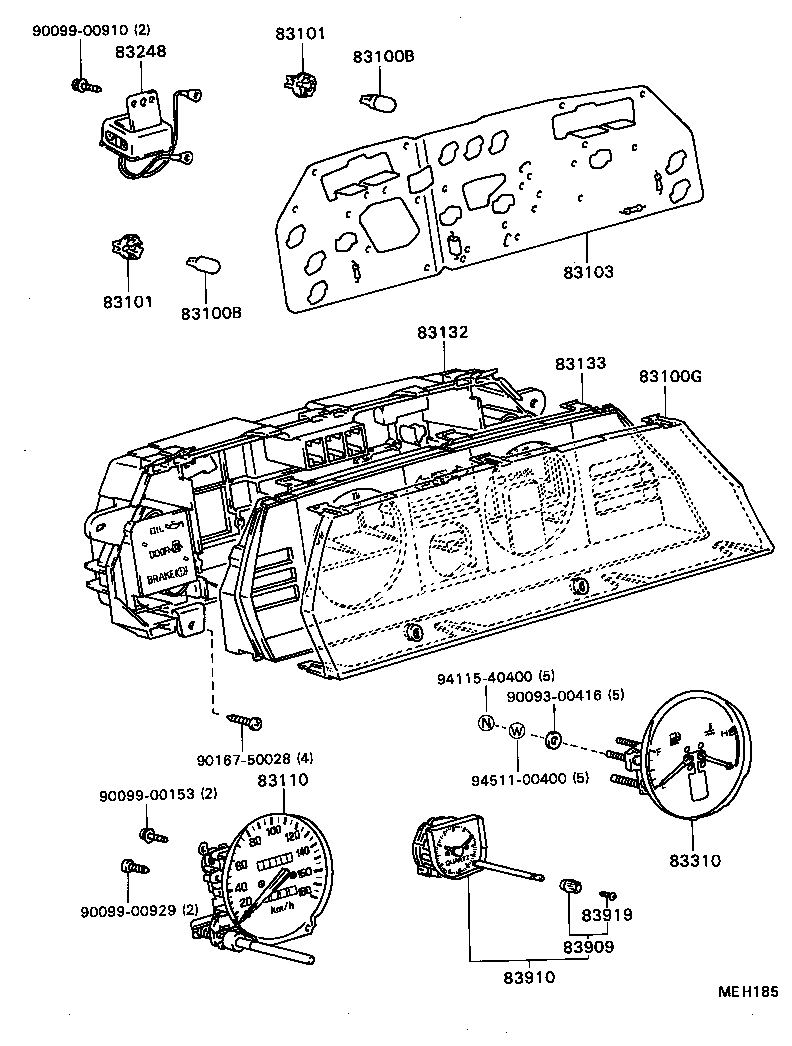

diagram 83100B 83100B 83100G 83101 83101 83103 83110 83132 83133 83248 83310 83909 83910 83919 9009300416 9009900153 9009900910 9009900929 9016750028 9411540400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

EL3#,NL30

12V 3.4W,12V 3.4W

 11
83109-24030

EL3#..3FC,4F

12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP

 4
83100B - BULB, COMBINATION METER, NO.1
99132-12034

EL3#,NL30

12V 3.4W,12V 3.4W

 11
83109-24030

EL3#..3FC,4F

12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP

 4
83100G - GLASS, COMBINATION METER
83138-16470

EL3#..3FC,4F

W/CLOCK

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

BULB,12V 3.4W

 12
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

BULB,12V 3.4W

 12
83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
83247-1G530

EL3#..3FC,4F

W/CLOCK

 1
83110 - SPEEDOMETER ASSY
83110-16280

EL3#..3FC,4F

 1
83132 - CASE, COMBINATION METER
83132-16890

EL3#..3FC,4F

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-1G030

EL3#..3FC,4F

W/CLOCK

 1
83248 - CHIME, SPEED WARNING
86640-16050

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-16610

EL3#..3FC,4F

 1
83909 - KNOB, CLOCK
83909-14012

EL3#..3FC,4F

 1
83910 - CLOCK ASSY
83910-16120

EL3#..3FC,4F

 1
83919 - SCREW, CLOCK
83919-14012

EL3#..3FC,4F

 1
Common parts
90093-00416
90099-00153
90099-00910
90099-00929
90167-50028
94115-40400
94511-00400

ILLUST NO. 2 OF 3(8605- )

Click highlighted areas on diagram

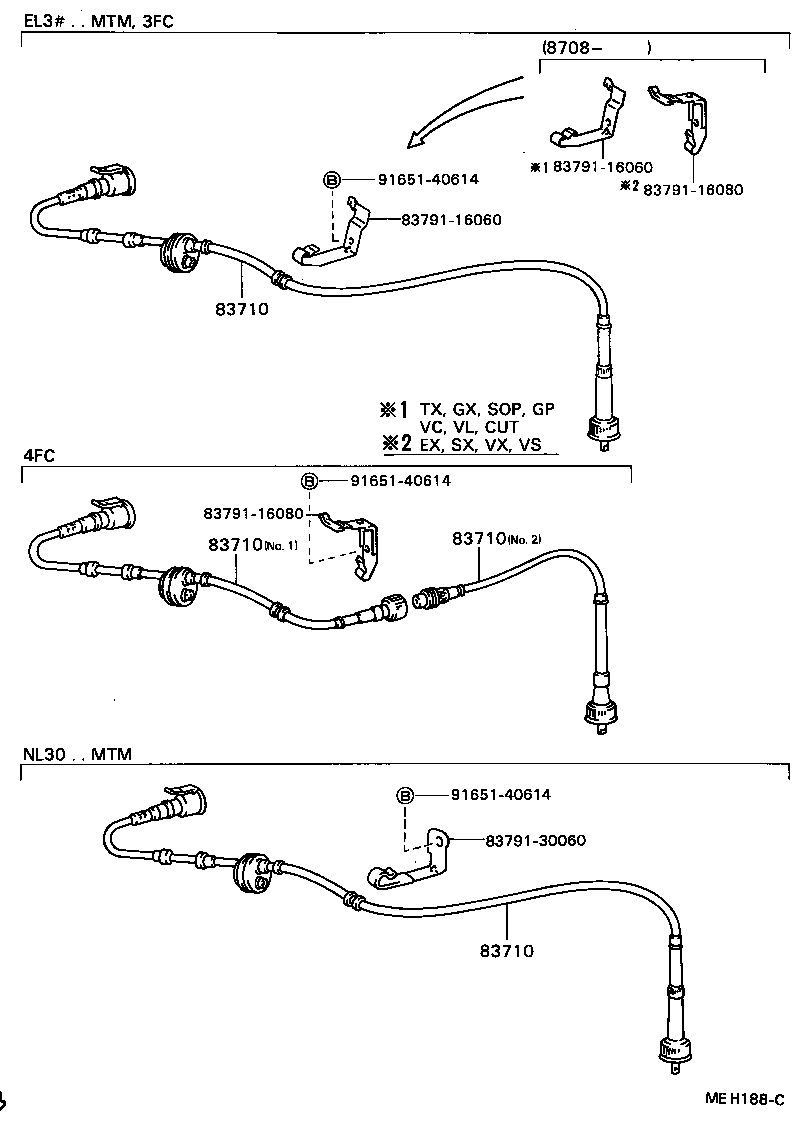

diagram 83710 83710 83710 83710 8379116060 8379116060 8379116080 8379116080 8379130060 9165140614 9165140614 9165140614
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-16180

EL3#..3FC

 1
83710-16181

EL3#..3FC

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-16180

EL3#..3FC

 1
83710-16181

EL3#..3FC

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-16180

EL3#..3FC

 1
83710-16181

EL3#..3FC

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-16180

EL3#..3FC

 1
83710-16181

EL3#..3FC

 1
Common parts
83791-16060
83791-16080
83791-30060
91651-40614
