EL30-ZHHFS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

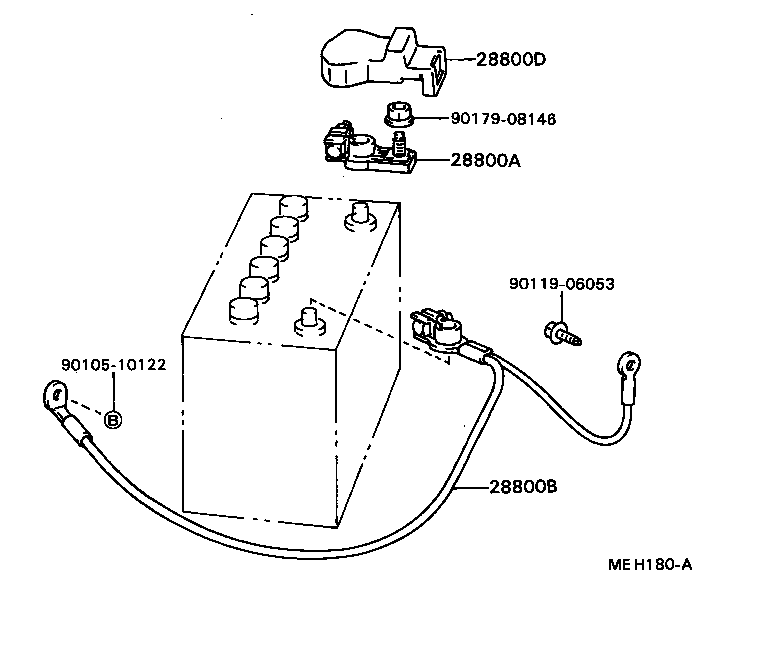

Click highlighted areas on diagram

diagram 28800A 28800B 28800D 9010510122 9011906053 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05027

2E,3E#..EL3#

 1
90982-05028

2E,3E#..EL3#

 1
28800B - CABLE, BATTERY TO GROUND
82123-16040

2E,3E#..EL3#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12190

2E,3E#..EL3#

 1
Common parts
90105-10122
90119-06053
90179-08146
