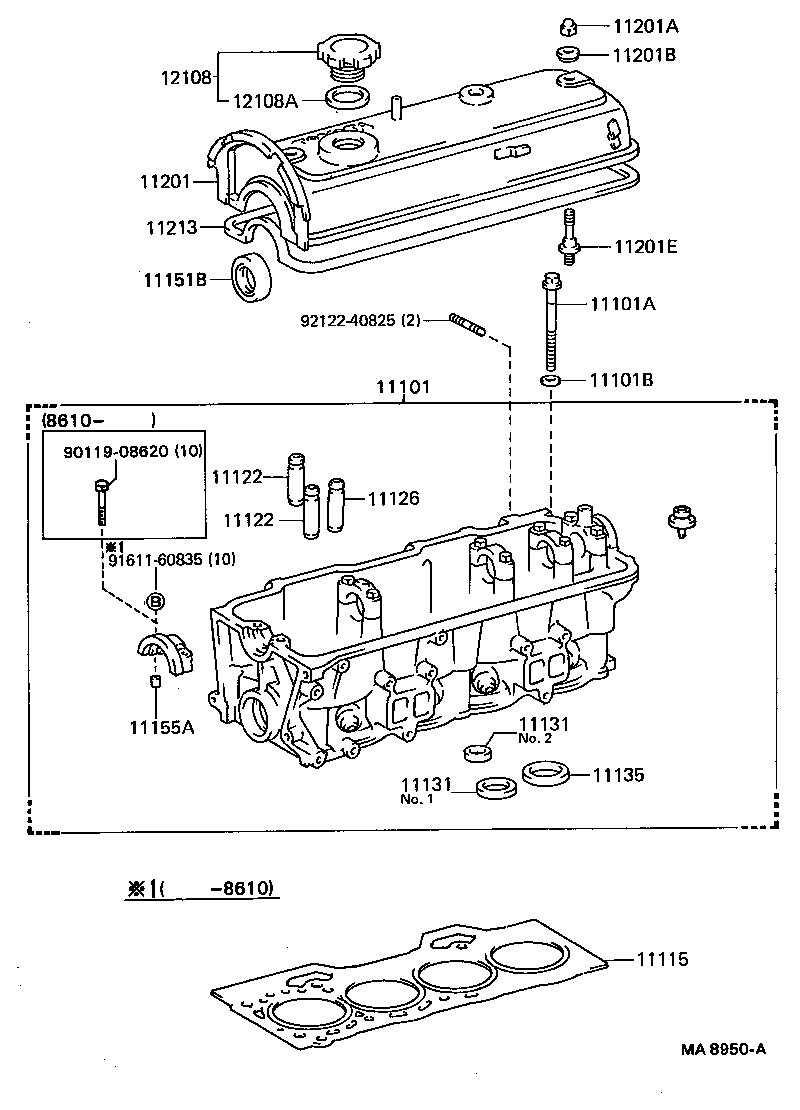

Toyota Corsa/tercel EL30 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-19156	2E..EL30	05/1986 - 05/1988	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-09002	2E,3E#..EL3#	05/1986 - 05/1988	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-09015	2E,3E#..EL3#	05/1986 - 05/1988	10
11115 - GASKET, CYLINDER HEAD
11115-11010	2E..EL30 厚さ=1.25	05/1986 - 12/1986	1
11115-11060	2E,3E..EL3#	12/1986 - 05/1987	1
11115-11010	2E,3E..EL3# 厚さ=1.25	05/1987 - 05/1988	1
11122 - BUSH, INTAKE VALVE GUIDE
11122-10040	2E,3E#..EL3# STD,STD	05/1986 - 05/1988	8
11123-10040	2E,3E#..EL3# O/S 0.05,O/S 0.05	05/1986 - 05/1988	8
11122 - BUSH, INTAKE VALVE GUIDE
11122-10040	2E,3E#..EL3# STD,STD	05/1986 - 05/1988	8
11123-10040	2E,3E#..EL3# O/S 0.05,O/S 0.05	05/1986 - 05/1988	8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-10040	2E,3E#..EL3# O/S 0.05,O/S 0.05	05/1986 - 05/1988	4
11122-10040	2E,3E#..EL3# STD,STD	05/1986 - 05/1988	4
11131 - SEAT, INTAKE VALVE
11132-10020	2E,3E..EL3# O/S 0.03,NO.1,O/S 0.03	05/1986 - 09/1986	4
11131-10020	2E,3E..EL3# STD,NO.1,STD	05/1986 - 09/1986	4
11138-10010	2E..EL30 O/S 0.03,NO.2,O/S 0.03	05/1986 - 05/1988	4
11131-11010	2E,3E#..EL3# STD,NO.1,STD	09/1986 - 05/1988	4
11137-10010	2E..EL30 STD,NO.2,STD	05/1986 - 05/1988	4
11132-11010	2E,3E#..EL3# O/S 0.03,NO.1,O/S 0.03	09/1986 - 05/1988	4
11131 - SEAT, INTAKE VALVE
11132-10020	2E,3E..EL3# O/S 0.03,NO.1,O/S 0.03	05/1986 - 09/1986	4
11131-10020	2E,3E..EL3# STD,NO.1,STD	05/1986 - 09/1986	4
11138-10010	2E..EL30 O/S 0.03,NO.2,O/S 0.03	05/1986 - 05/1988	4
11131-11010	2E,3E#..EL3# STD,NO.1,STD	09/1986 - 05/1988	4
11137-10010	2E..EL30 STD,NO.2,STD	05/1986 - 05/1988	4
11132-11010	2E,3E#..EL3# O/S 0.03,NO.1,O/S 0.03	09/1986 - 05/1988	4
11135 - SEAT, EXHAUST VALVE
11135-10020	2E..EL30 STD,STD	05/1986 - 05/1988	4
11136-10020	2E..EL30 O/S 0.03,O/S 0.03	05/1986 - 05/1988	4
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-35017	2E,3E#..EL3#	05/1986 - 05/1988	1
11155A - PIN, RING W/HEAD
90253-11021	2E,3E#..EL3#	05/1986 - 05/1988	4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-10010	2E,3E..EL3#	05/1986 - 05/1988	1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007	2E,3E..EL3#	05/1986 - 05/1988	2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09001	2E,3E..EL3#	05/1986 - 05/1988	2
11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET)
90116-08190	2E,3E..EL3#	05/1986 - 05/1988	2
11213 - GASKET, CYLINDER HEAD COVER
11213-10010	2E,3E..EL3#	05/1986 - 05/1988	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-11020	2E,3E..EL3#	08/1987 - 05/1988	1
12180-61010	2E,3E..EL3#	05/1986 - 08/1987	1
12108A - GASKET(FOR OIL FILLER CAP)
12195-71020	2E,3E..EL3#	05/1986 - 05/1988	1
Common parts
90119-08620
91611-60835
92122-40825

EL30-ZHHFS (1986)

(8605- )2E,3E
