EL30-ZHHDS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )TER

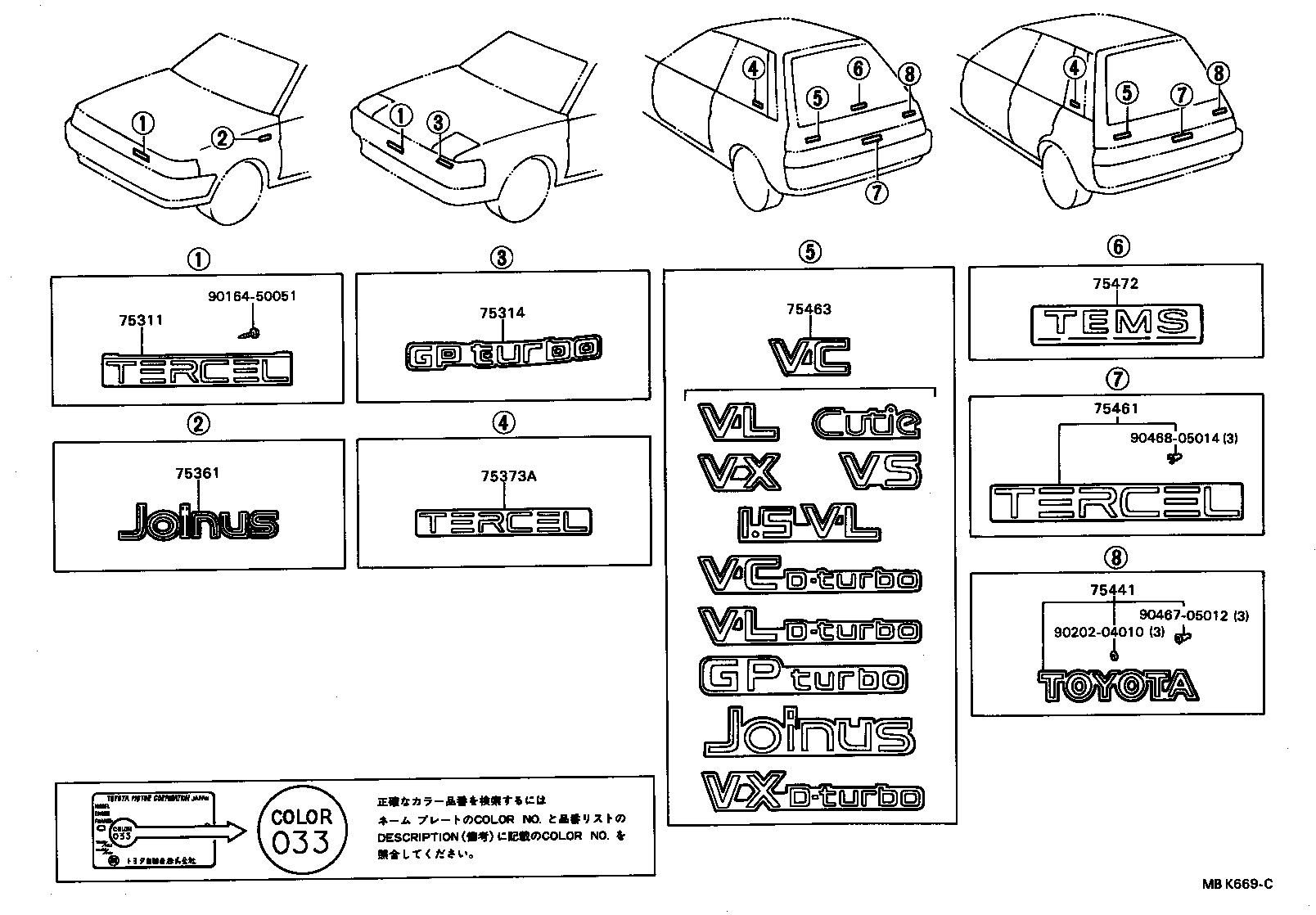

Click highlighted areas on diagram

diagram 75311 75314 75361 75373A 75441 75461 75463 75472 9016450051 9020204010 9046705012 9046805014
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-16290

EL3#,NL30..CUT,VC,VL,VX

TERCEL

 1
75361 - PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)
75361-1607002

EL30..VC

JOINUS,JOINUS,RED,RED,041 ,165

 2
75361-1607003

EL30..VC

JOINUS,JOINUS,SILVER,SILVER,3E6 ,8D7

 2
75373A - PLATE, QUARTER WINDOW MARK
75373-16050

EL31..TER..CBR;EL31..TER..5F..TBO;EL30,NL30..CUT,VC,VL

TERCEL,TERCEL

 2
75441 - PLATE, REAR NAME, NO.1
75441-16230

EL3#,NL30

TOYOTA,TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75461-16040

EL3#,NL30..VC,VL

TERCEL,TERCEL

 1
75461-16041

EL3#,NL30..VC,VL

TERCEL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-16260

EL30..VC

MOA,MOA

 1
75444-16110

EL30..VC

VC,VC

 1
Common parts
90164-50051
90202-04010
90467-05012
90468-05014
