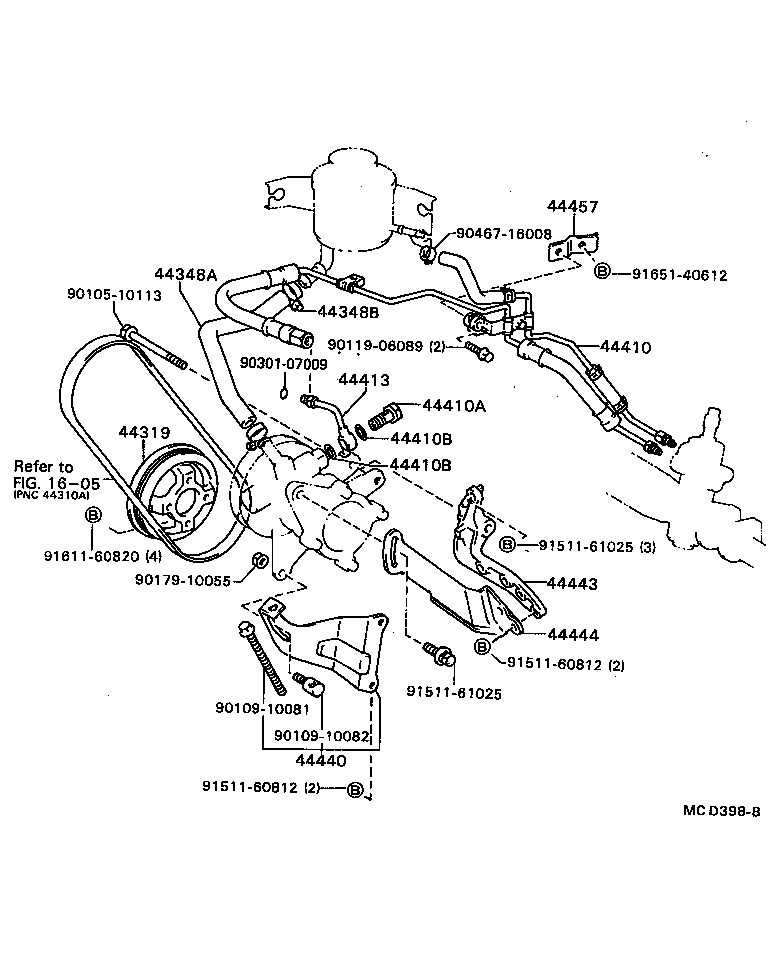

Toyota Corsa/tercel EL30 POWER STEERING TUBE

Part #	Description	Period	Qty
44319 - PULLEY, VANE PUMP DRIVE
44319-16020	EL3#	05/1986 - 05/1988	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-16010	EL3#..CBR	05/1986 - 05/1988	1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001	EL3#,NL30	05/1986 - 05/1988	2
44410 - TUBE ASSY, PRESSURE FEED
44410-16020	EL3#..CBR	05/1986 - 05/1988	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16005	EL3#	05/1986 - 07/1986	1
90401-16008	EL3#,NL30	07/1986 - 05/1988	1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242	EL3#,NL30	05/1986 - 05/1988	2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242	EL3#,NL30	05/1986 - 05/1988	2
44413 - TUBE, PRESSURE FEED, NO.1
44413-16020	EL3#..CBR	05/1986 - 05/1988	1
44440 - BRACKET ASSY, PUMP
44440-16010	EL30	05/1986 - 05/1988	1
44443 - BRACKET, PUMP
44443-16010	EL3#..CBR	05/1986 - 05/1988	1
44444 - STAY, PUMP, REAR
44444-16010	EL3#..CBR	05/1986 - 05/1988	1
44457 - BRACKET, TUBE SUPPORT, NO.1
44457-16010	EL3#	05/1986 - 05/1988	1
Common parts
90105-10113
90109-10081
90109-10082
90119-06089
90179-10055
90301-07009
90467-16008
91511-60812
91511-61025
91611-60820
91651-40612
Linked diagrams
1605

EL30-ZHHDS (1986)
