EL30-ZGKFS (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )EL3#..MTM

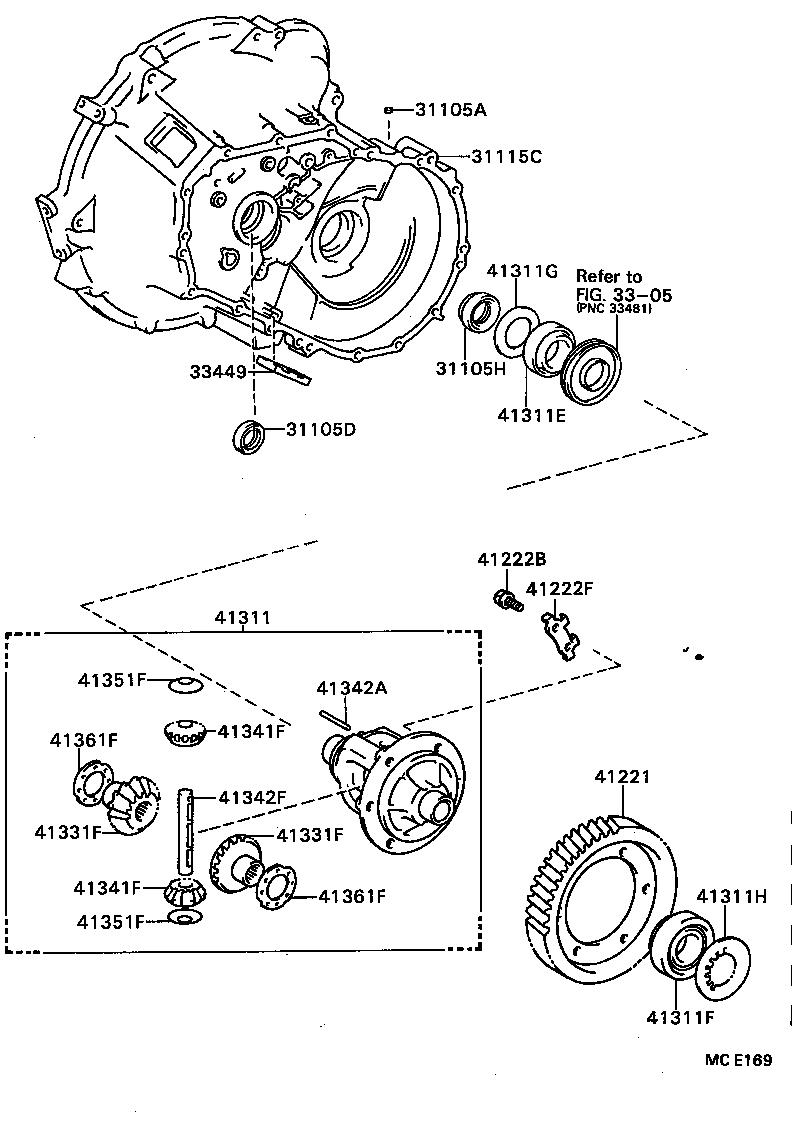

Click highlighted areas on diagram

diagram 31105A 31105D 31105H 31115C 3305 33449 41221 41222B 41222F 41311 41311E 41311F 41311G 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

EL3#,NL30..MTM

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25016

EL3#..MTM

 1
90311-25016

EL3#..MTM..(CBR,EFI)

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-34007

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
90311-34007

EL3#,NL30..MTM

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-12060

EL3#..MTM

 1
33449 - MAGNET, TRANSMISSION
33449-12020

EL3#,NL30..MTM

 1
33449-12010

EL3#,NL30..MTM

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-10201

EL3#..MTM..CBR

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12100

EL3#,NL30..MTM..(CBR,EFI,TD)

 6
41311 - CASE, FRONT DIFFERENTIAL
41301-10060

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-38004

EL3#,NL30..MTM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

EL3#,NL30..4F,4FC,5F

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90201-41045

EL3#,NL30..MTM

厚さ=2.10

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90201-41046

EL3#,NL30..MTM

厚さ=2.10,ﾏｰｸ A

 1
90201-41048

EL3#,NL30..MTM

厚さ=2.20,ﾏｰｸ C

 1
90201-41051

EL3#,NL30..MTM

厚さ=2.35,ﾏｰｸ F

 1
90201-41054

EL3#,NL30..MTM

厚さ=2.50,ﾏｰｸ J

 1
90201-41061

EL3#,NL30..MTM

厚さ=2.85,ﾏｰｸ R

 1
90201-41049

EL3#,NL30..MTM

厚さ=2.25,ﾏｰｸ D

 1
90201-41050

EL3#,NL30..MTM

厚さ=2.30,ﾏｰｸ E

 1
90201-41053

EL3#,NL30..MTM

厚さ=2.45,ﾏｰｸ H

 1
90201-41058

EL3#,NL30..MTM

厚さ=2.70,ﾏｰｸ N

 1
90201-41060

EL3#,NL30..MTM

厚さ=2.80,ﾏｰｸ Q

 1
90201-41059

EL3#,NL30..MTM

厚さ=2.75,ﾏｰｸ P

 1
90201-41062

EL3#,NL30..MTM

厚さ=2.90,ﾏｰｸ S

 1
90201-41056

EL3#,NL30..MTM

厚さ=2.60,ﾏｰｸ L

 1
90201-41047

EL3#,NL30..MTM

厚さ=2.15,ﾏｰｸ B

 1
90201-41052

EL3#,NL30..MTM

厚さ=2.40,ﾏｰｸ G

 1
90201-41057

EL3#,NL30..MTM

厚さ=2.65,ﾏｰｸ M

 1
90201-41063

EL3#,NL30..MTM

厚さ=2.95,ﾏｰｸ T

 1
90201-41064

EL3#,NL30..MTM

厚さ=3.00,ﾏｰｸ U

 1
90201-41055

EL3#,NL30..MTM

厚さ=2.55,ﾏｰｸ K

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-10042

EL3#,NL30..MTM..(CBR,EFI,TD)

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-10042

EL3#,NL30..MTM..(CBR,EFI,TD)

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-10030

EL3#,NL30..MTM..(CBR,EFI,TD)

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-10030

EL3#,NL30..MTM..(CBR,EFI,TD)

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-04053

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-10040

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-10030

EL3#,NL30..MTM..(CBR,EFI,TD)

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-10030

EL3#,NL30..MTM..(CBR,EFI,TD)

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-10080

EL3#,NL30..MTM..(CBR,EFI,TD)

厚さ=1.55

 2
41361-10090

EL3#,NL30..MTM..(CBR,EFI,TD)

厚さ=1.60

 2
41361-10070

EL3#,NL30..MTM..(CBR,EFI,TD)

厚さ=1.50

 2
41361-10110

EL3#,NL30..MTM..(CBR,EFI,TD)

厚さ=1.70

 2
41361-10100

EL3#,NL30..MTM..(CBR,EFI,TD)

厚さ=1.65

 2
41361-10120

EL3#,NL30..MTM..(CBR,EFI,TD)

厚さ=1.75

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-10080

EL3#,NL30..MTM..(CBR,EFI,TD)

厚さ=1.55

 2
41361-10090

EL3#,NL30..MTM..(CBR,EFI,TD)

厚さ=1.60

 2
41361-10070

EL3#,NL30..MTM..(CBR,EFI,TD)

厚さ=1.50

 2
41361-10110

EL3#,NL30..MTM..(CBR,EFI,TD)

厚さ=1.70

 2
41361-10100

EL3#,NL30..MTM..(CBR,EFI,TD)

厚さ=1.65

 2
41361-10120

EL3#,NL30..MTM..(CBR,EFI,TD)

厚さ=1.75

 2
Linked diagrams
3305
