EL30-ZGKFS (1986)
Toyota Corsa/Tercel
Production
May 1986
-
May 1988
Engine
2E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8605- )

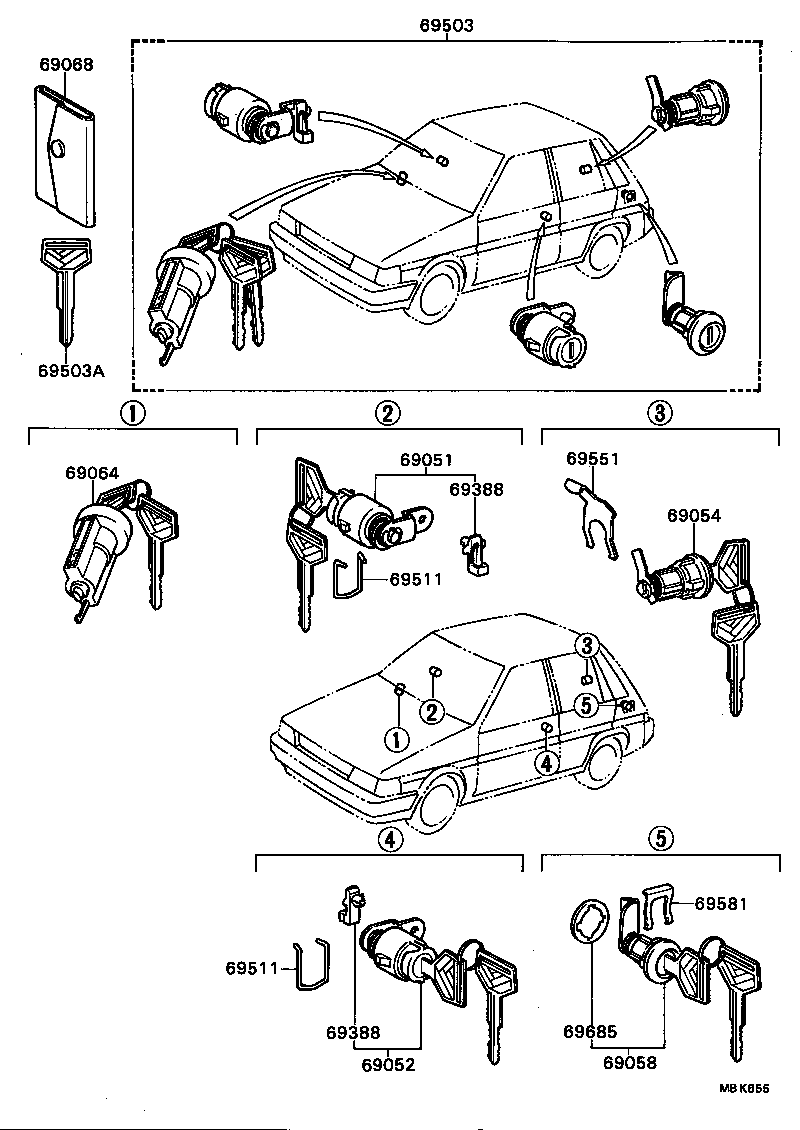

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-16070 |
EL3#,NL30 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-16070 |
EL3#,NL30 |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-16190 |
EL3#,NL30 |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-12100 |
EL3#,NL30..CUT,GX,SOP,TX,VC,VL |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-16080 |
EL3#,NL30 |
1 | ||
| 69068 - COVER SUB-ASSY, KEY | ||||
| 69555-17010 |
EL3#,NL30 |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-20090 |
EL3#,NL30 LH |
1 | ||
| 69759-20080 |
EL3#,NL30 RH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-20090 |
EL3#,NL30 LH |
1 | ||
| 69759-20080 |
EL3#,NL30 RH |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-16250 |
EL3#,NL30 W/BACK DOOR OPENER |
1 | ||
| 69005-16260 |
EL3#,NL30..CUT,GX,SOP,TX,VC,VL |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00085 |
EL3#,NL30 ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00106 |
EL3#,NL30 ﾏｽﾀｰｷｰ,*68付き,W/PROTECTOR |
1 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-16010 |
EL3#,NL30 |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-16010 |
EL3#,NL30 |
2 | ||
| 69551 - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69561-16040 |
EL3#,NL30 |
1 | ||
| 69581 - RETAINER, FUEL FILLER LID CYLINDER | ||||
| 69511-32010 |
EL3#,NL30..CUT,GX,SOP,TX,VC,VL |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
EL30..3DS |
1 | ||
| 69513-12020 |
EL3#,NL30..CUT,GX,SOP,TX,VC,VL |
1 | ||
