EL30-ZGHNS (1986)
Toyota Corsa/Tercel

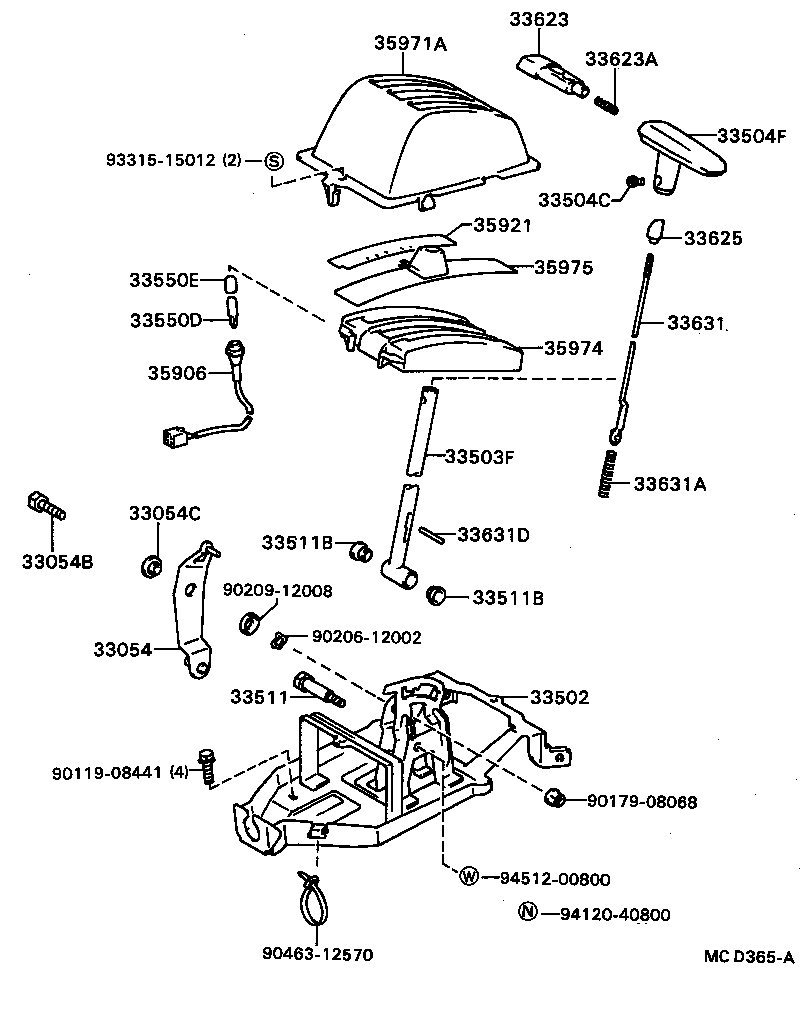

ILLUST NO. 1 OF 2(8605- )3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-16020 |
EL3#,NL30..ATM |
1 | ||
| 33054B - BOLT(FOR SHIFT LEVER NO.2) | ||||
| 90119-08606 |
EL3#,NL30..ATM |
1 | ||
| 33054C - BUSH(FOR SHIFT LEVER NO.2) | ||||
| 90386-12029 |
EL3#,NL30..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-16130 |
EL3#,NL30..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-16200 |
EL3#..3FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
EL3#,NL30..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1211011 |
EL3#..3FC BLACK,NEW BLACK,TRIM2# |
1 | ||
| 33542-1211015 |
EL3#..3FC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 33542-1211024 |
EL3#..3FC BLUE,BLUE,TRIM8# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
EL3#,NL30..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11010 |
EL3#,NL30..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11010 |
EL3#,NL30..ATM |
2 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11030 |
EL3#,NL30..ATM 14V 1.12W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04023 |
EL3#,NL30..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1604005 |
EL3#..3FC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 33623-1604004 |
EL3#..3FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-1604001 |
EL3#..3FC BLACK,NEW BLACK,TRIM2# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
EL3#,NL30..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
EL3#..3FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16040 |
EL3#..3FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
EL3#..3FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
EL3#,NL30..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-16040 |
EL3#,NL30..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-16100 |
EL3#,NL30..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-1605001 |
EL3#,NL30..ATM BLACK,NEW BLACK,TRIM2# |
1 | ||
| 35971-1605004 |
EL3#,NL30..ATM BLUE,BLUE,TRIM8# |
1 | ||
| 35971-1605005 |
EL3#,NL30..ATM..(CUT,EX,GX,SOP,TX,VC,VL,VX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-1605001 |
EL3#,NL30..ATM BLACK,NEW BLACK,TRIM2# |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-16050 |
EL3#..3FC |
1 | ||
| Common parts | ||||
| 90119-08441 | ||||
| 90179-08068 | ||||
| 90206-12002 | ||||
| 90209-12008 | ||||
| 90463-12570 | ||||
| 93315-15012 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||

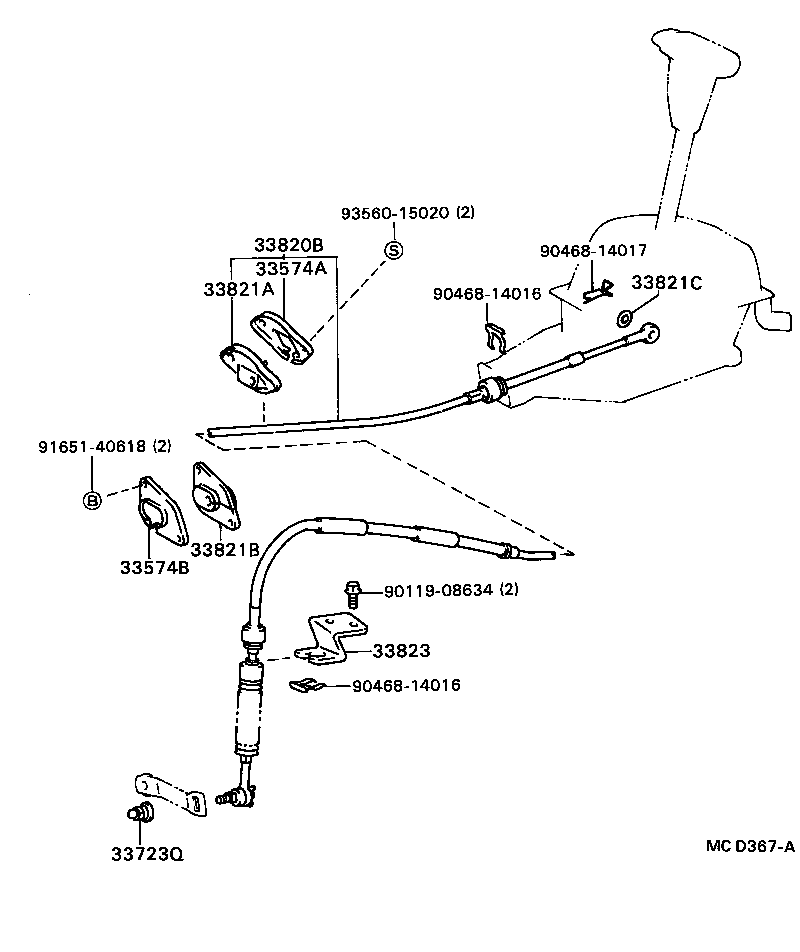

ILLUST NO. 2 OF 2(8605- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EL3#,NL30 |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-10030 |
EL3#,NL30 |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08070 |
EL3#,NL30..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-16050 |
EL3#..3FC |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01281 |
EL3#,NL30..ATM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01288 |
EL3#,NL30..ATM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EL3#,NL30 SHIFT LEVER SIDE |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-10010 |
EL3#..3FC |
1 | ||
| Common parts | ||||
| 90119-08634 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91651-40618 | ||||
| 93560-15020 | ||||
