Toyota Corsa/tercel EL30 WINDSHIELD WASHER

EL30-ZGHNS (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990

Engine 2E

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8805- )

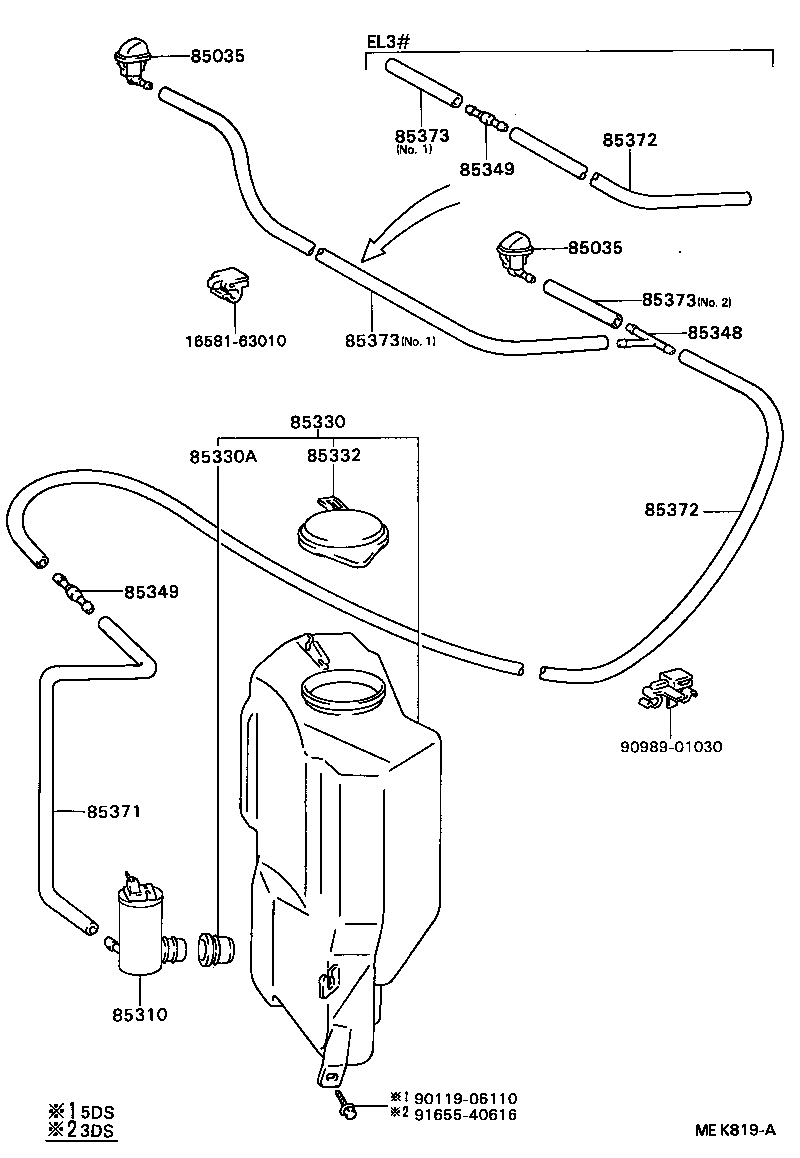

Click highlighted areas on diagram

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85035-16070	EL3#,NL30	05/1988 - 09/1990	2
85035 - NOZZLE SUB-ASSY, WASHER
85035-16070	EL3#,NL30	05/1988 - 09/1990	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080	EL3#,NL30	05/1988 - 09/1990	1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-16240	EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX	05/1988 - 06/1989	1
85331-16240	EL31;EL30,NL30..3DS;EL30,NL30..5DS..(CUT,EX,GX,SOP,VL,VX)	06/1989 - 09/1990	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	EL3#,NL30	05/1988 - 09/1990	1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12320	EL3#,NL30	05/1988 - 09/1990	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250	EL3#,NL30	05/1988 - 09/1990	1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122	EL3#	05/1988 - 09/1990	2
85349-89122	EL3#;NL30..TX,VC W/RR WIPER	05/1988 - 09/1990	1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122	EL3#	05/1988 - 09/1990	2
85349-89122	EL3#;NL30..TX,VC W/RR WIPER	05/1988 - 09/1990	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080	EL3#,NL30 L=1450	05/1988 - 10/1988	1
90446-06013	EL3# 長さ=450	05/1988 - 09/1990	1
85343-16140	EL3#,NL30 長さ=510	10/1988 - 09/1990	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080	EL3#,NL30 L=1450	05/1988 - 10/1988	1
90446-06013	EL3# 長さ=450	05/1988 - 09/1990	1
85343-16140	EL3#,NL30 長さ=510	10/1988 - 09/1990	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	EL3# *H,L=60,NO.1 & NO.2	05/1988 - 09/1990	2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	EL3# *H,L=60,NO.1 & NO.2	05/1988 - 09/1990	2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	EL3# *H,L=60,NO.1 & NO.2	05/1988 - 09/1990	2
Common parts
16581-63010
90119-06110
90989-01030
91655-40616

(8805- )

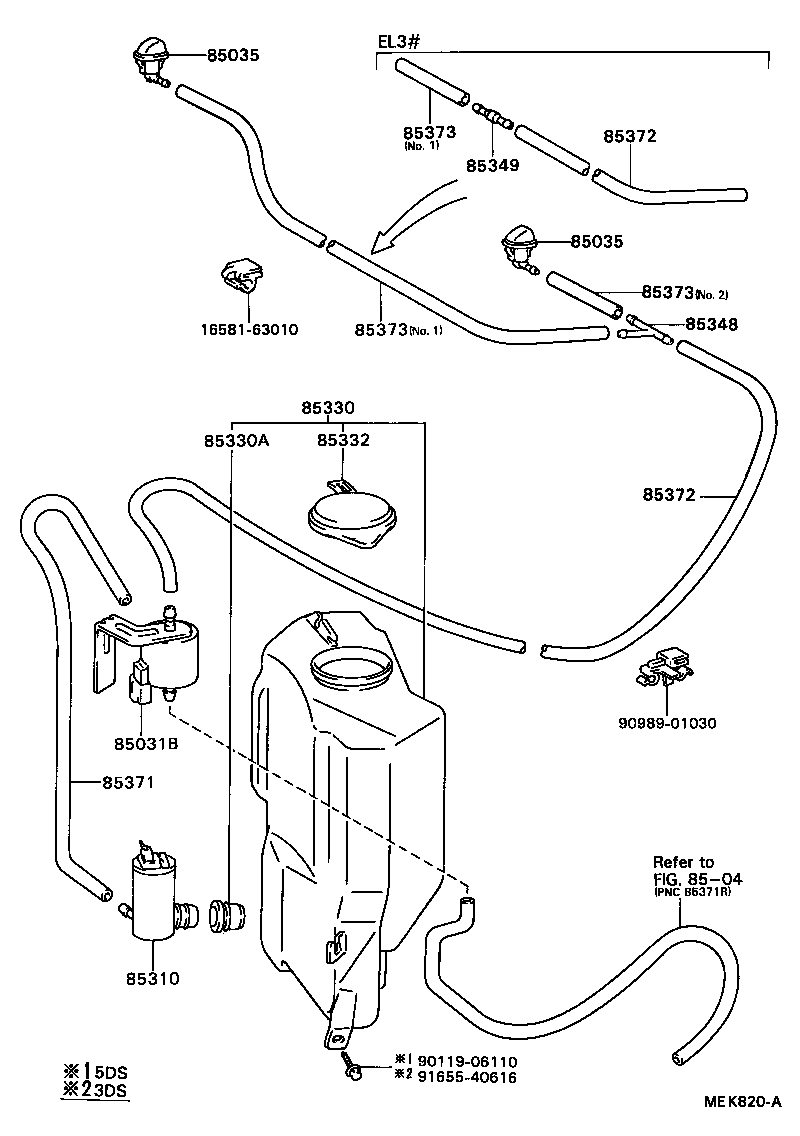

Click highlighted areas on diagram

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

Part #	Description	Period	Qty
85031B - VALVE SUB-ASSY, WASHER
85031-16010	EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX	05/1988 - 01/1990	1
85031-16011	EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX	01/1990 - 09/1990	1
85035 - NOZZLE SUB-ASSY, WASHER
85035-16070	EL3#,NL30	05/1988 - 09/1990	2
85035 - NOZZLE SUB-ASSY, WASHER
85035-16070	EL3#,NL30	05/1988 - 09/1990	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080	EL3#,NL30	05/1988 - 09/1990	1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-16240	EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX	05/1988 - 06/1989	1
85331-16240	EL31;EL30,NL30..3DS;EL30,NL30..5DS..(CUT,EX,GX,SOP,VL,VX)	06/1989 - 09/1990	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	EL3#,NL30	05/1988 - 09/1990	1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12320	EL3#,NL30	05/1988 - 09/1990	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250	EL3#,NL30	05/1988 - 09/1990	1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122	EL3#	05/1988 - 09/1990	2
85349-89122	EL3#;NL30..TX,VC W/RR WIPER	05/1988 - 09/1990	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080	EL3#,NL30 L=1450	05/1988 - 10/1988	1
90446-06013	EL3# 長さ=450	05/1988 - 09/1990	1
85343-16140	EL3#,NL30 長さ=510	10/1988 - 09/1990	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080	EL3#,NL30 L=1450	05/1988 - 10/1988	1
90446-06013	EL3# 長さ=450	05/1988 - 09/1990	1
85343-16140	EL3#,NL30 長さ=510	10/1988 - 09/1990	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	EL3# *H,L=60,NO.1 & NO.2	05/1988 - 09/1990	2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	EL3# *H,L=60,NO.1 & NO.2	05/1988 - 09/1990	2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	EL3# *H,L=60,NO.1 & NO.2	05/1988 - 09/1990	2
Common parts
16581-63010
90119-06110
90989-01030
91655-40616
