EL30-ZGHFS (1986)
Toyota Corsa/Tercel
Production
May 1986
-
May 1988
Engine
2E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8605- )

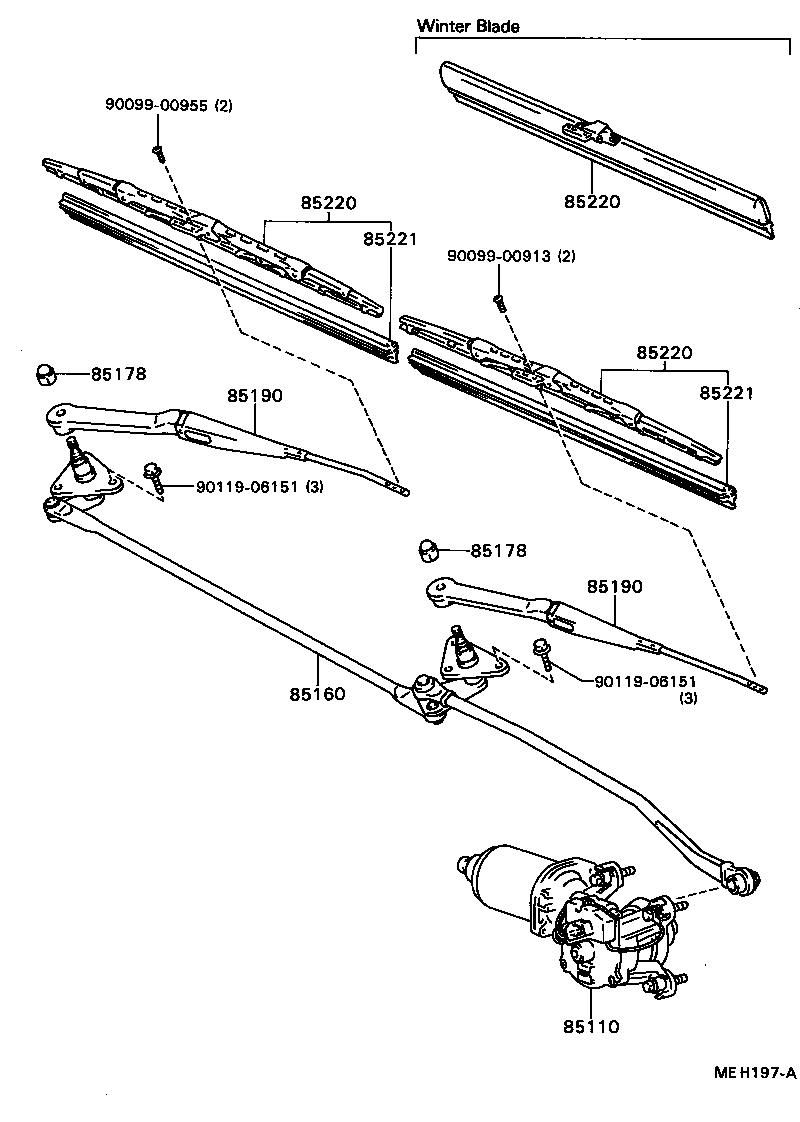

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-16310 |
EL3#,NL30..CBR,TD COLD SPEC |
1 | ||
| 85110-16230 |
EL3#,NL30..CBR,TD |
1 | ||
| 85110-16231 |
EL3#,NL30..CBR,TD |
1 | ||
| 85110-16311 |
EL3#,NL30..CBR,TD COLD SPEC |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-16210 |
EL3#,NL30 COLD SPEC |
1 | ||
| 85160-16180 |
EL3#,NL30 |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08033 |
EL3#,NL30 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08033 |
EL3#,NL30 |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-16160 |
EL3#,NL30 RH |
1 | ||
| 85210-16030 |
EL3#,NL30 LH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-16160 |
EL3#,NL30 RH |
1 | ||
| 85210-16030 |
EL3#,NL30 LH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16580 |
EL3#,NL30 LH,WINTER BLADE |
1 | ||
| 85220-32310 |
EL3#,NL30 RH |
1 | ||
| 85220-32560 |
EL3#,NL30 RH,WINTER BLADE |
1 | ||
| 85220-16320 |
EL3#,NL30 LH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16580 |
EL3#,NL30 LH,WINTER BLADE |
1 | ||
| 85220-32310 |
EL3#,NL30 RH |
1 | ||
| 85220-32560 |
EL3#,NL30 RH,WINTER BLADE |
1 | ||
| 85220-16320 |
EL3#,NL30 LH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16580 |
EL3#,NL30 LH,WINTER BLADE |
1 | ||
| 85220-32310 |
EL3#,NL30 RH |
1 | ||
| 85220-32560 |
EL3#,NL30 RH,WINTER BLADE |
1 | ||
| 85220-16320 |
EL3#,NL30 LH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-30120 |
EL3#,NL30 LH |
1 | ||
| 85221-30110 |
EL3#,NL30 RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-30120 |
EL3#,NL30 LH |
1 | ||
| 85221-30110 |
EL3#,NL30 RH |
1 | ||
| Common parts | ||||
| 90099-00913 | ||||
| 90099-00955 | ||||
| 90119-06151 | ||||
