EL30-ZGHFS (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

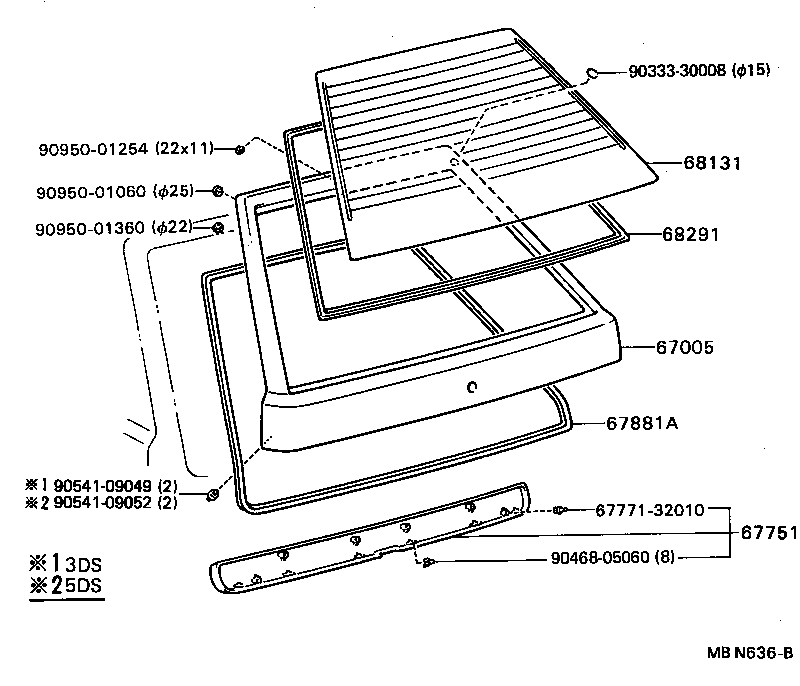

Click highlighted areas on diagram

diagram 67005 67751 6777132010 67881A 68131 68291 9033330008 9046805060 9054109049 9054109052 9095001060 9095001254 9095001360
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-16260

EL3#,NL30..3DS..(CUT,EX,GX,SOP,SXI,UX,VL,VSI,VU,VX)

 1
67751 - BOARD, BACK DOOR TRIM
67751-1605004

EL3#,NL30..3DS

BLUE,TRIM8#

 1
67751-1605001

EL3#,NL30..3DS

BLACK,TRIM2#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-16060

EL3#,NL30..3DS

 1
68131 - GLASS, BACK DOOR
68131-16260

EL3#,NL30..3DS..(CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX)

*EHTT,厚さ=3.5

 1
68131-16310

EL30..3DS..(CUT,SOP)

*TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,SOPHIA SPECIAL,CUTIE EXTRA

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-16030

EL3#,NL30..3DS

 1
68291-16031

EL3#,NL30..3DS

 1
Common parts
67771-32010
90333-30008
90468-05060
90541-09049
90541-09052
90950-01060
90950-01254
90950-01360
