EL30-ZGHFS (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

Click highlighted areas on diagram

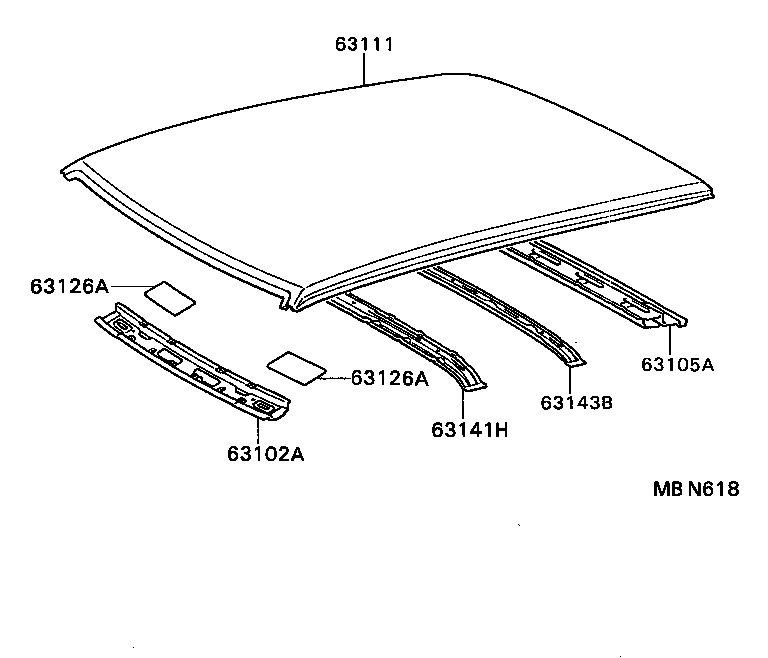

diagram 63102A 63105A 63111 63126A 63126A 63141H 63143B
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-16020

EL3#,NL30

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-16060

EL3#,NL30..3DS

 1
63111 - PANEL, ROOF
63111-16130

EL3#,NL30..3DS

 1
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-16010

EL3#,NL30

 2
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-16010

EL3#,NL30

 2
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-16040

EL3#,NL30..3DS

 1

(8805- )

Click highlighted areas on diagram

ﾑｰﾝ ﾙｰﾌ

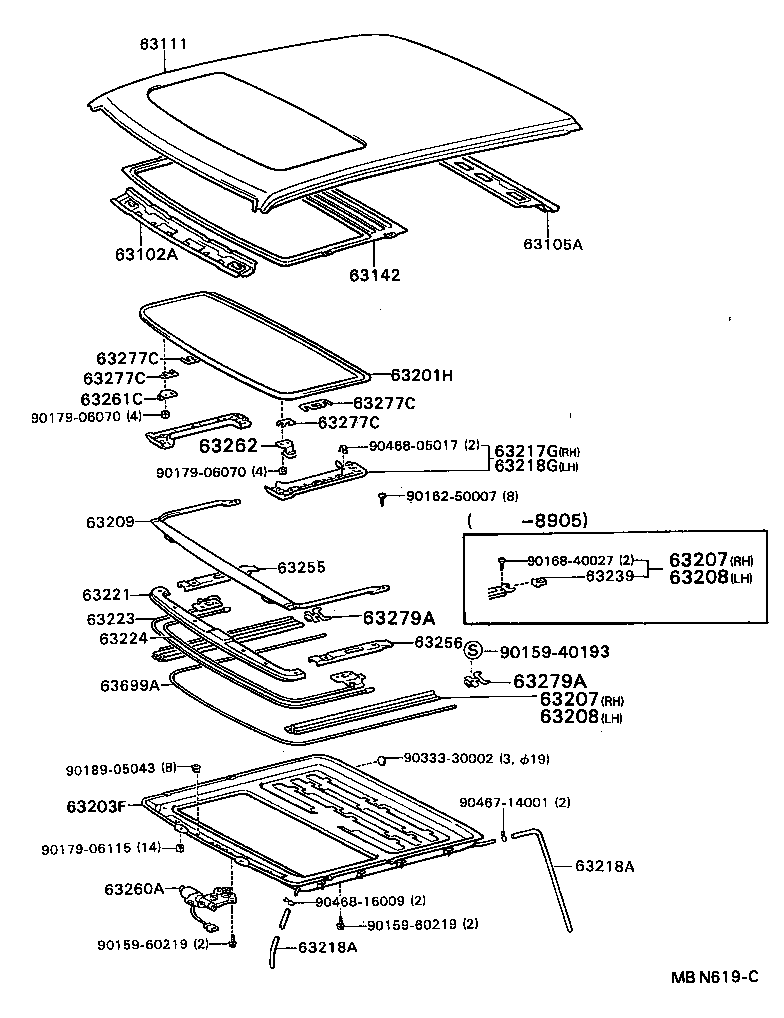

diagram 63102A 63105A 63111 63142 63201H 63203F 63207 63207 63208 63208 63209 63217G 63218A 63218A 63218G 63221 63223 63224 63239 63255 63256 63260A 63261C 63262 63277C 63277C 63277C 63277C 63279A 63279A 63699A 9015940193 9015960219 9015960219 9016250007 9016840027 9017906070 9017906070 9017906115 9018905043 9033330002 9046714001 9046805017 9046816009
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-16020

EL3#,NL30

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-16060

EL3#,NL30..3DS

 1
63111 - PANEL, ROOF
63111-16130

EL3#,NL30..3DS

 1
Common parts
90159-40193
90159-60219
90162-50007
90168-40027
90179-06070
90179-06115
90189-05043
90333-30002
90467-14001
90468-05017
90468-16009

ILLUST NO. 1 OF 2(8805- )

Click highlighted areas on diagram

ｷﾔﾝﾊﾞｽ ﾄﾂﾌﾟ

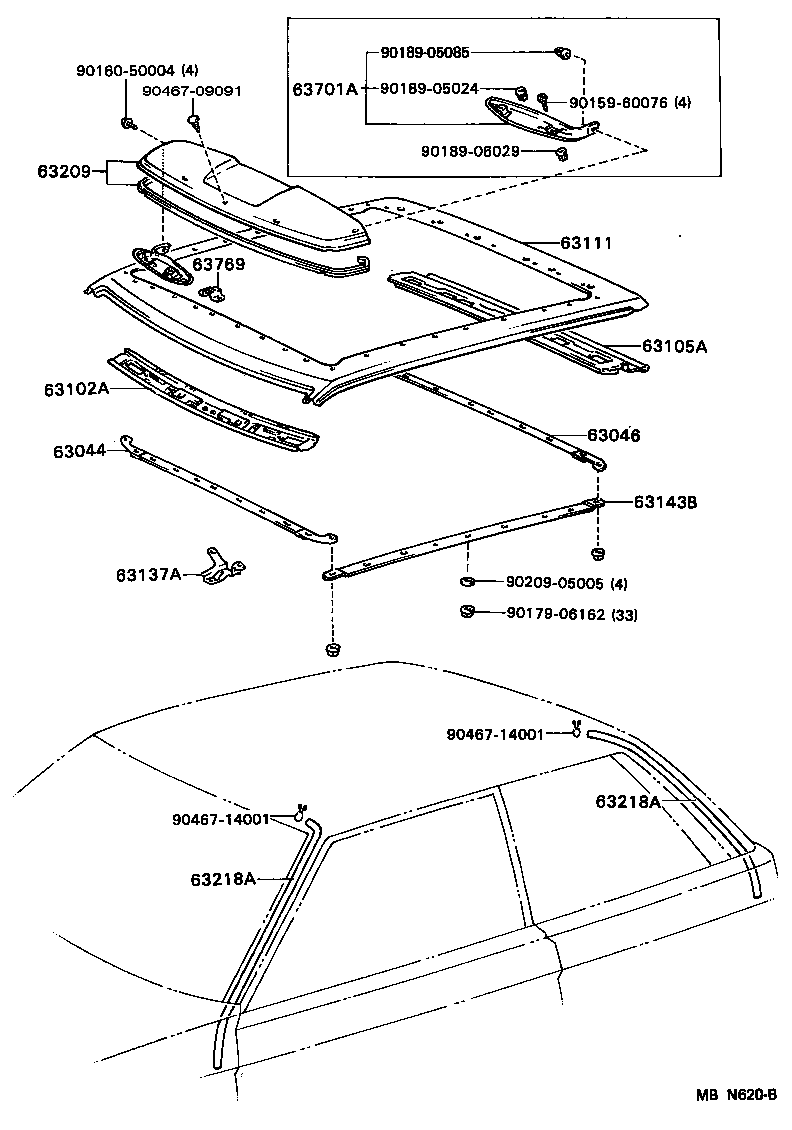

diagram 63044 63046 63102A 63105A 63111 63137A 63143B 63209 63218A 63218A 63701A 63769 9015960076 9016050004 9017906162 9018905024 9018905085 9018906029 9020905005 9046709091 9046714001 9046714001
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-16020

EL3#,NL30

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-16060

EL3#,NL30..3DS

 1
63111 - PANEL, ROOF
63111-16130

EL3#,NL30..3DS

 1
Common parts
90159-60076
90160-50004
90179-06162
90189-05024
90189-05085
90189-06029
90209-05005
90467-09091
90467-14001

ILLUST NO. 2 OF 2(8805- )

Click highlighted areas on diagram

ｷﾔﾝﾊﾞｽ ﾄﾂﾌﾟ

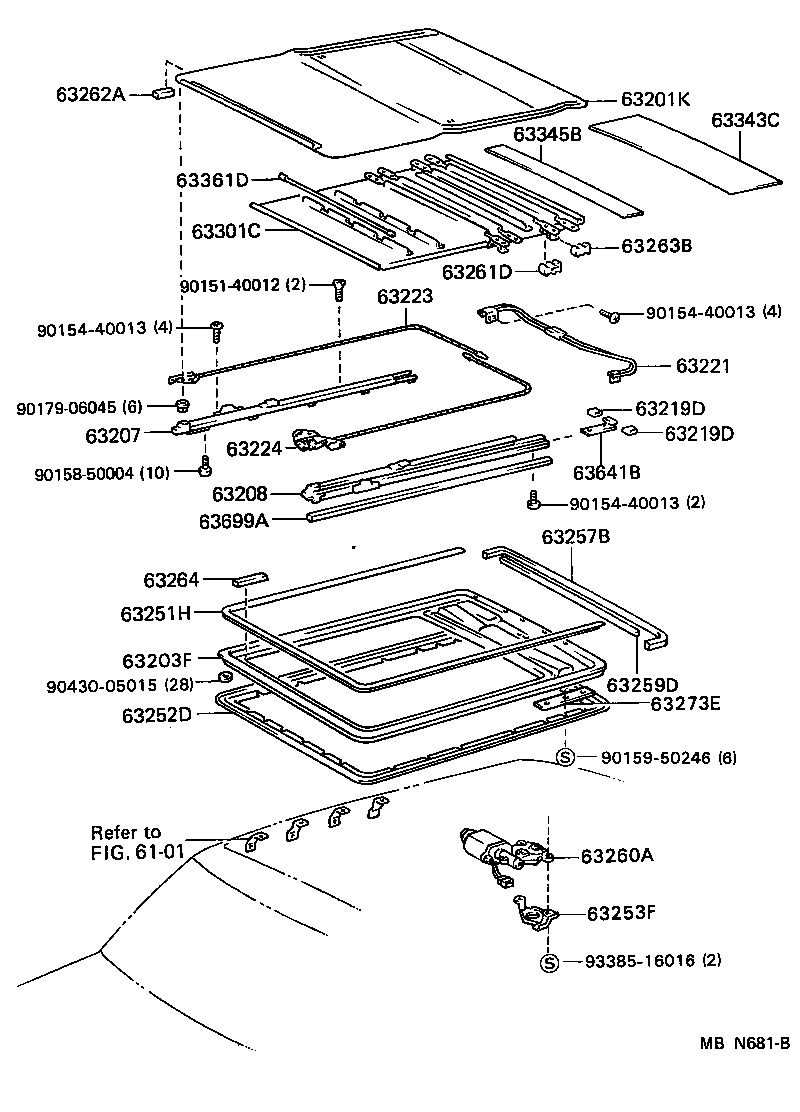

diagram 6101 63201K 63203F 63207 63208 63219D 63219D 63221 63223 63224 63251H 63252D 63253F 63257B 63259D 63260A 63261D 63262A 63263B 63264 63273E 63301C 63343C 63345B 63361D 63641B 63699A 9015140012 9015440013 9015440013 9015440013 9015850004 9015950246 9017906045 9043005015 9338516016
Part # Description Qty Price
Common parts
90151-40012
90154-40013
90158-50004
90159-50246
90179-06045
90430-05015
93385-16016
Linked diagrams
6101
