EL30-ZGHFS (1988)
Toyota Corsa/Tercel
Production
May 1988
-
Sep 1990
Engine
2E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )2E,3E#

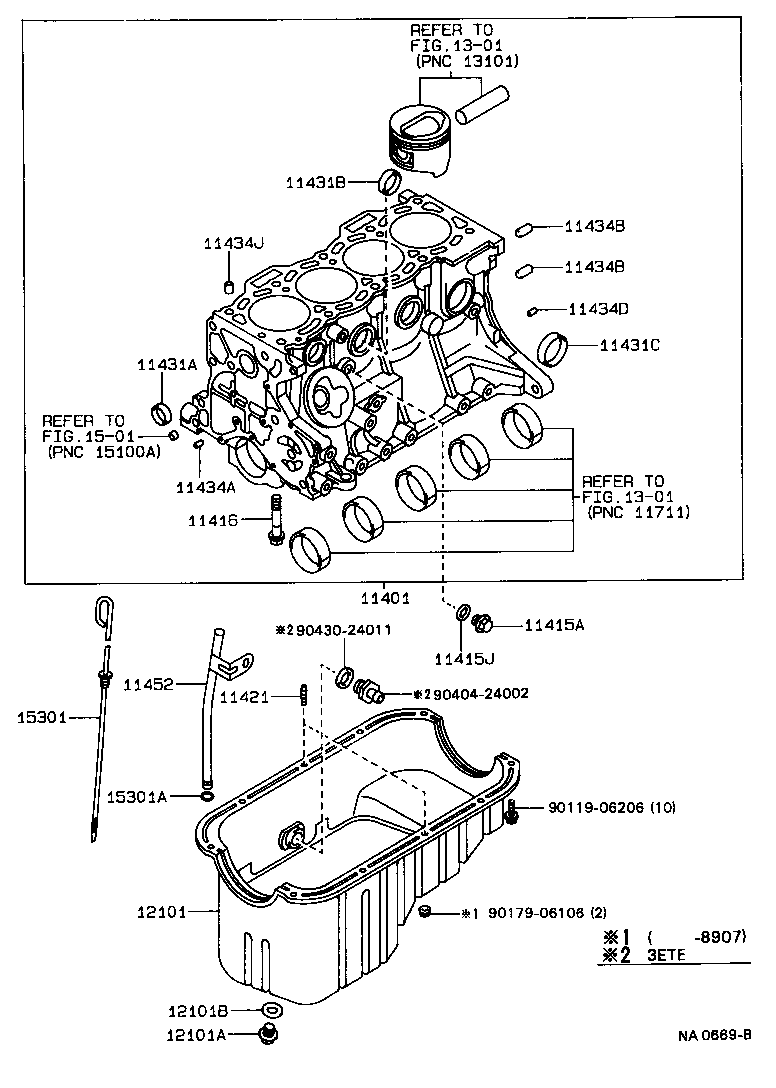

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19299 |
2E..EL30 |
1 | ||
| 11401-19298 |
2E..EL30 |
1 | ||
| 11401-19535 |
2E..EL30 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90341-12012 |
2E,3E,3EE..EL3# |
1 | ||
| 11415J - GASKET(FOR DRAIN COCK) | ||||
| 90430-13002 |
2E,3E,3EE..EL3# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02019 |
2E..EL30 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06014 |
2E,3E#..EL3# |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2E,3E#..EL3# |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43000 |
2E,3E#..EL3# |
6 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2E,3E#..EL3# |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-06068 |
2E,3E,3EE..EL3# 長さ=11,外径=6 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10017 |
2E,3E#..EL3# 長さ=20,外径=10 |
1 | ||
| 90253-15003 |
2E,3E#..EL3# 長さ=17,外径=15 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10017 |
2E,3E#..EL3# 長さ=20,外径=10 |
1 | ||
| 90253-15003 |
2E,3E#..EL3# 長さ=17,外径=15 |
1 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
2E,3E,3EE..EL3# 長さ=11,外径=6 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-12001 |
2E,3E#..EL3# |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-11050 |
2E..EL30 |
1 | ||
| 11452-10010 |
2E,3E#..EL3# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-10010 |
2E..EL30 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
2E,3E#..EL3# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12019 |
2E,3E#..EL3# |
1 | ||
| 90430-12027 |
2E,3E#..EL3# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-11030 |
2E..EL30 |
1 | ||
| 15301-10021 |
2E..EL30 |
1 | ||
| 15301-10022 |
2E..EL30 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96711-19010 |
2E,3E#..EL3# |
1 | ||
| Common parts | ||||
| 90119-06206 | ||||
| 90179-06106 | ||||
| 90404-24002 | ||||
| 90430-24011 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||
