EL30-ZGHDS (1988)
Toyota Corsa/Tercel
(8805- )3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55545A - COVER, FUSE BOX OPENING | ||||
| 55545-1610001 |
EL3#,NL30 BLACK,TRIM2# |
1 | ||
| 55545-1610004 |
EL3#,NL30 BLUE,TRIM8# |
1 | ||
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62111-1607004 |
EL3#,NL30 BLUE,TRIM8# |
1 | ||
| 62111-1607001 |
EL3#,NL30 BLACK,TRIM2# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-1605001 |
EL3#,NL30 BLACK,TRIM2# |
1 | ||
| 62112-1605004 |
EL3#,NL30 BLUE,TRIM8# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-0501524 |
EL3#,NL30 BLUE,TRIM8# |
1 | ||
| 90467-0501501 |
EL3#,NL30 BLACK,TRIM2#,8# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-0803111 |
EL3#,NL30 BLACK,TRIM2# |
1 | ||
| 90467-0803124 |
EL3#,NL30 BLUE,TRIM8# |
1 | ||
| 90467-0803101 |
EL3#,NL30 BLACK,TRIM2#,8# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-1603001 |
EL3#,NL30..3DS BLACK,TRIM2# |
1 | ||
| 62211-1603004 |
EL3#,NL30..3DS BLUE,TRIM8# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-1603001 |
EL3#,NL30..3DS BLACK,TRIM2# |
1 | ||
| 62212-1603004 |
EL3#,NL30..3DS BLUE,TRIM8# |
1 | ||
| 62212-1603006 |
EL30..3DS..(TX,VC) BROWN,TRIM8# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-1606004 |
EL3#,NL30..3DS BLUE,TRIM8# |
1 | ||
| 62313-1606001 |
EL3#,NL30..3DS BLACK,TRIM2# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-1606001 |
EL3#,NL30..3DS BLACK,TRIM2# |
1 | ||
| 62313-1606004 |
EL3#,NL30..3DS BLUE,TRIM8# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-1606001 |
EL3#,NL30..3DS BLACK,TRIM2# |
1 | ||
| 62411-1606004 |
EL3#,NL30..3DS BLUE,TRIM8# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-1606001 |
EL3#,NL30..3DS BLACK,TRIM2# |
1 | ||
| 62412-1606004 |
EL3#,NL30..3DS BLUE,TRIM8# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-1614001 |
EL3#,NL30..3DS BLACK,TRIM2# |
1 | ||
| 62471-1614004 |
EL3#,NL30..3DS BLUE,TRIM8# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-1614004 |
EL3#,NL30..3DS BLUE,TRIM8# |
1 | ||
| 62472-1614001 |
EL3#,NL30..3DS BLACK,TRIM2# |
1 | ||
| 62485A - RETAINER, ROOF SIDE INNER GARNISH | ||||
| 62485-16010 |
EL3#,NL30..3DS |
2 | ||
| 62485A - RETAINER, ROOF SIDE INNER GARNISH | ||||
| 62485-16010 |
EL3#,NL30..3DS |
2 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1642004 |
EL3#,NL30..3DS..(GX,TX,UX,VC,VL,VU) BLUE,TRIM8# |
1 | ||
| 62510-1642001 |
EL3#,NL30..3DS..(GX,TX,UX,VC,VL,VU) BLACK,TRIM2# |
1 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-32010 |
EL3#,NL30..3DS |
12 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-32010 |
EL3#,NL30..3DS |
12 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1639004 |
EL3#,NL30..3DS..(GX,TX,UX,VC,VL,VU) BLUE,TRIM8# |
1 | ||
| 62520-1639001 |
EL3#,NL30..3DS..(GX,TX,UX,VC,VL,VU) BLACK,TRIM2# |
1 | ||
| 62517B - BASE, QUARTER TRIM, FRONT RH | ||||
| 62517-1602004 |
EL3#,NL30..3DS BLUE,TRIM8# |
1 | ||
| 62517-1602001 |
EL3#,NL30..3DS BLACK,TRIM2# |
1 | ||
| 62518B - BASE, QUARTER TRIM, FRONT LH | ||||
| 62518-1602004 |
EL3#,NL30..3DS BLUE,TRIM8# |
1 | ||
| 62518-1602001 |
EL3#,NL30..3DS BLACK,TRIM2# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-1605004 |
EL3#,NL30..3DS BLUE,TRIM8# |
1 | ||
| 67913-1605001 |
EL3#,NL30..3DS BLACK,TRIM2# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67913-1605004 |
EL3#,NL30..3DS BLUE,TRIM8# |
1 | ||
| 67913-1605001 |
EL3#,NL30..3DS BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 67771-14040 | ||||
| 90159-50103 | ||||
| 90189-05018 | ||||
| 90467-05016 | ||||
| 90468-04119 | ||||
| 90468-05060 | ||||
| 90468-25003 | ||||
| 93540-14512 | ||||
| 93560-14010 | ||||
| 93560-14012 | ||||
| 93560-54012 | ||||

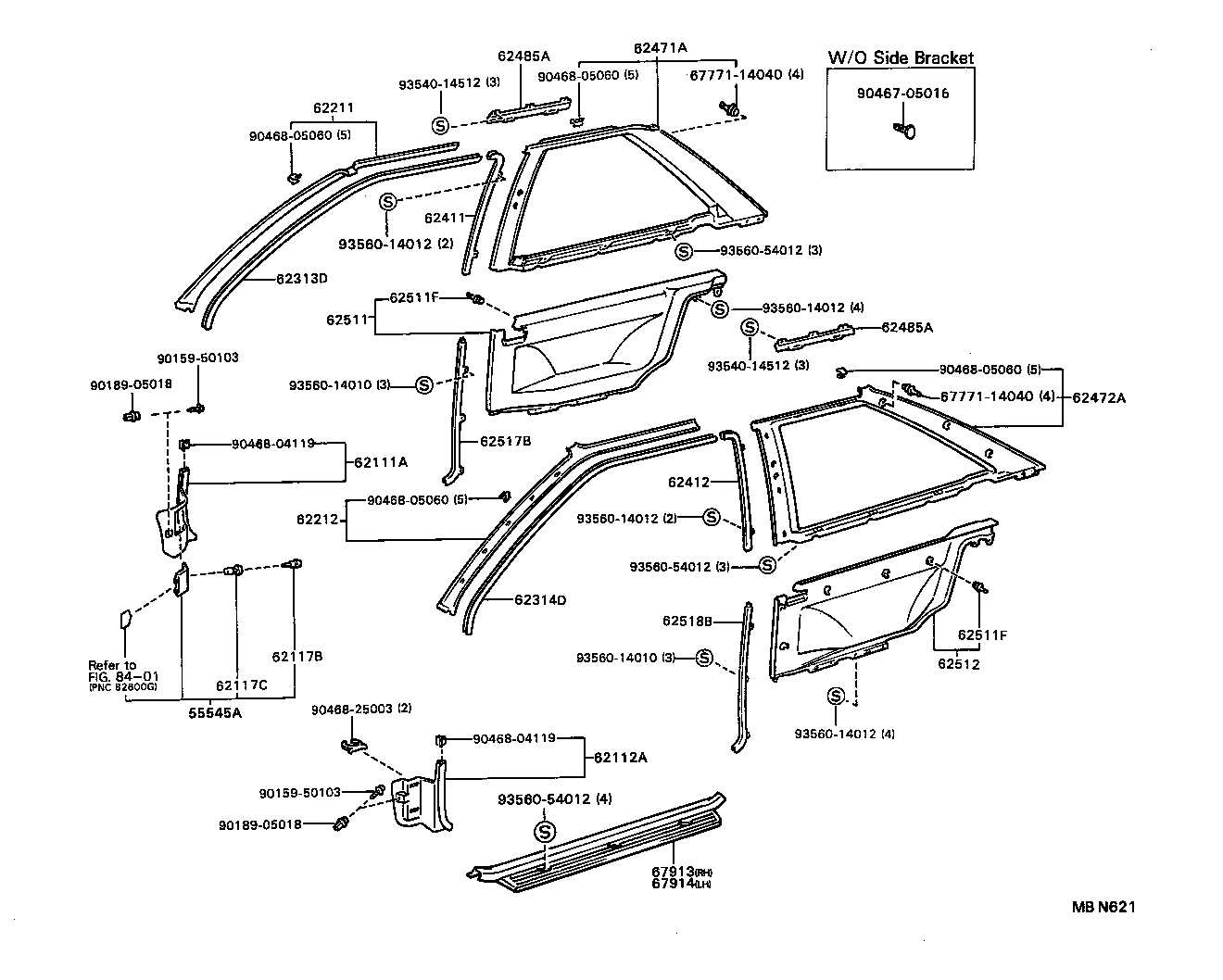

| Linked diagrams | ||||
| 8401 | ||||
