EL30-ZGHDS (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8805-8903)EFI ; (8805- )CBR,TD

Click highlighted areas on diagram

diagram 04443 44606E 44610 44610 44621V 44629 44635B 44642 44785 44785 8401 9017908038 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-16180

EL3#..CBR

 1
04443-16170

EL3#..CBR

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

EL3#,NL30..CBR,TD

 1
44606-12520

EL3#,NL30..CBR,EFI,TD

 1
44610 - BOOSTER ASSY, BRAKE
44610-16190

EL3#..CBR

 1
44610-16200

EL3#..CBR,EFI

 1
44610-16190

EL3#..CBR,EFI

 1
44610-16200

EL3#..CBR

 1
44610 - BOOSTER ASSY, BRAKE
44610-16190

EL3#..CBR

 1
44610-16200

EL3#..CBR,EFI

 1
44610-16190

EL3#..CBR,EFI

 1
44610-16200

EL3#..CBR

 1
44621V - SEAL, BOOSTER BODY
44621-28120

EL3#,NL30..CBR,EFI,TD

 1
44621-28120

EL3#,NL30..CBR,TD

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

EL3#,NL30..CBR,EFI,TD

 1
44628-28120

EL3#,NL30..CBR,TD

 1
44635B - KEY, VALVE STOPPER
44635-16160

EL3#,NL30..CBR,TD

 1
44635-16160

EL3#,NL30..CBR,EFI,TD

 1
44642 - PISTON, BRAKE BOOSTER
44642-16180

EL3#,NL30..CBR,EFI,TD

 1
44642-16180

EL3#,NL30..CBR,TD

 1
44785 - GASKET, BRAKE BOOSTER
44785-16010

EL3#,NL30

 1
44785 - GASKET, BRAKE BOOSTER
44785-16010

EL3#,NL30

 1
Common parts
90179-08038
Linked diagrams
8401

ILLUST NO. 1 OF 2(8805-8903)EFI ; (8805- )CBR

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44683A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-16180

EL3#..CBR

 1
04443-16170

EL3#..CBR

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-10080

EL3#..CBR

 1
44605-10080

EL3#..CBR,EFI

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

EL3#..CBR

 1
44608-32020

EL3#..CBR,EFI

 1
44610 - BOOSTER ASSY, BRAKE
44610-16190

EL3#..CBR

 1
44610-16200

EL3#..CBR,EFI

 1
44610-16190

EL3#..CBR,EFI

 1
44610-16200

EL3#..CBR

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28190

EL3#..CBR,EFI

 1
44633-28190

EL3#..CBR

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-16060

EL3#..CBR

 1
44637-16060

EL3#..CBR,EFI

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

EL3#..CBR,EFI

 1
44645-10080

EL3#..CBR

 1
44673A - BODY, BOOSTER VALVE
44673-28191

EL3#..CBR,EFI

 1
44673-28191

EL3#..CBR

 1
44683A - LOCK, CONNECTOR
44683-28190

EL3#..CBR,EFI

 1
44683-28190

EL3#..CBR

 1
44785 - GASKET, BRAKE BOOSTER
44785-16010

EL3#,NL30

 1
Common parts
90179-08038

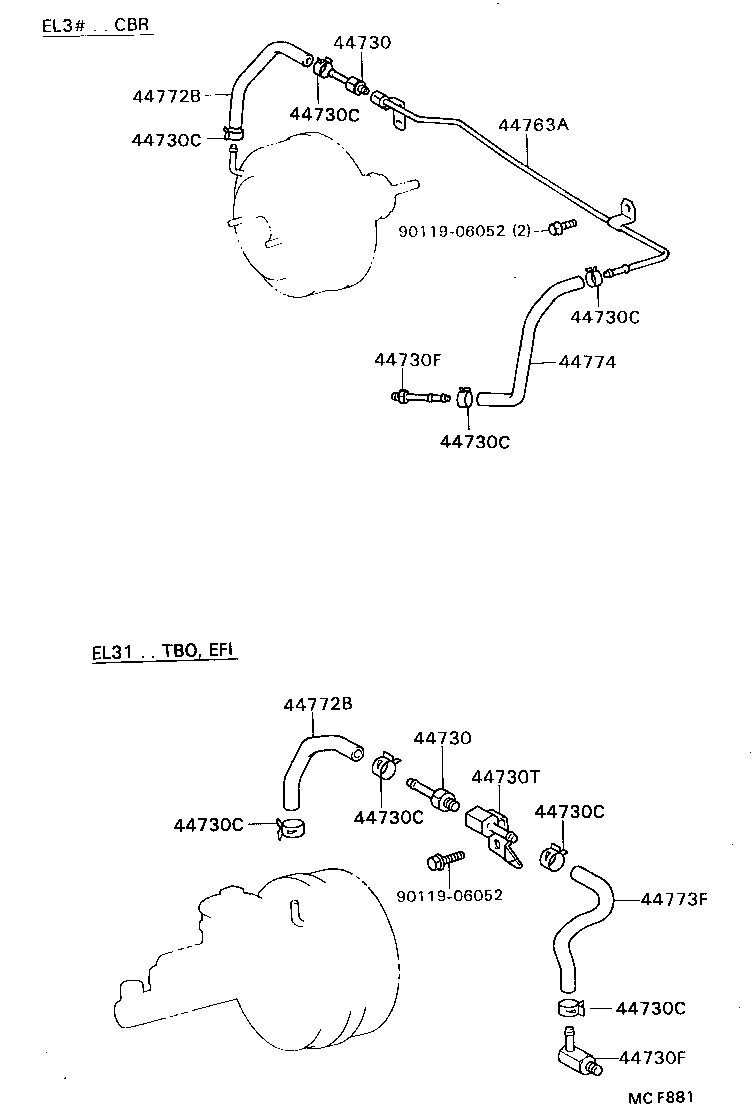

ILLUST NO. 2 OF 2(8805- )EL3#

Click highlighted areas on diagram

diagram 44730 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44730F 44730T 44763A 44772B 44772B 44773F 44774 9011906052 9011906052
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24010

EL3#..CBR

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24010

EL3#..CBR

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EL3#;NL30..5F

 4
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51034

EL3#..CBR

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51034

EL3#..CBR

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-16010

EL3#..CBR

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-16060

NL30..5F;EL3#..CBR,EFI

 1
44772-16060

NL30..5F;EL3#..CBR

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-16060

NL30..5F;EL3#..CBR,EFI

 1
44772-16060

NL30..5F;EL3#..CBR

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-16011

EL3#..CBR

 1
Common parts
90119-06052
