EL30-LHKFS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

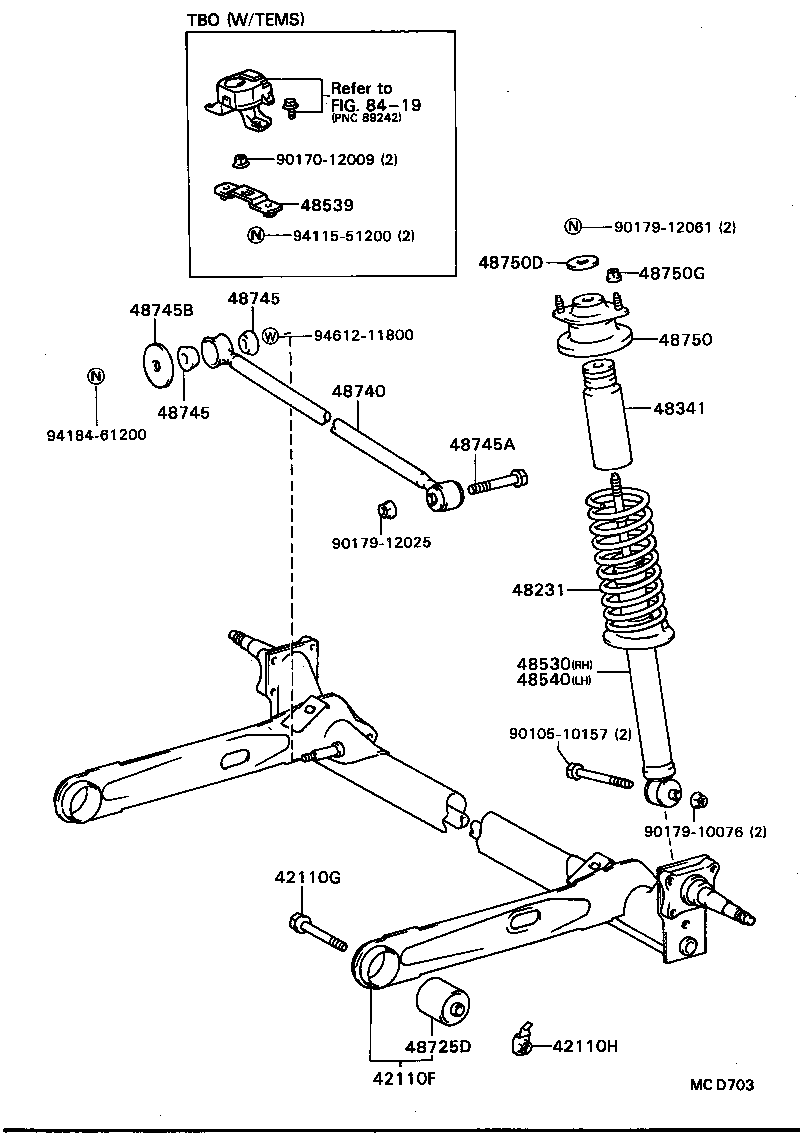

Click highlighted areas on diagram

diagram 42110F 42110G 42110H 48231 48341 48530 48539 48540 48725D 48740 48745 48745 48745A 48745B 48750 48750D 48750G 8419 9010510157 9017012009 9017910076 9017912025 9017912061 9411551200 9418461200 9461211800
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42110-16030

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
42110G - BOLT (FOR REAR AXLE BEAM)
90119-12121

EL3#,NL30

 2
42110H - NUT (FOR REAR AXLE BEAM)
90179-12041

EL3#,NL30

 2
48231 - SPRING, COIL, REAR
48231-16310

EL3#..CUT,EX,GX,SOP,TX,VC,VL,VX

 2
48231-16310

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 2
48341 - BUMPER, REAR SPRING
48341-16040

EL3#,NL30

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-16080

EL3#..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-16080

EL3#..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
48725D - BUSH, REAR SUSPENSION ARM, NO.3
48725-16110

EL3#,NL30

 2
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-16010

EL3#,NL30

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-18010

EL3#,NL30

 2
48745 - BUSH, LATERAL CONTROL ROD
90385-18010

EL3#,NL30

 2
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90105-12070

EL3#,NL30

 1
48745B - WASHER, LATERAL CONTROL ROD CUSHION
90201-12047

EL3#,NL30

 1
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-16040

EL3#,NL30

 2
48750D - RETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90948-02100

EL3#,NL30

 2
48750G - NUT(FOR REAR SUSPENSION SUPPORT)
90179-08111

EL3#,NL30

 4
Common parts
90105-10157
90170-12009
90179-10076
90179-12025
90179-12061
94115-51200
94184-61200
94612-11800
Linked diagrams
8419
